By Form Factor :

Model Number   Technical Specifications
Supermicro UltraServer SYS-1029U-TR4

SYS-1029U-TR4

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 4 Gigabit Ethernet ports
• 10 Hot-swap 2.5" Drive Bays;
   10 SATA3 (2 hybrid ports - 2 NVMe opt.);
   Optional M.2 NVMe and SATA3 ports
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

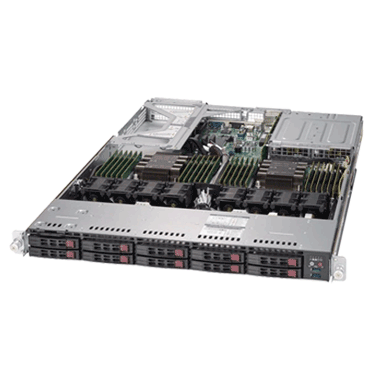

Supermicro UltraServer SYS-1029U-TRT

SYS-1029U-TRT

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2x 10GBase-T Ethernet ports
• 10 Hot-swap 2.5" Drive Bays;
   10 SATA3 (2 hybrid ports - 2 NVMe opt.);
   Optional M.2 NVMe and SATA3 ports
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-2029U-TR4

SYS-2029U-TR4

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 4 1GbE LAN ports via Intel i350
• 24 Hot-swap 2.5" Drive Bays; 14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3),
   Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm PWM fans
• 1000W Redundant Power Supplies Titanium Level (96%)

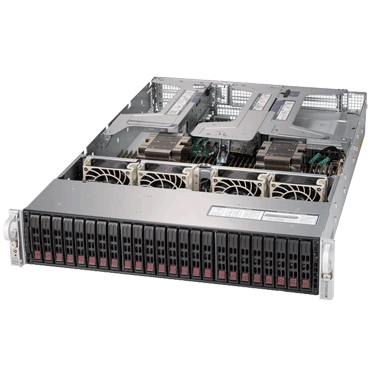

Supermicro UltraServer SYS-2029U-TRT

SYS-2029U-TRT

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 2x 10GBase-T LAN ports via Intel X540
• 24 Hot-swap 2.5" drive bays; 14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3),
   Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm PWM fans
• 1000W Redundant Power Supplies Titanium Level (96%)

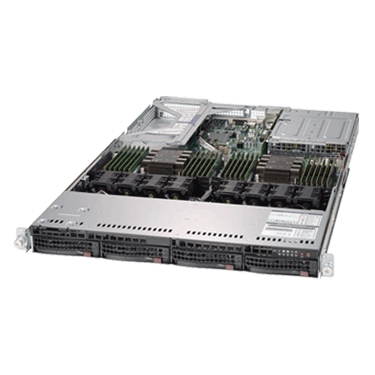

Supermicro UltraServer SYS-6019U-TR4

SYS-6019U-TR4

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 4 Gigabit Ethernet ports
• 4 Hot-swap 3.5" Drive Bays;
   Optional M.2 NVMe and SATA3 ports
• 8 Heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-6019U-TRT

SYS-6019U-TRT

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2x 10GBase-T Ethernet ports
• 4 Hot-swap 3.5" Drive Bays;
   Optional M.2 NVMe and SATA3 ports
• 8 Heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-6029U-TR4

SYS-6029U-TR4

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 4 1GbE LAN ports via Intel i350AM4
• 12 Hot-swap 3.5" drive bays:
   12 SATA (opt. 8 SAS3 + 4 NVMe/SAS3),
   Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm fans
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-6029U-TRT

SYS-6029U-TRT

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 2x 10GBase-T LAN ports via Intel X540
• 12 Hot-swap 3.5" drive bays:
   12 SATA (opt. 8 SAS3 + 4 NVMe/SAS3),
   Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm fans
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-1029U-TR4T

SYS-1029U-TR4T

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 4 10GBase-T Ethernet ports
• 10 Hot-swap 2.5" Drive Bays;
   10 SATA3 (2 hybrid ports - 2 NVMe opt.);
   Optional M.2 NVMe and SATA3 ports
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1029U-TRTP

SYS-1029U-TRTP

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2 10G SFP+ Ethernet ports
• 10 Hot-swap 2.5" Drive Bays;
   10 SATA3 (2 hybrid ports - 2 NVMe opt.);
   Optional M.2 NVMe and SATA3 ports
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

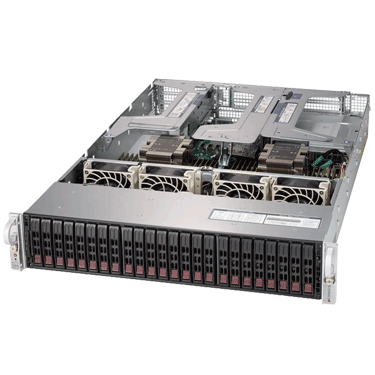

Supermicro UltraServer SYS-2029U-TR4T

SYS-2029U-TR4T

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   4 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP)
• 4x 10GBase-T LAN ports via Intel X540
• 24 Hot-swap 2.5" drive bays; 14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3),
   Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm PWM fans
• 1000W Redundant Power Supplies Titanium Level (96%)

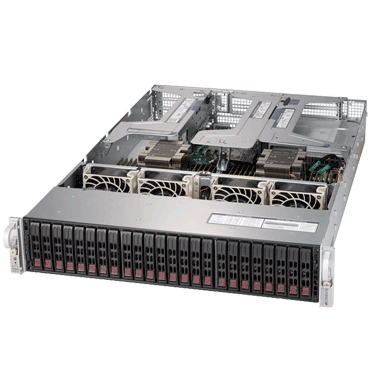

Supermicro UltraServer SYS-2029U-TRTP

SYS-2029U-TRTP

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 2 10G SFP+ Ethernet ports
• 24 Hot-swap 2.5" drive bays; 14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3),
   Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm PWM fans
• 1000W Redundant Power Supplies Titanium Level (96%)

Supermicro UltraServer SYS-6019U-TR4T

SYS-6019U-TR4T

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 4 10GBase-T Ethernet ports
• 4 Hot-swap 3.5" Drive Bays; Optional M.2 NVMe and SATA3 ports
• 8 Heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-6019U-TRTP

SYS-6019U-TRTP

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2 10G SFP+ Ethernet ports
• 4 Hot-swap 3.5" Drive Bays;
   Optional M.2 NVMe and SATA3 ports
• 8 Heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-6029U-TR4T

SYS-6029U-TR4T

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   4 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP)
• 4x 10GBase-T LAN ports via Intel X710-BM1
• 12 Hot-swap 3.5" drive bays:
   12 SATA (opt. 8 SAS3 + 4 NVMe/SAS3), Optional 2 hot-swap 2.5" rear drive bays for SSDs;
   Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm fans
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-6029U-TRTP

SYS-6029U-TRTP

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 2 10G SFP+ Ethernet ports
• 12 Hot-swap 3.5" drive bays:
   12 SATA (opt. 8 SAS3 + 4 NVMe/SAS3),
   Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm fans
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-1029U-TRTP2

SYS-1029U-TRTP2

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2 10G SFP+ and 2 1GbE ports
• 10 Hot-swap 2.5" Drive Bays;
   10 SATA3 (2 hybrid ports - 2 NVMe opt.);
   Optional M.2 NVMe and SATA3 ports
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-6019U-TRTP2

SYS-6019U-TRTP2

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2 10G SFP+ and 2 1GbE ports
• 4 Hot-swap 3.5" Drive Bays;
   Optional M.2 NVMe and SATA3 ports
• 8 Heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

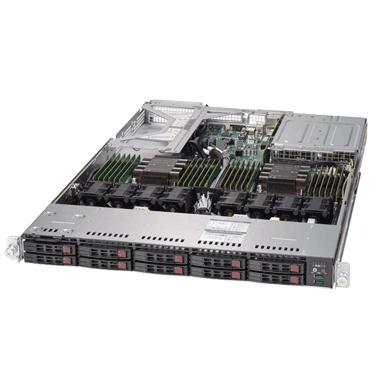

Supermicro UltraServer SYS-1029U-E1CR4

SYS-1029U-E1CR4

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 4 Gigabit Ethernet LAN ports
• 10 Hot-swap 2.5" drive bays:
   10 SAS3/SATA3 ports via Expander and AOC;
   Optional M.2 NVMe and SATA3 ports
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1029U-E1CRT

SYS-1029U-E1CRT

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2x 10GBase-T Ethernet ports
• 10 Hot-swap 2.5" drive bays:
   10 SAS3/SATA3 ports via Expander and AOC;
   Optional M.2 NVMe and SATA3 ports
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1029U-TR25M

SYS-1029U-TR25M

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x16 slot (internal LP)
• 2 25GbE SFP28 Ethernet ports
• 10 Hot-swap 2.5" Drive Bays;
   10 SATA3 (2 hybrid ports - 2 NVMe opt.);
   Optional M.2 NVMe and SATA3 ports
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-2029U-E1CR4

SYS-2029U-E1CR4

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 4 1GbE LAN ports via Intel i350
• 24 Hot-swap 2.5" drive bays:
   24 SAS3 via opt. AOC
   (4 hybrid ports - opt. 4 NVMe), Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
• VGA: Aspeed AST2500
• 4 Heavy duty 8cm PWM fans
• 1000W Redundant Power Supplies Titanium Level (96%)

Supermicro UltraServer SYS-2029U-E1CRT

SYS-2029U-E1CRT

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 2x 10GBase-T LAN ports via Intel X540
• 24 Hot-swap 2.5" drive bays:
   24 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe),
   Optional 2 hot-swap 2.5" rear drive bays for SSDs;
   Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm PWM fans
• 1000W Redundant Power Supplies Titanium Level (96%)

Supermicro UltraServer SYS-2029U-TR25M

SYS-2029U-TR25M

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 2 25GbE SFP28 Ethernet ports
• 24 Hot-swap 2.5" drive bays; 14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3),
   Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 port
• 4 Heavy duty 8cm PWM fans
• 1000W Redundant Power Supplies Titanium Level (96%)

Supermicro UltraServer SYS-2029UZ-TR4+

SYS-2029UZ-TR4+

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 (FH, 10.5"L)
   5 PCI-E 3.0 x8 (FH, 10.5"L)
   1 PCI-E 3.0 x8 (LP)
   1 PCI-E 3.0 x8 (internal LP)
• 4 Gigabit Ethernet ports
• 24 Hot-swap 2.5" drive bays;
   Optional SAS3 and NVMe support,
   Optional 2 hot-swap 2.5" rear drive bays for SSDs;
   Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm fans
• 1600W Redundant Power Supplies Titanium Level (96%)

Supermicro UltraServer SYS-6019U-TN4RT

SYS-6019U-TN4RT

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2x 10GBase-T Ethernet ports
• 4 Hot-swap 3.5" drive bays:
   4 NVMe/SATA3 hybrid ports;
   2 internal M.2 (1 SATA3, 1 NVMe);
   1 M.2 NVMe port, Optional extra M.2 NVMe and SATA3 ports
• 8 Heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-6019U-TR25M

SYS-6019U-TR25M

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x16 slot (internal LP)
• 2 25GbE SFP28 Ethernet ports
• 4 Hot-swap 3.5" Drive Bays; Optional M.2 NVMe and SATA3 ports
• 8 Heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-6029U-E1CR4

SYS-6029U-E1CR4

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 4 1GbE LAN ports via Intel i350
• 12 Hot-swap 3.5" drive bays:
   12 SAS3 via opt. AOC
   (4 hybrid ports - opt. 4 NVMe), Optional 2 hot-swap 2.5" rear drive bays for SSDs;
   Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm PWM fans
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-6029U-E1CRT

SYS-6029U-E1CRT

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 2x 10GBase-T LAN ports via Intel X540
• 12 Hot-swap 3.5" drive bays:
   12 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe),
   Optional 2 hot-swap 2.5" rear drive bays for SSDs;
   Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm PWM fans
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-6029U-TR25M

SYS-6029U-TR25M

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 2 25GbE SFP28 Ethernet ports
• 12 Hot-swap 3.5" drive bays:
   12 SATA (opt. 8 SAS3 + 4 NVMe/SAS3),
   Optional 2 hot-swap 2.5" rear drive bays for SSDs;
   Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm fans
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-6029UZ-TR4+

SYS-6029UZ-TR4+

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 (FH, 10.5"L)
   5 PCI-E 3.0 x8 (FH, 10.5"L)
   1 PCI-E 3.0 x8 (LP)
   1 PCI-E 3.0 x8 (internal LP)
• 4 Gigabit Ethernet ports
• 12 Hot-swap 3.5" drive bays;
   Optional SAS3 and NVMe support,
   Optional 2 hot-swap 2.5" rear drive bays for SSDs;
   Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm fans
• 1600W Redundant Power Supplies Titanium Level (96%)

Supermicro UltraServer SYS-1029U-E1CR4T

SYS-1029U-E1CR4T

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 4 10GBase-T Ethernet ports
• 10 Hot-swap 2.5" drive bays:
   10 SAS3/SATA3 ports via Expander and AOC; Optional M.2 NVMe and SATA3 ports
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer XXXXX

SYS-1029U-E1CRTP

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2 10G SFP+ Ethernet ports
• 10 Hot-swap 2.5" drive bays:
   10 SAS3/SATA3 ports via Expander and AOC;
   Optional M.2 NVMe and SATA3 ports
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1029U-TN10RT

SYS-1029U-TN10RT

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 (FH, 10.5"L)
• 2x 10GBase-T LAN ports
• 10 Hot-swap 2.5" Drive Bays; 10 NVMe (4 hybrid ports - optional SAS3 via AOC); 2 internal M.2 (1 SATA3, 1 NVMe); 1 M.2 NVMe port, Optional extra M.2 NVMe and SATA3 ports
• 8 Heavy duty fans w/ optimal fan speed control
• 1000W Redundant Power Supplies Titanium Level (96%)

Supermicro UltraServer SYS-1029U-TN12RV

SYS-1029U-TN12RV

X11(MISSING LINK)

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 (FH, 10.5"L),
   1 PCI-E 3.0 x8 (LP), 1 internal PCI-E 3.0 x16 (for SMCI storage controller)
• Flexible networking options, up to 25GbE via Ultra Riser card
• 12 Hot-swap 2.5" NVMe/SATA3 drive bays
• 8 Heavy duty fans w/ optimal fan speed control
• 1200W Redundant Power Supplies Titanium Level (96%)

Supermicro UltraServer SYS-2029U-E1CR4T

SYS-2029U-E1CR4T

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   4 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP)
• 4x 10GBase-T LAN ports via Intel X710
• 24 Hot-swap 2.5" drive bays:
   24 SAS3 via opt. AOC
   (4 hybrid ports - opt. 4 NVMe),
   Optional 2 hot-swap 2.5" rear drive bays for SSDs;
   Optional M.2 NVMe and SATA3 ports
• VGA: Aspeed AST2500
• 4 Heavy duty 8cm PWM fans
• 1000W Redundant Power Supplies Titanium Level (96%)

Supermicro UltraServer SYS-2029U-E1CRTP

SYS-2029U-E1CRTP

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 2 10G SFP+ Ethernet ports
• 24 Hot-swap 2.5" drive bays:
   24 SAS3 via opt. AOC
   (4 hybrid ports - opt. 4 NVMe), Optional 2 hot-swap 2.5" rear drive bays for SSDs;
   Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm PWM fans
• 1000W Redundant Power Supplies Titanium Level (96%)

Supermicro UltraServer SYS-6019U-TN4R4T

SYS-6019U-TN4R4T

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 4 10GBase-T Ethernet ports
• 4 Hot-swap 3.5" drive bays:
   4 NVMe/SATA3 hybrid ports;
   2 internal M.2 (1 SATA3, 1 NVMe);
   1 M.2 NVMe port, Optional extra
   M.2 NVMe and SATA3 ports
• 8 Heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-6029U-E1CR4T

SYS-6029U-E1CR4T

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   4 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP)
• 4x 10GBase-T LAN ports via Intel X710
• 12 Hot-swap 3.5" drive bays: 12 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe), Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm PWM fans
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-6029U-E1CRTP

SYS-6029U-E1CRTP

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 2 10G SFP+ Ethernet ports
• 12 Hot-swap 3.5" drive bays:
   12 SAS3 via opt. AOC
   (4 hybrid ports - opt. 4 NVMe), Optional 2 hot-swap 2.5" rear drive bays for SSDs;
   Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm PWM fans
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-1029U-E1CR25M

SYS-1029U-E1CR25M

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x16 slot (internal LP)
• 2 25GbE SFP28 Ethernet ports
• 10 Hot-swap 2.5" drive bays:
   10 SAS3/SATA3 ports via
   Expander and AOC; Optional M.2 NVMe and SATA3 ports
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1029U-E1CRTP2

SYS-1029U-E1CRTP2

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2 10G SFP+ and 2 1GbE ports
• 10 Hot-swap 2.5" drive bays:
   10 SAS3/SATA3 ports via
   Expander and AOC;
   Optional M.2 NVMe and SATA3 ports
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-2029U-E1CR25M

SYS-2029U-E1CR25M

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 2 25GbE SFP28 Ethernet ports
• 24 Hot-swap 2.5" drive bays:
   24 SAS3 via opt. AOC
   (4 hybrid ports - opt. 4 NVMe), Optional 2 hot-swap 2.5" rear drive bays for SSDs;
   Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm PWM fans
• 1000W Redundant Power Supplies Titanium Level (96%)

Supermicro UltraServer SYS-2029U-TN24R4T

SYS-2029U-TN24R4T

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP)
• 4 10GBase-T LAN ports with Intel X550
• 24 Hot-swap 2.5" drive bays;
   24 NVMe (4 hybrid ports - SAS3 via opt. AOC), 2 rear Hot-swap 2.5" drive bays; 2 internal M.2 (1 SATA3, 1 NVMe); 1 M.2 NVMe port, Optional extra M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm PWM fans
• 1600W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-6029U-E1CR25M

SYS-6029U-E1CR25M

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   5 PCI-E 3.0 x8 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 slot (LP),
   1 PCI-E 3.0 x8 slot (internal LP)
• 2 25GbE SFP28 Ethernet ports
• 12 Hot-swap 3.5" drive bays:
   12 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe),
   Optional 2 hot-swap 2.5" rear drive bays for SSDs;
   Optional M.2 NVMe and SATA3 ports
• 4 Heavy duty 8cm PWM fans
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-1029UX-LL1-C16

SYS-1029UX-LL1-C16

X11

• Dual Socket P (LGA 3647) support (Intel® Xeon® Gold 6244 included)
• 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, (12x 16GB DDR4-2933MHz included)
• 2 PCI-E 3.0 x16 slots (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
• 4 Gigabit Ethernet ports
• 8 Hot-swap 2.5" SAS3 drive Bays;
   2 Hot-swap NVMe bays
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1029UX-LL1-S16

SYS-1029UX-LL1-S16

X11

• Dual Socket P (LGA 3647) support (Intel® Xeon® Gold 6144 included)
• Up to 2TB 3DS ECC LRDIMM, up to DDR4-2666MHz; 16 DIMM slots (12x 16GB DDR4-2666MHz included)
• 2 PCI-E 3.0 x16 slots (FH, 10.5"/10" L),
   1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
• 4 Gigabit Ethernet ports
• 8 Hot-swap 2.5" SAS3 drive Bays;
   2 Hot-swap NVMe bays
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1029UX-LL2-C16

SYS-1029UX-LL2-C16

X11

• Dual Socket P (LGA 3647) support (Intel® Xeon® Gold 6246 included)
• 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, (12x 16GB DDR4-2933MHz included)
• 2 PCI-E 3.0 x16 slots (FH, 10.5"/10" L),
   1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
• 4 Gigabit Ethernet ports
• 8 Hot-swap 2.5" SAS3 drive Bays; 2 Hot-swap NVMe bays
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1029UX-LL2-S16

SYS-1029UX-LL2-S16

X11

• Dual Socket P (LGA 3647) support (Intel® Xeon® Gold 6146 included)
• Up to 2TB 3DS ECC LRDIMM, up to DDR4-2666MHz; 16 DIMM slots (12x 16GB DDR4-2666MHz included)
• 2 PCI-E 3.0 x16 slots (FH, 10.5"/10" L),
   1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
• 4 Gigabit Ethernet ports
• 8 Hot-swap 2.5" SAS3 drive Bays; 2 Hot-swap NVMe bays
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1029UX-LL3-C16

SYS-1029UX-LL3-C16

X11

• Dual Socket P (LGA 3647) support (Intel® Xeon® Gold 6254 included)
• 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, (12x 16GB DDR4-2933MHz included)
• 2 PCI-E 3.0 x16 slots (FH, 10.5"/10" L),
   1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
• 4 Gigabit Ethernet ports
• 8 Hot-swap 2.5" SAS3 drive Bays;
   2 Hot-swap NVMe bays
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1029UX-LL3-S16

SYS-1029UX-LL3-S16

X11

• Dual Socket P (LGA 3647) support (Intel® Xeon® Gold 6154 included)
• Up to 2TB 3DS ECC LRDIMM, up to DDR4-2666MHz; 16 DIMM slots (12x 16GB DDR4-2666MHz included)
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
• 4 Gigabit Ethernet ports
• 8 Hot-swap 2.5" SAS3 drive bays; 2 Hot-swap NVMe bays
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1029UZ-TN20R25M

SYS-1029UZ-TN20R25M

X11

• Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
• 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
• Up to 2 PCI-E 3.0 x8 slots (FH, FL);
   For 20 NVMe configuration, only 1 PCI-E 3.0 x8 is available
   For 18 NVMe configuration, 2 PCI-E 3.0 x8 will be available
• 2x 25G SFP28 Ethernet ports
• 20 Hot-swap 2.5" 7mm drive bays; up to 20 NVMe (CPU1: 10 NVMe, CPU2: 8 NVMe + 2 NVMe/ SATA/SAS hybrid); 1 M.2 NVMe port, Optional extra M.2 NVMe and SATA3 ports
• 8 Heavy duty fans w/ optimal fan speed control; 2 air shrouds
• 1600W Redundant Power Supplies Titanium Level (96%)

Supermicro UltraServer SYS-1028U-TR4+

SYS-1028U-TR4+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 2x PCI-E 3.0 x16 slots (FH, 10.5" L), 2x PCI-E 3.0 x8 slots (LP, 1 internal)
• 4x Gigabit Ethernet ports
• 10x Hot-swap 2.5" Drive Bays:
   10x SATA3 ports by default; optional
   8x SAS3 ports
• 4x heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1028U-TRT+

SYS-1028U-TRT+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 2x PCI-E 3.0 x16 slots (FH, 10.5" L),
   2x PCI-E 3.0 x8 slots (LP, 1 internal)
• 2x 10GBase-T ports
• 10x Hot-swap 2.5" Drive Bays:
   10x SATA3 ports by default; optional
   8x SAS3 ports
• 4x heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-2028U-TR4+

SYS-2028U-TR4+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   7 PCI-E 3.0 x8 slots (5 FH, 10.5" L, 1 LP, 1 Internal LP)
• 4 Gigabit Ethernet ports
• 24 Hot-swap 2.5" Drive Bays: 10 SATA3 ports by default; Optional drive support: 24 SAS3; Optional 2 hot-swap 2.5" rear drive bays for SSDs
• 4 heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-2028U-TRT+

SYS-2028U-TRT+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   7 PCI-E 3.0 x8 slots (5 FH, 10.5" L, 1 LP, 1 Internal LP)
• 2x 10GBase-T ports
• 24 Hot-swap 2.5" Drive Bays:
   10 SATA3 ports by default;
   Optional drive support: 24 SAS3;
   Optional 2 hot-swap 2.5" rear drive bays for SSDs
• 4 heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-6018U-TR4+

SYS-6018U-TR4+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 2x PCI-E 3.0 x16 slots (FH, 10.5" L),
   2x PCI-E 3.0 x8 slots (LP, 1 internal)
• 4x Gigabit Ethernet ports
• 4x 3.5" Hot-swap Drive Bays
• 4x heavy duty fans w/ optimal fan speed control
• I/O ports: 2x SuperDOM, 1x VGA, 1x Serial, 5x USB 3.0
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-6018U-TRT+

SYS-6018U-TRT+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 2x PCI-E 3.0 x16 slots (FH, 10.5" L),
   2x PCI-E 3.0 x8 slots (LP, 1 internal)
• 2x 10GBase-T ports
• 4x 3.5" Hot-swap Drive Bays
• 4x heavy duty fans w/ optimal fan speed control
• I/O ports: 2x SuperDOM, 1x VGA, 1x Serial, 5x USB 3.0
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-6028U-TR4+

SYS-6028U-TR4+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   7 PCI-E 3.0 x8 slots (5 FH, 10.5" L,
   1 LP, 1 Internal LP)
• 4 Gigabit Ethernet ports
• 12 Hot-swap 3.5" Drive Bays:
   10 SATA3 ports by default;
   Optional drive support: 12 SAS3;
   Optional 2 hot-swap 2.5" rear drive bays for SSDs
• 4x heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-6028U-TRT+

SYS-6028U-TRT+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   7 PCI-E 3.0 x8 slots (5 FH, 10.5" L,
   1 LP, 1 Internal LP)
• 2x 10GBase-T ports
• 12 Hot-swap 3.5" Drive Bays:
   10 SATA3 ports by default;
   Optional drive support: 12 SAS3;
   Optional 2 hot-swap 2.5" rear drive bays for SSDs
• 4 heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer 1028U-TR4T+

SYS-1028U-TR4T+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 2x PCI-E 3.0 x16 slots (FH, 10.5" L),
   2x PCI-E 3.0 x8 slots (LP, 1 internal)
• 4x 10GBase-T ports
• 10x Hot-swap 2.5" Drive Bays:
   10x SATA3 ports by default;
   optional 8x SAS3 ports
• 4x heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-2028U-TR4T+

SYS-2028U-TR4T+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   6 PCI-E 3.0 x8 slots (4 FH, 10.5" L,
   1 LP, 1 Internal LP)
• 4x 10GBase-T ports
• 24 Hot-swap 2.5" Drive Bays: 10 SATA3 ports by default; Optional drive support: 24 SAS3; Optional 2 hot-swap 2.5" rear drive bays for SSDs
• 4 heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-2028U-TRTP+

SYS-2028U-TRTP+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   7 PCI-E 3.0 x8 slots (5 FH, 10.5" L,
   1 LP, 1 Internal LP)
• 2x 10G SFP+ ports
• 24 Hot-swap 2.5" Drive Bays:
   10 SATA3 ports by default;
   Optional drive support: 24 SAS3;
   Optional 2 hot-swap 2.5" rear drive bays for SSDs
• 4 heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-6018U-TR4T+

SYS-6018U-TR4T+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 2x PCI-E 3.0 x16 slots (FH, 10.5" L),
   2x PCI-E 3.0 x8 slots (LP, 1 internal)
• 4x 10GBase-T ports
• 4x 3.5" Hot-swap Drive Bays
• 4x heavy duty fans w/ optimal fan speed control
• I/O ports: 2x SuperDOM, 1x VGA, 1x Serial, 5x USB 3.0
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-6018U-TRTP+

SYS-6018U-TRTP+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 2x PCI-E 3.0 x16 slots (FH, 10.5" L), 2x PCI-E 3.0 x8 slots (LP, 1 internal)
• 2x 10G SFP+ ports
• 4x 3.5" Hot-swap Drive Bays
• 4x heavy duty fans w/ optimal fan speed control
• I/O ports: 2x SuperDOM, 1x VGA, 1x Serial, 5x USB 3.0
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-6028U-TR4T+

SYS-6028U-TR4T+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   6 PCI-E 3.0 x8 slots (4 FH, 10.5" L,
   1 LP, 1 Internal LP)
• 4x 10GBase-T ports
• 12 Hot-swap 3.5" Drive Bays:
   10 SATA3 ports by default;
   Optional drive support: 12 SAS3;
   Optional 2 hot-swap 2.5" rear drive bays for SSDs
• 4 heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-6028U-TRTP+

SYS-6028U-TRTP+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
   7 PCI-E 3.0 x8 slots (5 FH, 10.5" L,
   1 LP, 1 Internal LP)
• 2 10G SFP+ ports
• 12 Hot-swap 3.5" Drive Bays:
   10 SATA3 ports by default;
   Optional 12 SAS3 support;
   Optional 2 hot-swap 2.5" rear drive bays for SSDs
• 4 heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-6028UX-TR4

SYS-6028UX-TR4

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
• 3x PCI-E 3.0 x16 slot (FH, 10.5" L),
   3x PCI-E 3.0 x8 slots (1 in x16 FH 10.5" L,
   1 LP, 1 Internal LP)
• 4x Gigabit Ethernet ports
• 12x Hot-swap 3.5" Drive Bays: SATA3 default, 12x SAS3 opt. 4x NVMe opt. via AOC
• 4x heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-1028U-TNRT+

SYS-1028U-TNRT+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 2x PCI-E 3.0 x16 slots (FH, 10.5" L),
   2x PCI-E 3.0 x8 slots (LP, 1 internal)
• 2x 10GBase-T ports
• 10x Hot-swap 2.5" Drive Bays:
   Default 8x SATA3 ports and 2x NVMe/SATA3 hybrid ports; Optional 8x SAS3 ports via AOC
• 5x heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-2028U-TNRT+

SYS-2028U-TNRT+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• 7 PCI-E 3.0 x8 slots (5 FH, 10.5" L, 1 LP, 1 Internal LP)
• 2x 10GBase-T ports
• 24 Hot-swap 2.5" Drive Bays: Default 8 SATA3 ports and 4 NVMe ports;
   Optional 24 SAS3 ports via AOC;
   Optional 2 hot-swap 2.5" rear drive bays for SSDs
• 4 heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-1028U-E1CR4+

SYS-1028U-E1CR4+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 2x PCI-E 3.0 x16 slots (FH, 10.5" L), 2x PCI-E 3.0 x8 slots (LP, 1 internal)
• 4x Gigabit Ethernet LAN ports
• 10x Hot-swap 2.5" drive bays:
   10x SAS3/SATA3 ports via Expander and AOC:
   AOC-S3108L-H8iR-16DD,
   AOC-S3108L-H8iR,
   AOC-S3008L-L8e,
   AOC-S3008L-L8i
• 5x heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1028U-TNR4T+

SYS-1028U-TNR4T+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 2x PCI-E 3.0 x16 slots (FH, 10.5" L), 2x PCI-E 3.0 x8 slots (LP, 1 internal)
• 4x 10GBase-T ports
• 10x Hot-swap 2.5" Drive Bays: Default 8x SATA3 ports and 2x NVMe/SATA3 hybrid ports; Optional 8x SAS3 ports via AOC
• 5x heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1028U-TNRTP+

SYS-1028U-TNRTP+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 2x PCI-E 3.0 x16 slots (FH, 10.5" L),
   2x PCI-E 3.0 x8 slots (LP, 1 internal)
• 2x 10G SFP+ ports
• 10x Hot-swap 2.5" Drive Bays: Default 8x SATA3 ports and 2x NVMe/SATA3 hybrid ports; Optional 8x SAS3 ports via AOC
• 5x heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-2028U-TNR4T+

SYS-2028U-TNR4T+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• 6 PCI-E 3.0 x8 slots (4 FH, 10.5" L, 1 LP, 1 Internal LP)
• 4x 10GBase-T ports
• 24 Hot-swap 2.5" Drive Bays: Default 8 SATA3 ports and 4 NVMe ports;
   Optional 24 SAS3 ports via AOC;
   Optional 2 hot-swap 2.5" rear drive bays for SSDs
• 4 heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-1028U-E1CRTP+

SYS-1028U-E1CRTP+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 2x PCI-E 3.0 x16 slots (FH, 10.5" L),
   2x PCI-E 3.0 x8 slots (LP, 1 internal)
• 2x 10G SFP+ and 2x GbE LAN ports
• 10x Hot-swap 2.5" drive bays:
   10x SAS3/SATA3 ports via Expander and AOC:
   AOC-S3108L-H8iR-16DD,
   AOC-S3108L-H8iR,
   AOC-S3008L-L8e,
   AOC-S3008L-L8i
• 6x heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1028U-TN10RT+

SYS-1028U-TN10RT+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 3 PCI-E 3.0 x8 slots (2 FH 10.5" L, 1 LP)
• 2x 10GBase-T ports
• 10 2.5" Hot-swap Drive Bays: 6 NVMe ports (NVMe from CPU 1); 4 NVMe/SAS3 hybrid ports for optional SAS3/SATA3** (NVMe from CPU 2)
• 8 heavy duty fans w/ optimal fan speed control
• 1000W Redundant Power Supplies Titanium Level (96%)

Supermicro UltraServer SYS-1028UX-CR-LL1

SYS-1028UX-CR-LL1

X10

• Dual Intel® Xeon® processor E5-2643 v3 (Haswell)
• Default: 8x 8GB 2133MHz DDR4, up to DDR4- 2400†MHz ; 16 DIMM slots
• Expansion slots via riser card: 2 PCI-E 3.0 x16, Full-height, 10.5" Length
   1 PCI-E 3.0 x8, Low-profile
   1 PCI-E 3.0 x8 SAS3 integrated
• 4 Gigabit Ethernet LAN ports
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 10 Hot-swap 2.5" Drive Bays:
   8 SAS3 (Broadcom 3108), 2 SATA3, 2 NVMe ports support via optional Ultra Riser card
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1028UX-CR-LL2

SYS-1028UX-CR-LL2

X10

• Dual Intel® Xeon® processor E5-2687W v3 (Haswell)
• Default: 8x 8GB 2133MHz DDR4, up to DDR4- 2400†MHz ; 16 DIMM slots
• Expansion slots via riser card:
   2 PCI-E 3.0 x16, Full-height, 10.5" Length
   1 PCI-E 3.0 x8, Low-profile
   1 PCI-E 3.0 x8 SAS3 integrated
• 4 Gigabit Ethernet LAN ports
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 10 Hot-swap 2.5" Drive Bays: 8 SAS3 (Broadcom 3108), 2 SATA3, 2 NVMe ports support via optional Ultra Riser card
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1028UX-LL1-B8

SYS-1028UX-LL1-B8

X10

• Dual Intel® Xeon® processor E5-2643 v4
• 8x 8GB DDR4-2400MHz (Default), up to DDR4- 2400†MHz ; 16 DIMM slots
• Expansion slots via riser card:
   2 PCI-E 3.0 x16, Full-height, 10.5" Length
   1 PCI-E 3.0 x8, Low-profile
   1 PCI-E 3.0 x8 SAS3 integrated
• 4 Gigabit Ethernet LAN ports
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 10 Hot-swap 2.5" Drive Bays: 8 SAS3 (Broadcom 3108), 2 SATA3, 2 NVMe ports support via optional AOC-URN2-I2XT (with 2x 10GBase-T ports)
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1028UX-LL2-B8

SYS-1028UX-LL2-B8

X10

• Dual Intel® Xeon® processor E5-2687W v4
• 8x 8GB DDR4-2400MHz (Default), up to DDR4- 2400†MHz ; 16 DIMM slots
• Expansion slots via riser card: 2 PCI-E 3.0 x16, Full-height, 10.5" Length
   1 PCI-E 3.0 x8, Low-profile
   1 PCI-E 3.0 x8 SAS3 integrated
• 4 Gigabit Ethernet LAN ports
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 10 Hot-swap 2.5" Drive Bays:
   8 SAS3 (Broadcom 3108), 2 SATA3,
   2 NVMe ports support via optional AOC-URN2-I2XT (with 2x 10GBase-T ports)
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-1028UX-LL3-B8

SYS-1028UX-LL3-B8

X10

• Dual Intel® Xeon® processor E5-2689 v4 (Broadwell)
• 8x 8GB DDR4-2400MHz (Default), up to DDR4- 2400†MHz ; 16 DIMM slots
• Expansion slots via riser card:
   2 PCI-E 3.0 x16, Full-height, 10.5" Length
   1 PCI-E 3.0 x8, Low-profile
   1 PCI-E 3.0 x8 SAS3 integrated
• 4 Gigabit Ethernet LAN ports
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 10 Hot-swap 2.5" Drive Bays:
   8 SAS3 (Broadcom 3108), 2 SATA3,
   2 NVMe ports support via optional AOC-URN2-I2XT (with 2x 10GBase-T ports)
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Supermicro UltraServer SYS-2028U-E1CNRT+

SYS-2028U-E1CNRT+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• Up to 7 PCI-E 3.0 x8 slots (up to 5 FH, 10.5" L, 1 LP, 1 Internal LP)
• 2x 10GBase-T ports
• 24 Hot-swap 2.5" Drive Bays: Default 4 NVMe ports; 24 SAS3 ports via Expander and AOC: AOC-S3108L-H8iR, AOC-S3008L-L8e, AOC-S3008L-L8i; Optional 2 hot-swap 2.5" rear drive bays for SSDs
• 4 heavy duty fans w/ optimal fan speed control; 1 air shroud
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-6028U-E1CNRT+

SYS-6028U-E1CNRT+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• Up to 7 PCI-E 3.0 x8 slots (up to 5 FH, 10.5" L, 1 LP, 1 Internal LP)
• 2x 10GBase-T ports
• 12 Hot-swap 3.5" Drive Bays: Default 4 NVMe ports;
   12 SAS3 ports via Expander and AOC:
   AOC-S3108L-H8iR-16DD,
   AOC-S3108L-H8iR,
   AOC-S3008L-L8e,
   AOC-S3008L-L8i;
   Optional 2 hot-swap 2.5" rear drive bays for SSDs
• 4 heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-2028U-E1CNR4T+

SYS-2028U-E1CNR4T+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• 6 PCI-E 3.0 x8 slots (4 FH, 10.5" L, 1 LP, 1 Internal LP)
• 4x 10GBase-T ports
• 24 Hot-swap 2.5" Drive Bays:
   Default 4 NVMe ports;
   24 SAS3 ports via Expander and AOC:
   AOC-S3108L-H8iR,
   AOC-S3008L-L8e,
   AOC-S3008L-L8i;
   Optional 2 hot-swap 2.5" rear drive bays for SSDs
• 4 heavy duty fans w/ optimal fan speed control; 1 air shroud
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-2028U-TN24R4T+

SYS-2028U-TN24R4T+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 2x PCI-E 3.0 x16 (2x FH, 10.5" L),
   1x PCI-E 3.0 x8 (LP) slots
• 4x 10GBase-T ports
• 24x NVMe Hot-swap 2.5" drive bays (4 Hybrid ports - optional SAS3 supported via AOC); 2x rear SATA3 Hot-swap 2.5" drive bays
• 4x heavy duty fans w/ optimal fan speed control
• 1600W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer SYS-6028U-E1CNR4T+

SYS-6028U-E1CNR4T+

X10

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots
• 6 PCI-E 3.0 x8 slots (4 FH, 10.5" L, 1 LP, 1 Internal LP)
• 4x 10GBase-T ports
• 12 Hot-swap 3.5" Drive Bays: Default 4 NVMe ports; 12 SAS3 ports via Expander and AOC: AOC-S3108L-H8iR-16DD, AOC-S3108L-H8iR, AOC-S3008L-L8e, AOC-S3008L-L8i; Optional 2 hot-swap 2.5" rear drive bays for SSDs
• 4 heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Supermicro UltraServer AS -1023US-TR4

AS -1023US-TR4

H11

• Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
• 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors) 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
• Expansion slots:
   2 PCI-E x16 (FH / 9.5"L) slots
   2 PCI-E x8 slots (1LP, 1 internal LP)
• Integrated IPMI 2.0 + KVM with dedicated LAN
   Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
• Quad Gigabit LAN ports via Intel i350AM4
• Drive Bays:
   4 hot-swap 3.5" SATA3 by default
   or 4 NVMe (optional supported)
   or 4 SAS3 ports  (SAS Add-on card is optional)
• 1000W Redundant Power Supplies Titanium Level (96%+) (Full redundancy based on configuration and application load)

Supermicro UltraServer AS-2023US-TR4

AS -2023US-TR4

H11

• Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
• 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors) 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
• Expansion slots:  
   1 PCI-E 3.0 x16 slot (FH, 10.5" L)  
   5 PCI-E 3.0 x8 slots (FH, 9.5" L)  
   1 PCI-E 3.0 x8 slot (LP)  
   1 PCI-E 3.0 x8 (internal LP)
• Integrated IPMI 2.0 + KVM with dedicated LAN
   Software Out of Band License  key (SFT-OOB-LIC) included  for OOB BIOS management
• Quad Gigabit LAN ports via Intel i350AM4
• 12 hot-swap 3.5" Drive Bays:
   12 SATA3 by default  
   or 8 SATA3 + NVMe (optional supported)  
   or 12 SAS3 (SAS Add-on card is optional)
• 1600W Redundant Power Supplies Titanium Level (96%+) (Full redundancy based on configuration and application load)

Supermicro UltraServer AS-1123US-TN10RT

AS -1123US-TN10RT

H11

• Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
• 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors) 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
• Expansion slots:
   1 PCI-E 3.0 x16 (FH, 9.5"L) slot,
   1 PCI-E 3.0 x8 (LP) slot
• Integrated IPMI 2.0 + KVM with dedicated LAN
   Software Out of Band License key (SFT-OOB-LIC) included  for OOB BIOS management
• 2x 10GBase-T LAN ports via Intel® X540
• Drive Bays: 10 hot-swap 2.5" U.2 NVMe drive bays
• 1000W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)

Supermicro UltraServer AS -2123US-TN24R25M

AS -2123US-TN24R25M

H11

• Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
• 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors) 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
• Integrated IPMI 2.0 + KVM with dedicated LAN
   Software Out of Band License key (SFT-OOB-LIC) included for   OOB BIOS management
• Dual 25G SFP28 LAN ports
• Drive Bays: 24 hot-swap 2.5" U.2 NVMe drive bays
• 1600W Redundant Power Supplies Titanium Level (96%)
   (Full redundancy based on configuration and application load)
