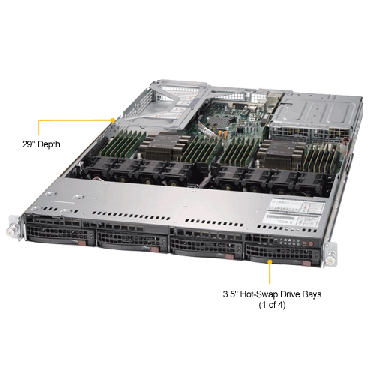

  • Supermicro 1U Rackmount Server SYS-6019U-TRT-TopAngle
  • Supermicro 1U Rackmount Server SYS-6019U-TRT-TopView
  • Supermicro 1U Rackmount Server SYS-6019U-TRT -FrontView

Supermicro 1U Rackmount Server SYS-6019U-TRT Scalable Processors

Call for price.
SKU:SYS-6019U-TRT

Quick Overview:

Key Features:
• Virtualization | Cloud Computing | High End Enterprise Server
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
  2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2x 10GBase-T Ethernet ports
• 4 Hot-swap 3.5" Drive Bays
• 8x heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)


Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 4 DIMM and 4 NVMe). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro SuperServer SYS-6019U-TRT
Product SKU
• SuperServer 6019U-TRT (Black)
Motherboard
       Super X11DPU
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity • 2 10GBase-T ports via AOC-UR-I2XT (Intel® X540)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics • ASPEED AST2500 BMC
Input/Output
SATA

• 4 SATA3 (6Gbps) ports

LAN • 2 RJ45 10GBase-T Ethernet ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 3 USB 3.0 ports (2 rear, 1 Type A)
Video • 2 VGA ports (1 rear, 1 onboard)
Serial Port • 1 Serial header
DOM • 2 SATA DOM (Disk on Module) support with embedded power
System BIOS
Bios Type • AMI 32Mb SPI Flash ROM
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
Power Configuration • ACPI Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
Fan • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 1U Rackmount
Model CSE-819UTQ-R751-T
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 29" (737mm)
Gross Weight • 41 lbs (18.6 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Expansion Slots
PCI-Express • 2 PCI-E 3.0 x16 (Full-height, 10.5" L)
• 2 PCI-E 3.0 x8 (1 LP, 1 internal LP)

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot Swap • 4 Hot-swap 3.5" drive bays
• 4 SATA3 (optional SAS3 via AOC)
System Cooling
Fans • 8 Heavy duty fans with optimal fan speed control
Air Shroud • 1 Air Shroud
Power Supply
  750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
AC Input • 100-127Vac, 50-60Hz
• 200-240Vac, 50-60Hz
+12V • Max: 62.5A & Min: 0A (100Vac-127Vac)
• Max: 62.5A & Min: 0A (200Vac-240Vac)
12V SB • Max: 2.1A
• Min: 0A
Certification  • 80 Plus Platinum Level
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.











• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
