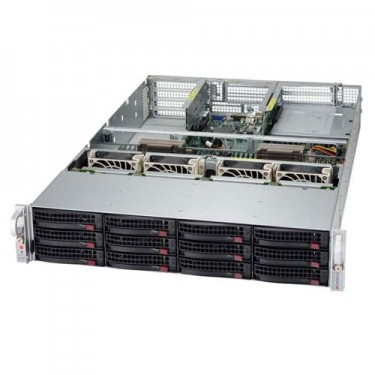

  • Supermicro 2U Rackmount SYS- 6028U-TRTP+ Angle
  • Supermicro 2U Rackmount SYS- 6028U-TRTP+ Front
  • Supermicro 2U Rackmount SYS- 6028U-TRTP+ Top
  • Supermicro 2U Rackmount SYS- 6028U-TRTP+ Rear

Supermicro 2U Rackmount Ultra Server SYS- 6028U-TRTP+ SuperServer

Call for price.
SKU:SYS-6028U-TRTP+

Quick Overview:

Key Features:
• Flexible Connectivity Options
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3
   family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 1x PCI-E 3.0 x16 slot (FH, 10.5" L), 7x PCI-E 3.0 x8 slots (5x FH, 10.5" L,
  1x LP, 1x Internal LP)
• 2x 10G SFP+ ports
• 12x Hot-swap 3.5" Drive Bays: 10x SATA3 ports by default; Optional
   12x SAS3 support
• 4x heavy duty fans w/ optimal fan speed control
• 1000W High efficiency (96%) Redundant PSU; Titanium Level

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU and 4 DIMM). Please contact Will Jaya for special requirements.

Details

SuperServer SYS-6028U-TRTP+

Supermicro 6028U-TRTP+ 2U Rackmount Barebone with 1000W Redundant PSU, Intel® C612 chipset support 12x Hot-swap 3.5" Drive Bays: 10x SATA3 ports by default; Optional
12x SAS3 support using Supermicro Super X10DRU-i+ Server Motherboard and CSE-829UAC-R1K02 2U Rackmount Chassis.

Product SKU
• SuperServer 6028U-TRTP+ (Black)
Motherboard
        Super X10DRU-i+
Processor/Cache
CPU

• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) *
• Dual Socket R3 (LGA 2011)

Cores/Cache

• Up to 22 Cores† / Up to 55MB† Cache

System Bus

• QPI up to 9.6 GT/s

Note

• † BIOS version 2.0 or above is required





* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity • 24x 288-pin DDR4 DIMM slots
• Up to 3TB† ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes • 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SATA • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Connectivity

• 2x 10G SFP+ ports via AOC-2UR68-i2XS
• Intel® 82599ES 10G SFP+
• 1x Realtek RTL8211E PHY (dedicated IPMI)

Graphics • ASPEED AST2400 BMC
Input/Output
SATA

• 10x SATA3 (6Gbps) ports

SAS

• 12x SAS3 ports support via optional Add-on Card

LAN • 2x 10G SFP+ ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 5x USB 3.0 ports (2 rear, 2 onboard header, 1 Type A)
Video • 1x VGA Connector
Serial Port/Header • 1x Serial header
DOM

• 2x SuperDOM (Disk on Module) ports

System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1
Management
Software • SuperDoctor® 5
• Intel® Node Manager 3.0
• Watch Dog
• NMI
• SUM and SSM
• Optional IPMI 1.5 / 2.0
Power Configuration

• ACPI Power Management
• Power-on mode for AC power recovery

































Chassis
Form Factor • 2U Rackmount
Model CSE-829UAC-R1K02
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 28.46" (723mm)
Gross Weight • 72 lbs (32.7 kg)
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power status LED
• HDD activity LED
• 2x Network activity LEDs
• System information (overheat/UID) LED
Expansion Slot
PCI-Express • 1x PCI-E 3.0 x16 slot (FH, 10.5" L)
• 7x PCI-E 3.0 x8 slots (5x FH, 10.5" L, 1x LP, 1x Internal LP)




(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-Swaps • 12x Hot-swap 3.5" Drive Bays:
• 10x SATA3 ports by default
• Optional drive support: 12x SAS3




Note: optional storage card is required to support more than 10 drives.

Backplane
  • 2U SAS3 backplane
System Cooling
Fans • 4x 8cm heavy duty PWM fans
Power Supply
  1000W Redundant Power Supplies with PMBus
Total Output Power • 800W/1000W
Dimension
(W x H x L)
• 73.5 x 40 x 203 mm
Input • 100-127Vac / 9.8 - 7A / 50-60Hz
• 200-240Vac / 7 - 5A / 50-60Hz
+12V • Max: 66.7A / Min: 0A (100-127Vac)
• Max: 83A / Min: 0A (200-240Vac)
12Vsb • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification • Titanium Level
PC Health Monitoring
Voltage • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
• 5+1 Phase-switching voltage regulator
FAN • 8x 4-pin fan headers
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Support to monitor Supermicro AOC temperatures from IPMI or SD 5
• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x Fan Connectors
• Thermal Monitor 2 (TM2) support
• PECI
LED • Memory DIMM ECC error LEDs
• CPU / System Overheat LED
• Suspend static indicator LED
• UID/Remote UID
Other Features • 4x 8-pin GPU power connectors
• Chassis intrusion detection
• Chassis intrusion header
• SDDC Support
• RoHS
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
