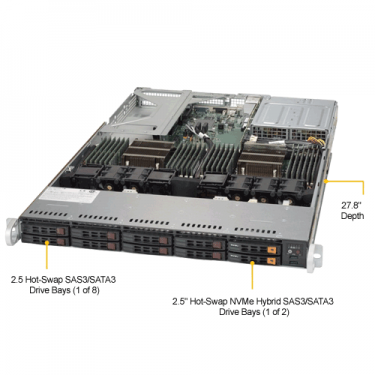

  • Supermicro SYS-1028U-TNRTP+ Angle
  • Supermicro SYS-1028U-TNRTP+ Top
  • Supermicro SYS-1028U-TNRTP+ Front

Supermicro SYS-1028U-TNRTP+ 1U Rackmount NVME Server

Call for price.
SKU:SYS-1028U-TNRTP+

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24x DIMM slots
• 2x PCI-E 3.0 x16 slots (FH, 10.5" L), 2x PCI-E 3.0 x8 slots (LP, 1 internal)
• 2x 10G SFP+ ports
• 10x Hot-swap 2.5" Drive Bays
• 5x heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 4 DIMM). Please contact your Will Jaya sales rep for special requirements.

Details

SuperServer SYS-1028U-TNRTP+ (Complete System Only)

Supermicro SYS-1028U-TNRTP+ 1U Rackmount Barebone supports Dual Socket R3 E5-2600 v4/v3 family, 24x DIMM slots, 10x Hot-swap 2.5" Drive Bays and 750W Redundant Power
Supplies.

Product SKU
• SuperServer 1028U-TNRTP+ (Black)
Motherboard
       Super X10DRU-i+
Processor/Cache
CPU • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
• Dual Socket R3 (LGA 2011)
Cores/Cache • Up to 22 Cores† / Up to 55MB† Cache
System Bus • QPI up to 9.6 GT/s
Note • BIOS version 2.0 or above is required
  • Please contact WillJaya Technical support for additional information
System Memory
Memory Capacity • 24x 288-pin DDR4 DIMM slots
• Up to 3TB† ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes • 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
On-Board Devices
Chipset • Intel® C612 chipset
SATA • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC
Network Connectivity • 2x 10G SFP+ ports via AOC-URN2-I2XS
• Intel® 82599ES 10G SFP+
• 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics • ASPEED AST2400 BMC
Input/Output
SATA • 10x SATA3 (6Gbps) ports
SAS • 8x SAS3 ports support via optional Add-on Card
NVME • 2x NVMe ports
LAN • 2x 10G SFP+ ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 5x USB 3.0 ports (2 rear, 2 front, 1 Type A)
Video • 1x VGA Connector
Serial Port • 1x Serial header
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1
Management
Software • SuperDoctor® 5
• Intel® Node Manager 3.0
• Watch Dog
• NMI
• SUM and SSM
• Optional IPMI 1.5 / 2.0
Power Configuration • ACPI Power Management
• Power-on mode for AC power recovery









Chassis
Form Factor • 1U Rackmount
Model CSE-119UAC2-R750
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 27.82" (707mm)
Gross Weight • 41 lbs (18.6 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset Button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Expansion Slots
PCI-Express • 2x PCI-E 3.0 x16 slots (Full-height, 10.5" L)
• 2x PCI-E 3.0 x8 slots (Low-profile, 1 internal)

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot Swap • 10x 2.5" Hot-swap drive bays
• Default 8x SATA3 ports and 2x NVMe/SATA3 hybrid ports
• Optional 8x SAS3 ports via AOC
System Cooling
Fans • 5x heavy duty fans with optimal fan speed control
• 3x additional fans optional
Air Shroud • 1x Air Shroud
Power Supply
  750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
AC Input • 100-127Vac, 50-60Hz
• 200-240Vac, 50-60Hz
+12V • Max: 62.5A & Min: 0A (100Vac-127Vac)
• Max: 62.5A & Min: 0A (200Vac-240Vac)
12Vsb • Max: 2.1A / Min: 0A
Certification • Platinum Level (94%)
PC Health Monitoring
Voltage • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
• 5+1 Phase-switching voltage regulator
FAN • 8x 4-pin fan headers
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Support to monitor Supermicro AOC temperatures from IPMI or SD 5
• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Control for 8x Fan Connectors
• Thermal Monitor 2 (TM2) support
• PECI
LED • Memory DIMM ECC error LEDs
• CPU / System Overheat LED
• Suspend static indicator LED
• UID/Remote UID
Other Features • 4x 8-pin GPU power connectors
• Chassis intrusion detection
• Chassis intrusion header
• SDDC Support
• RoHS
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
