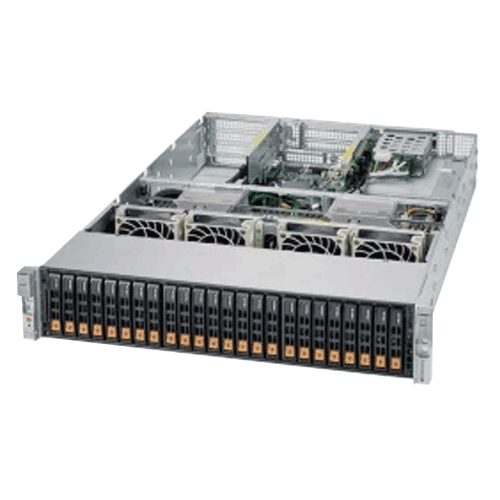

Supermicro A+ AMD EPYC™ 7000 Solution 2U Rackmount AS-2123US-TN24R25M

More Views

  • Supermicro A+ AMD EPYC™ 7000 Solution 2U Rackmount AS-2123US-TN24R25M

Supermicro A+ AMD EPYC™ 7000 Solution 2U Rackmount AS-2123US-TN24R25M

Call for price.
SKU:AS-2123US-TN24R25M

Quick Overview:

Key Features:
• Dual AMD EPYC™ 7000-Series Processors
• Up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
• Integrated IPMI 2.0 + KVM with dedicated LAN
• Dual 25G SFP28 LAN ports
•  24 hot-swap 2.5" U.2 NVMe drive bays
• 1600W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 16 DIMMs, 1 NVMe). Recommended configuration for best performance is at least 24 or 32 Cores per CPU (minimum 48 or 64 Cores Total). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro A+ AMD EPYC™ 7000 Solution 2U Rackmount AS-2123US-TN24R25M

Product SKU
AS-2123US-TN24R25M • A+ Server 2123US-TN24R25M
Motherboard
  • H11DSU-iN
Processor/Chipset
CPU • Dual AMD EPYC™ 7000-series Processors
• Socket SP3
Cores • Up to 32 Cores
Chipset • System on Chip (SoC)
System Memory
Memory Capacity • 32 DIMM slots
• Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM
• 8-channel memory bus
Memory Type

• DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes

• 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage

• 1.2V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC
Network Controllers • Dual 25GbE SFP28 ports via AOC-2UR68-M2TS-O (Mellanox ConnectX-4 Lx EN)
VGA

• ASPEED AST2500 BMC
Input/Output
NVMe • 24 U.2 NVMe support
LAN • Dual 25G SFP28 LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 3 USB 3.0 ports (2 rear + 1 Type A)
VGA • 2 VGA ports (1 rear, 1 onboard)
Others • 1 COM port
• 2 SATA DOM power connectors
• TPM 2.0 header
System BIOS
BIOS Type

• AMI 128Mb SPI Flash EEPROM
BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 5.1
• USB Keyboard Support
• SMBIOS 3.1.1
Chassis
Form Factor • 2U
Model • XXXXXXXXX
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 28.46" (723mm)
Gross Weight • 63 lbs (28.6 kg)
Available Colors • N.A.
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Drive Bays
Hot-swap

• 24 hot-swap 2.5" U.2 NVMe drive bays
System Cooling
Fans

• 4 heavy-duty PWM fans with optimal fan speed control
Shrouds

• 1 Air Shroud
Power Supply
  1600W Redundant Power Supplies with PMBus
Total Output Power • 1600W/1000W
Dimension
(W x H x L)
 • 73.5 x 40 x 203 mm
Input • 100-127Vac / 13 - 9A / 50-60Hz
• 200-240Vac / 10 - 8A / 50-60Hz
+12V • Max: 83.3A / Min: 0A (100-127Vac)
• Max: 133A / Min: 0A (200-240Vac)
12Vsb • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification • 80Plus Titanium Level
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
• CPU switching voltage regulator
FAN

• Up to 4-fan status tachometer monitoring
• Up to four 4-pin fan headers
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature

• Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal control for 4x Fan connectors
• I²C Temperature Sensing Logic

LED

• CPU / System Overheat LED
Others • Chassis Intrusion Detection
• Chassis Intrusion Header
Operating Environment / Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
