Model Number |
|
Technical Specifications |
|
MBI-6219G-T |
X11 |
• Single socket FCBGA 1667 support Intel® Xeon® processor D-1581: 16-Core, 32 Threads, 65W
• Up to 128GB DDR4 VLP ECC RDIMM 2133/2400MHz in 4 slots
• Up to 4x 2.5" SATA3 (6Gbps) drives; 2x HDD/SSD + 2x SSD, 1x SATA3 DOM
• Dual 10GbE ports via Intel X552
• 28 Xeon D-1581 nodes in 6U or 14 Xeon D-1581 nodes in 3U
• Hot-plug front loading
|
|

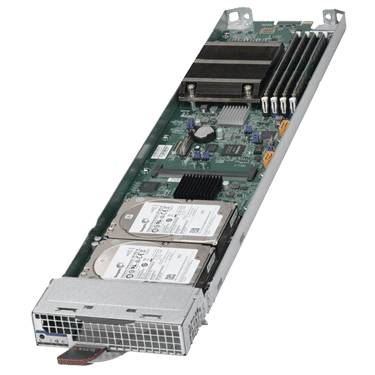

MBI-6119G-C2 |
X11 |
• Socket H4 (LGA 1151) supports
Intel® Xeon® E3-1200 v6/v5
processor family
• Up to 64GB ECC VLP UDIMM
DDR4-2400MHz in 4 DIMM slots
• Up to 2x 2.5" SAS3 (12Gbps) HDDs
• Dual 1GbE LAN ports via Intel i350
Dedicated LAN supports IPMI 2.0
|
|

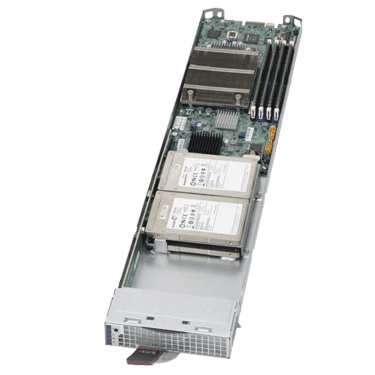

MBI-6119G-C4 |
X11 |
• Socket H4 (LGA 1151) supports Intel® Xeon® E3-1200 v6/v5 processor family
• Up to 64GB ECC VLP UDIMM DDR4-2400MHz in 4 DIMM slots
• Up to 2x 2.5" SAS3 (12Gbps) HDDs or 4x 2.5" SAS3 (12Gbps) SSDs
• Dual 1GbE LAN ports via Intel i350 Dedicated LAN supports IPMI 2.0
|
|

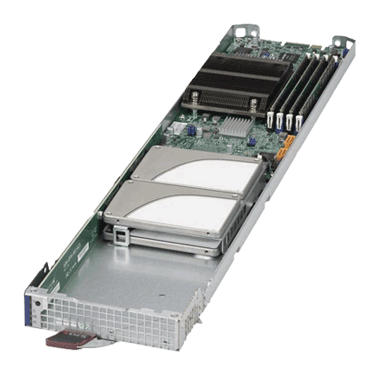

MBI-6119G-T4 |
X11 |
• Socket H4 (LGA 1151) supports Intel® Xeon® E3-1200 v6/v5 processor family
• Up to 64GB ECC VLP UDIMM DDR4-2400MHz in 4 DIMM slots
• Up to 2x 2.5" SATA3 (6Gbps) HDDs or 4x 2.5" SATA3 (6Gbps) SSDs
• Dual 1GbE LAN ports via Intel i350 Dedicated LAN supports IPMI 2.0
|
|

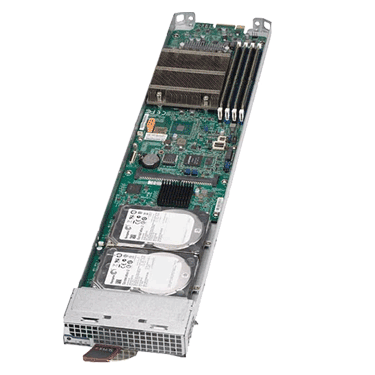

MBI-6119M-C2 |
X11 |
• Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series
• Up to 128GB ECC VLP UDIMM DDR4-2666MHz in 4 DIMM slots
• Up to 2x 2.5" SAS3 (12Gbps) drives M.2 Interface: 1 PCI-E 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
• Dual 1GbE LAN ports via Intel i350 Dedicated LAN supports IPMI 2.0
• Avago 3008 SAS3 controller
• Aspeed AST2500
|
|

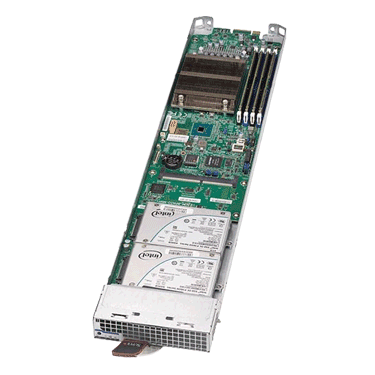

MBI-6119M-T2N |
X11 |
• Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series
• Up to 128GB ECC VLP UDIMM DDR4-2666MHz in 4 DIMM slots • Up to 2x 2.5" NVMe/SATA3 drives M.2 Interface: 1 PCI-E 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
• Dual 1GbE LAN ports via Intel i350 Dedicated LAN supports IPMI 2.0
• Aspeed AST2500
|
|
MBI-6119G-T7LX |
X11 |
• Intel® Xeon® processor E3-1578L v5 built-in; Socket FCBGA 1440
• Up to 32GB DDR4-2133MHz ECC SO-DIMM in 2 DIMM slots per node
• 1x 2.5" SATA3 SSD, 1x SATADOM, 1x M.2 NVMe (80mm), 1x M.2 NVMe (110mm)
• Dual 10GbE LAN ports via Intel X710-BM2
• Dedicated LAN supports IPMI 2.0
|
|
MBI-6119G-T8HX |
X11 |
• Intel® Xeon® processor E3-1585 v5 built-in; Socket FCBGA 1440
• Up to 32GB DDR4-2133MHz ECC SO-DIMM in 2 DIMM slots per node
• 1x 2.5" SATA3 SSD, 1x SATADOM, 2x M.2 (PCI-E 3.0 x4)
• Dual 10GbE LAN ports
• Dedicated LAN supports IPMI 2.0
|
|

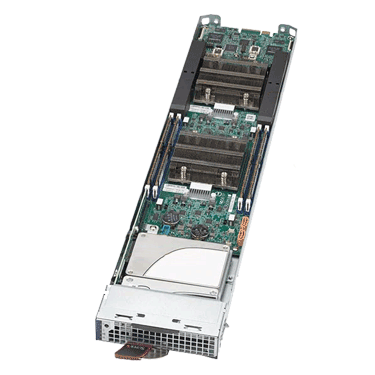

MBI-6219B-T41N |
X11 |
• Intel® Xeon® processor D-2141I, FCBGA 2518, 8 core, 16 Threads, 65W
• Up to 128GB ECC VLP RDIMM DDR4-2133MHz in 4 DIMM slots
• 1x 2.5" HDD/SSD/NVMe U.2 per node
• Dual 10GbE LAN ports
• Hot-plug front loading
|
|
MBI-6219B-T63N |
X11 |
• Intel® Xeon® processor D-2163IT,
FCBGA 2518, 12 core, 24 Threads, 75W
• Up to 128GB ECC VLP RDIMM
DDR4-2133MHz in 4 DIMM slots
• 1x 2.5" HDD/SSD/NVMe U.2 per node
• Dual 10GbE LAN ports
• Hot-plug front loading
|
|
MBI-6219B-T83N |
X11 |
• Intel® Xeon® processor D-2183IT, FCBGA 2518, 16 core, 32 Threads, 100W
• Up to 128GB ECC VLP RDIMM DDR4-2400MHz in 4 DIMM slots
• 1x 2.5" HDD/SSD/NVMe U.2 per node
• Dual 10GbE LAN ports
• Hot-plug front loading
|
|
MBI-6219G-T7LX |
X11 |
• Socket FCBGA 1440; Intel® Xeon® processor E3-1578L v5
• Up to 32GB DDR4-2133MHz ECC SO-DIMM in 2 DIMM slots per node
• 1x 2.5" SATA3 SSDs, 1x SATADOM, 1x M.2 (80mm PCI-E 3.0 x4), 1x M.2 (110mm PCI-E 3.0 x4)
• Dual 10GbE LAN ports via Intel X710-BM2
• Dedicated LAN supports IPMI 2.0
|
|

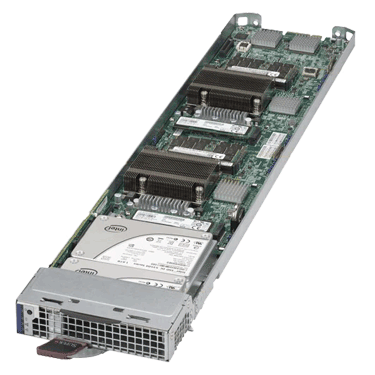

MBI-6219G-T8HX |
X11 |
• Intel® Xeon® processor E3-1585 v5 Socket FCBGA 1440
• Up to 32GB DDR4-2133MHz ECC SO-DIMM in 2 DIMM slots per node
• 1x 2.5" SATA3 SSDs, 1x SATADOM, 2x M.2 (PCI-E 3.0 x4)
• Dual 10GbE LAN ports
• Dedicated LAN supports IPMI 2.0
|
|
MBI-6128R-T2 |
X10 |
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• 8x 288-pin DDR4 DIMM sockets up to 256GB VLP RDIMM
• 2x 2.5" 6Gb/s SATA3 HDD/SSD
• 1x SATA DOM on board
• 4x 1Gb/s network connectivity
|
|
MBI-6128R-T2X |
X10 |
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; QPI up to 9.6GT/s
• 8x 288-pin DDR4 DIMM sockets up to 256GB VLP RDIMM
• 2x 2.5" 6Gb/s SATA3 HDD/SSD
• 1x SATA DOM on board
• 2x 10Gb/s network connectivity
|
|
MBI-6118G-T41X |
X10 |
• Single socket FCBGA 1667, 8-Core, 45W, 16 Threads; support Intel® Xeon® processor D-1541
• Up to 128GB DDR4 VLP ECC RDIMM 2133/2400MHz in 4 sockets
• Up to 4x 2.5" SATA3 (6Gbps) drives; 2x HDD/SSD + 2x SSD, 1x SATA3 DOM
• Dual 10GbE ports via Intel X552
• 28 Xeon D-1541 nodes in 6U or 14 Xeon D-1541 nodes in 3U
• Hot-plug front loading
|
|

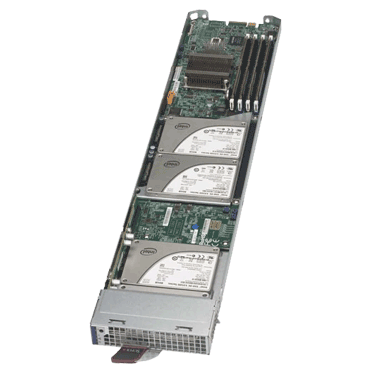

MBI-6118G-T81X |
X10 |
• Single socket FCBGA 1667 support Intel® Xeon® processor D-1581: 16-Core, 32 Threads, 65W
• Up to 128GB DDR4 VLP ECC RDIMM 2133/2400MHz in 4 slots
• Up to 4x 2.5" SATA3 (6Gbps) drives; 2x HDD/SSD + 2x SSD, 1x SATA3 DOM
• Dual 10GbE ports via Intel X552
• 28 Xeon D-1581 nodes in 6U or 14 Xeon D-1581 nodes in 3U
• Hot-plug front loading
|
|
MBI-6118G-T81X |
X10 |
• Single socket FCBGA 1667, 8-Core, 45W, 16 Threads; support Intel® Xeon® processor D-1541
• Up to 128GB DDR4 VLP ECC RDIMM 2133/2400MHz in 4 sockets
• 1x 2.5" 6Gb/s SATA3 HDD/SSD, 1x SATA3 DOM
• Dual 10GbE ports via Intel X552
• 56 Xeon D-1541 nodes in 6U or 28 Xeon D-1541 nodes in 3U
• Hot-plug front loading
|
|
MBI-6218G-T41X |
X10 |
• Single socket FCBGA 1667, 8-Core, 45W, 16 Threads; support Intel® Xeon® processor D-1541
• Up to 128GB DDR4 VLP ECC RDIMM 2133/2400MHz in 4 sockets
• 1x 2.5" 6Gb/s SATA3 HDD/SSD, 1x SATA3 DOM
• Dual 10GbE ports via Intel X552
• 56 Xeon D-1541 nodes in 6U or 28 Xeon D-1541 nodes in 3U
• Hot-plug front loading
|
|
MBI-6218G-T81X |
X10 |
• Single socket FCBGA 1667 support Intel® Xeon® processor D-1581: 16-Core, 32 Threads, 65W
• Up to 128GB DDR4 VLP ECC RDIMM 2133/2400MHz in 4 slots
• Up to 1x 2.5" SATA3 HDD/SSD
• Dual 10GbE ports via Intel X552
• 56 Xeon D-1581 nodes in 6U or 28 Xeon D-1581 nodes in 3U
• Hot-plug front loading
|
Important Note: MicroBlade (Atom based) is only sold as a complete system with fully configured CPUs, Memory, HDD/SSD and/or SATA DOM. |
|
