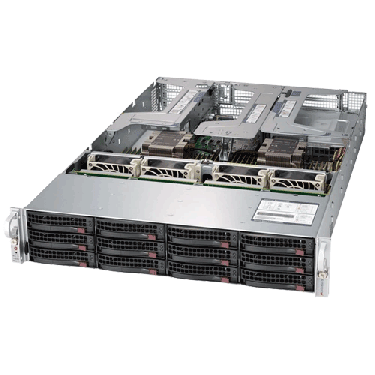

Supermicro Ultra SuperServer SYS-6029UZ-TR4+ Angle

More Views

  • Supermicro Ultra SuperServer SYS-6029UZ-TR4+ Angle
  • Supermicro Ultra SuperServer SYS-6029UZ-TR4+ Top
  • Supermicro Ultra SuperServer SYS-6029UZ-TR4+ Front
  • Supermicro Ultra SuperServer SYS-6029UZ-TR4+ Rear

Supermicro Ultra SuperServer SYS-6029UZ-TR4+ (Complete System Only)

Call for price.
SKU:SYS-6029UZ-TR4+

Quick Overview:

Key Features:
• Supports Intel® Xeon® Scalable Processors
• Up to 3TB of memory
• 12 Hot-swap 3.5" drive bays
• Optional SAS3 and NVMe suppor
• 4 Heavy duty 8cm fans
• 1600W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro Ultra SuperServer SYS-6029UZ-TR4+ (Complete System Only)

Product SKU
SYS-6029UZ-TR4+ • SuperServer 6029UZ-TR4+ (Black)
Motherboard
  • Super X11DPU-Z+
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity • 4x 1GbE LAN ports via Intel® i350 (AOC-2UR68-i4G)
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

• ASPEED AST2500 BMC
Input/Output
SATA • 10 SATA3 (6Gbps) ports
LAN • 4 GbE ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 3 USB 3.0 ports (2 rear, 1 Type A)
Video • 2 VGA ports (1 rear, 1 onboard)
Serial Port • 1 Serial header
DOM • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type

• AMI 32Mb SPI Flash ROM
Management
Software

• Intel® Node Manager
• Redfish API
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
Power Configuration

• ACPI Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature


 • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 2U Rackmount
Model • CSE-219U2AC4-R1K62-T
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 28.46" (723mm)
Gross Weight • 72 lbs (32.7 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System UID button
LEDs

• Power LED
• Hard drive activity LED
• Power LED Hard drive activity LED Network activity LEDs
• UID LED
Expansion Slots
PCI-Express

• 1 PCI-E 3.0 x16 slot (FH, 10.5"L)
• 5 PCI-E 3.0 x8 slot (FH, 10.5"L)
• 1 PCI-E 3.0 x8 slot (LP)
• 1 PCI-E 3.0 x8 slot (internal LP)
Drive Bays/Storage
Hot-swap

• 12 Hot-swap 3.5" drive bays Optional 8 SAS3 + 4 SAS3/NVMe
• 2 Rear Hot-swap 2.5" drive bays
M.2

• 1 M.2 PCI-E 3.0 x4 M-Key NVMe and 1 M.2 M-Key SATA3 via optional riser card RSC-UMR-8, cable CBL-SAST-0538 and plastic stand-off FST-SCRW-0074L (2240/2260/2280/22110)
• 2 M.2 PCI-E 3.0 x4 M-Key NVMe via optional add-on card AOC-SLG3-2M2 (2260/2280/22110)
System Cooling
Fans

• 4 Heavy duty 8cm fans
Power Supply
  1600W Redundant Power Supplies with PMBus
Total Output Power • 1600W/1000W
Dimension
(W x H x L)
 • 73.5 x 40 x 203 mm
Input • 100-127Vac / 13 - 9A / 50-60Hz
• 200-240Vac / 10 - 8A / 50-60Hz
+12V • Max: 83.3A / Min: 0A (100-127Vac)
• Max: 133A / Min: 0A (200-240Vac)
12Vsb • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification • Titanium Level
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
