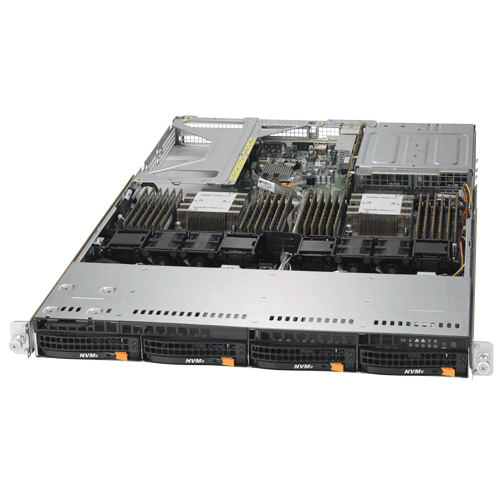

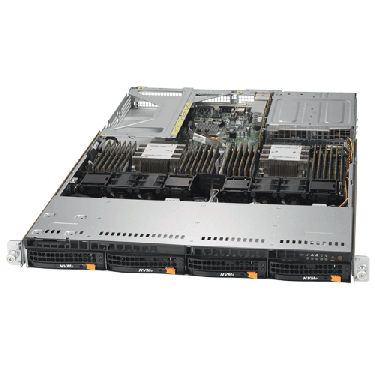

  • Supermicro Ultra SuperServer SYS-6019U-TN4R4T - Angle

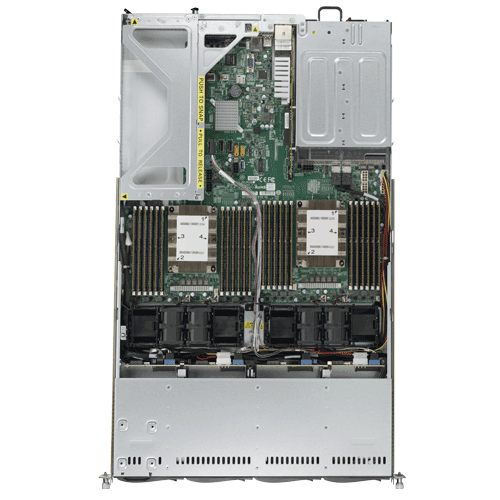

  • Supermicro Ultra SuperServer SYS-6019U-TN4R4T - Top

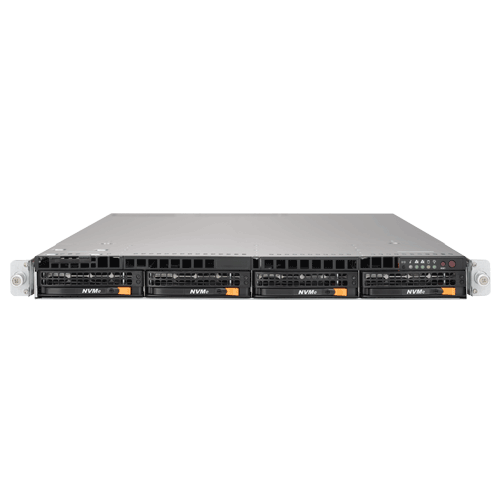

  • Supermicro Ultra SuperServer SYS-6019U-TN4R4T - Front

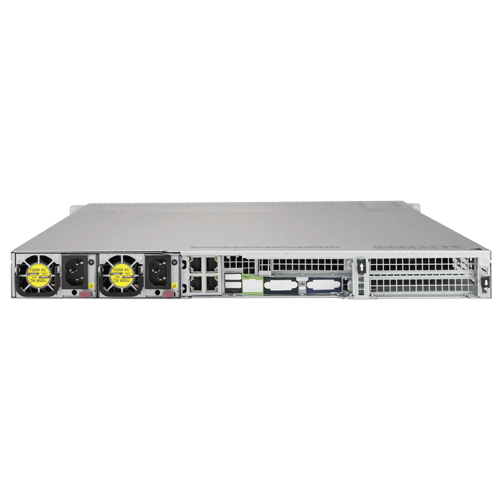

  • Supermicro Ultra SuperServer SYS-6019U-TN4R4T - Rear

Supermicro Ultra SuperServer SYS-6019U-TN4R4T (Complete System Only)

Call for price.
SKU:SYS-6019U-TN4R4T

Quick Overview:

Key Features:
• Dual socket P (LGA 3647)
• Supports Intel® Xeon® Scalable Processors,
• Up to 3TB of memory
• 4 Hot-swap 3.5" drive bays
• 8 Heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs and 4 DIMMs). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro Ultra SuperServer SYS-6019U-TN4R4T (Complete System Only)

Product SKU
• SuperServer 6019U-TN4R4T (Black)
Motherboard
  • Super X11DPU
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
• 2666 ECC DDR4 NVDIMM

On-Board Devices
Chipset • Intel® C621 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity • 4x 10GBase-T ports via AOC-UR-i4XTF (Intel® XL710-BM1 + X557-AT4)
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

• ASPEED AST2500 BMC

Input/Output
SATA/NVMe • 4 SATA3 (6Gbps)/NVMe ports
LAN • 4 RJ45 10GBase-T Ethernet ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 3 USB 3.0 ports (2 rear, 1 Type A)
Video • 2 VGA ports (1 rear, 1 onboard)
Serial Port • 1 Serial header
DOM • 2 SATA DOM (Disk on Module) support with embedded power
System BIOS
BIOS Type

• AMI 32Mb SPI Flash ROM

Management
Software

• Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5

Power Configuration

• ACPI Power Management

PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 1U Rackmount
Model CSE-819UTS-R751-T
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 29.7" (754mm)
Gross Weight • 41 lbs (18.6 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED

Expansion Slots
PCI-Express

• 2 PCI-E 3.0 x16 (Full-height, 10.5" L)
• 2 PCI-E 3.0 x8 (1 LP, 1 internal LP)

  (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers.)
Drive Bays/Storage
Hot-swap

• 4 Hot-swap 3.5" drive bays: 4 NVMe/SATA3 hybrid ports (optional SAS3 via AOC)

M.2

• 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110)
• 1 M.2 M-Key SATA3 via optional cable CBL-SAST-0538 and plastic stand-off FST-SCRW-0074L (2240/2260/2280/22110)
• 2 M.2 PCI-E 3.0 x4 M-Key NVMe via optional add-on card AOC-SLG3-2M2 (2260/2280/22110)

System Cooling
Fans

• 8 Heavy duty fans with optimal fan speed control

Air Shroud

• 1 Air Shroud

Power Supply
  750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
AC Input • 100-127Vac, 50-60Hz
• 200-240Vac, 50-60Hz
+12V
• Max: 62.5A & Min: 0A (100Vac-127Vac)
• Max: 62.5A & Min: 0A (200Vac-240Vac)
12V SB • Max: 2.1A
• Min: 0A
Certification • Platinum Level
Operating Environment
RoHS

• RoHS Compliant

Environmental Spec.





• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
