Ultra SuperServers

Supermicro Ultra SuperServers is a highly scalable 1U 2U systems which supports virtualization,cloud computing and data centers.
WillJaya Server Quote
Technical Support Request
Quality Control Handling
Will Jaya 3 Years Warranty Guarantee
Model Number Technical Specifications
Supermicro Ultra SuperServer SYS-1029UZ-TN20R25M

SYS-1029UZ-TN20R25M

20 NVMe support 24 DDR4 DIMM 2x 25G SFP28

• Virtualization, Cloud Computing, High End Enterprise Server, SDS
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 20 Hot-swap 2.5" 7mm drive bays; up to 20 NVMe (CPU1: 8 NVMe + 2 NVMe/SAS/SATA3 hybrid, CPU2: 10 NVMe)
• Up to 2 PCI-E 3.0 x8 (FH, FL)
• 2x 25G SFP28 Ethernet ports, 1 Dedicated IPMI port
• 1 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A), 2 USB 2.0 (front)
• 8 heavy duty fans w/ optimal fan speed control, 2 air shroud
• 1600W Redundant Titanium Level (96%) Power Supplies

Supermicro Ultra SuperServer SYS-2029UZ-TN20R25M

SYS-2029UZ-TN20R25M

20 NVMe support 24 DDR4 DIMM 2x 25G SFP28

• Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 24 Hot-swap 2.5" drive bays; 20 NVMe + 4 SAS3/SATA
• 1 PCI-E 3.0 x8 (LP)
• 2x 25G SFP28 Ethernet ports, 1 Dedicated IPMI port
• 2 VGA, 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
• 4 heavy duty 8cm fans
• 1600W Redundant Titanium Level (96%) Power Supplies

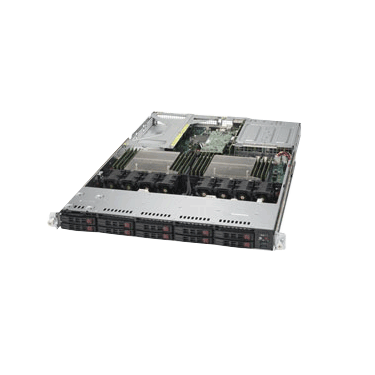

Supermicro Ultra SuperServer SYS-1029UX-LL1-S16

SYS-1029UX-LL1-S16

Xeon 6144 and 12x 16GB DDR4-2666MHz included

• Financial Analysis, Business Critical Applications, Enterprise Server
• Dual Intel® Xeon® Gold 6144 included
• 12x 16GB DDR4‑2666MHz included
• 8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
• 2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP),
   1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
• 4x 1GbE ports, 1 Dedicated IPMI port
• 1 VGA, 1 Serial, 3 USB 3.0
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies

Supermicro Ultra SuperServer SYS-1029UX-LL2-S16

SYS-1029UX-LL2-S16

Xeon 6146 and 12x 16GB DDR4-2666MHz included

• Financial Analysis, Business Critical Applications, Enterprise Server
• Dual Intel® Xeon® Gold 6146 included
• 12x 16GB DDR4‑2666MHz included
• 8 Hot-swap 2.5" SAS3 drive bays and 2 NVMe bays
• 2 PCI-E 3.0 x16 (FH, 10.5"/10" L), 1 PCI-E 3.0 x8 (LP),
  1 PCI-E 3.0 x8 (internal SAS3 integrated 3108)
• 4x 1GbE ports, 1 Dedicated IPMI port
• 1 VGA, 1 Serial, 3 USB 3.0
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies

Supermicro Ultra SuperServer SYS-1029U-TN10RT

SYS-1029U-TN10RT

10 NVMe support 24 DDR4 DIMM 2x 10GBase-T

• Virtualization, Cloud Computing, High End Enterprise Server
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 10 Hot-swap 2.5" drive bays; 4 NVMe/SAS3 hybrid + 6 NVMe ports
• 2 PCI-E 3.0 x16 Full-height, 10.5" L slots
• 2x 10GBase-T ports, 1 Dedicated IPMI port
• 2 VGA (1 rear, 1 onboard), 1 Serial, 5 USB 3.0
• 8 heavy duty fans w/ optimal fan speed control
• 1000W Redundant Titanium Level (96%) Power Supplies

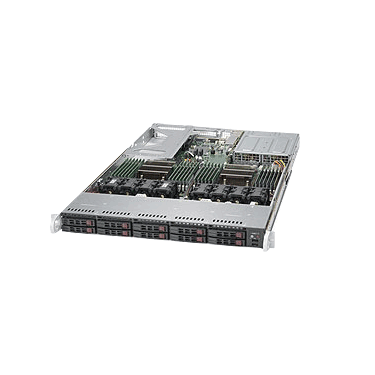

Supermicro Ultra SuperServer ######

SYS-1029U-TR4T
SYS-1029U-TR4
SYS-1029U-TRT
SYS-1029U-TRTP
SYS-1029U-TRTP2
SYS-1029U-TR25M

10x 2.5" SATA3 or Opt. 8x SAS3 + 2x NVMe/SATA Flexible Network Opt.


• Virtualization, Cloud Computing, High End Enterprise Server
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 10 Hot-swap 2.5" drive bays; 10 SATA3 (2 hybrid ports - 2 NVMe opt.)
• 2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
• 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-1029U-TR25M
• Networking Options:
   SYS-1029U-TR4 - 4x 1GbE ports
   SYS-1029U-TR4T - 4x 10GBase-T ports
   SYS-1029U-TRT - 2x 10GBase-T ports
   SYS-1029U-TRTP - 2x 10G SFP+ ports
   SYS-1029U-TRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
   SYS-1029U-TR25M - 2x 25GbE SFP28 ports
• 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
• 5 USB 3.0 (2 rear, 2 front, 1 Type A)
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies

Supermicro Ultra SuperServer ######

SYS-1029U-E1CR4T
SYS-1029U-E1CR4
SYS-1029U-E1CRT
SYS-1029U-E1CRTP
SYS-1029U-E1CRTP2
SYS-1029U-E1CR25M

10x 2.5" SAS3 Flexible Network Opt.


• Virtualization, Cloud Computing, High End Enterprise Server
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 10 Hot-swap 2.5" drive bays; 10 SAS3 via optional AOC
• 2 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-1029U-E1CR25M
• Networking Options:
    SYS-1029U-E1CR4 - 4x 1GbE ports
    SYS-1029U-E1CR4T - 4x 10GBase-T ports
    SYS-1029U-E1CRT - 2x 10GBase-T ports
    SYS-1029U-E1CRTP - 2x 10G SFP+ ports
    SYS-1029U-E1CRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
    SYS-1029U-E1CR25M - 2x 25GbE SFP28 ports
• 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 COM/Serial
• 5 USB 3.0 (2 rear, 2 front, 1 Type A)
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies

Supermicro Ultra SuperServer SYS-6019U-TN4R4T

SYS-6019U-TN4R4T
SYS-6019U-TN4RT

4 NVMe support 24 DDR4 DIMM 4x/2x 10GBase-T

• Virtualization, Cloud Computing, High End Enterprise Server
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 4 Hot-swap 3.5" drive bays; 4 NVMe/SAS3 hybrid ports, 2 internal M.2 (1 SATA3, 1 NVMe)
• 2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
• Networking Options:
    SYS-6019U-TN4R4T - 4x 10GBase-T ports
    SYS-6019U-TN4RT - 2x 10GBase-T ports
• 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
• 3 USB 3.0 (2 rear, 1 Type A)
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies

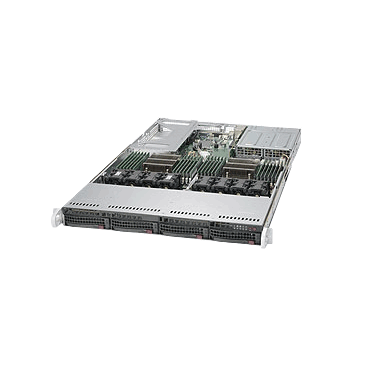

Supermicro Ultra SuperServer


SYS-6019U-TR4T
SYS-6019U-TR4
SYS-6019U-TRTP
SYS-6019U-TRTP2
SYS-6019U-TR25M

4x 3.5" SATA3 Flexible Network Opt.

• Virtualization, Cloud Computing, High End Enterprise Server
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 4 Hot-swap 3.5" drive bays
• 2 PCI-E 3.0 x16 (FH, 10.5" L), 2 PCI-E 3.0 x8 (1 LP, 1 LP internal)
• 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (1 LP), 1 PCI-E 3.0 x16 (internal LP) - SYS-6019U-TR25M
• Networking Options:
    SYS-6019U-TR4 - 4x 1GbE ports
    SYS-6019U-TR4T - 4x 10GBase-T ports
    SYS-6019U-TRT - 2x 10GBase-T ports
    SYS-6019U-TRTP - 2x 10G SFP+ ports
    SYS-6019U-TRTP2 - 2x 10G SFP+ ports + 2x 1GbE ports
    SYS-6019U-TR25M - 2x 25GbE SFP28 ports
• 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
• 3 USB 3.0 (2 rear, 1 Type A)
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies

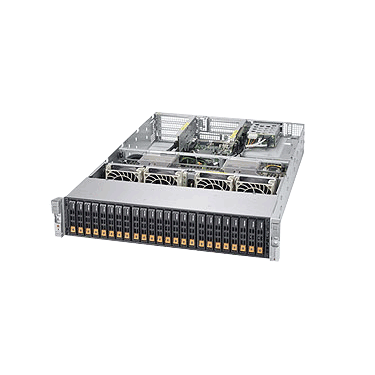

Supermicro Ultra SuperServer SYS-2029U-TN24R4T

SYS-2029U-TN24R4T

24 NVMe support 4x 10GBase-T

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 24 Hot-swap 2.5" drive bays; 24 NVMe (4 hybrid ports - SAS3 via AOC), 2 rear Hot-swap 2.5" drive bays; 2 internal M.2 (1 SATA3, 1 NVMe)
• 2 PCI-E 3.0 x16 (FH, 10.5" L), 1 PCI-E 3.0 x8 (LP)
• 4x 10GBase-T ports, 1 Dedicated IPMI port
• 2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
• 4 heavy duty 8cm PWM fans
• 1600W Redundant Titanium Level (96%) Power Supplies

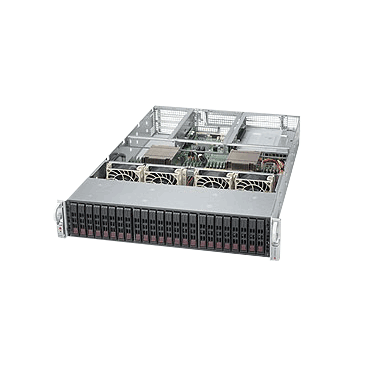

Supermicro Ultra SuperServer

SYS-2029U-TR4T
SYS-2029U-TR4
SYS-2029U-TRT
SYS-2029U-TRTP
SYS-2029U-TR25M

24x 2.5" Drive Bays Opt. 20 SAS3 + 4 NVMe/SAS3 Flexible Network Opt.

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 24 Hot-swap 2.5" drive bays; 14 SATA (opt. 20 SAS3 + 4 NVMe/SAS3)
• 1 PCI-E 3.0 x16 and 5 PCI-E 3.0 x8 (FH, 10.5"L), 2 PCI-E 3.0 x8 (LP)
• Networking Options:
    SYS-2029U-TR4 - 4x 1GbE ports
    SYS-2029U-TR4T - 4x 10GBase-T ports
    SYS-2029U-TRT - 2x 10GBase-T ports
    SYS-2029U-TRTP - 2x 10G SFP+ ports
    SYS-2029U-TR25M - 2x 25GbE SFP28 ports
• 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
• 3 USB 3.0 (2 rear, 1 Type A)
• 4 heavy duty 8cm PWM fans
• 1000W Redundant Titanium Level (96%) Power Supplies

Supermicro Ultra SuperServer

SYS-2029U-E1CR4T
SYS-2029U-E1CR4
SYS-2029U-E1CRT
SYS-2029U-E1CRTP
SYS-2029U-E1CR25M

24x 2.5" SAS3 Opt. 4 NVMe Flexible Network Opt.

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 24 Hot-swap 2.5" drive bays; optional 20 SAS3 + 4 NVMe/SAS3, 2 rear Hot-swap 2.5" drive bays
• 1 PCI-E 3.0 x16 and 5 PCI-E 3.0 x8 (FH, 10.5"L), 2 PCI-E 3.0 x8 (LP)
• Networking Options:
    SYS-2029U-E1CR4 - 4x 1GbE ports
    SYS-2029U-E1CR4T - 4x 10GBase-T ports
    SYS-2029U-E1CRT - 2x 10GBase-T ports
    SYS-2029U-E1CRTP - 2x 10G SFP+ ports
    SYS-2029U-E1CR25M - 2x 25GbE SFP28 ports
• 1 Dedicated IPMI port
• 2 VGA (1 rear, 1 onboard), 1 Serial, 3 USB 3.0 (2 rear, 1 Type A)
• 4 heavy duty 8cm PWM fans
• 1000W Redundant Titanium Level (96%) Power Supplies

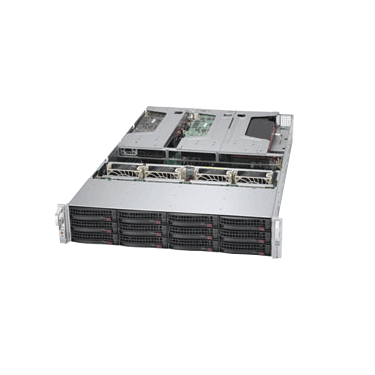

Supermicro Ultra SuperServer

SYS-6029U-TR4T
SYS-6029U-TR4
SYS-6029U-TRT
SYS-6029U-TRTP
SYS-6029U-TR25M

12x 3.5" SATA3 Opt. 4 NVMe Flexible Network Opt.

• Virtualization, Cloud Computing, High End Enterprise Server
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 12 Hot-swap 3.5" drive bays; Optional 8 SAS3 + 4 SAS3/NVMe and 2 Rear Hot-swap 2.5" drive bays
• 1 PCI-E 3.0 x16 and 5 PCI-E 3.0 x8 (FH, 10.5"L), 2 PCI-E 3.0 x8 (LP)
• Networking Options:
    SYS-6029U-TR4 - 4x 1GbE ports
    SYS-6029U-TR4T - 4x 10GBase-T ports
    SYS-6029U-TRT - 2x 10GBase-T ports
    SYS-6029U-TRTP - 2x 10G SFP+ ports
    SYS-6029U-TR25M - 2x 25GbE SFP28 ports
• 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
• 3 USB 3.0 (2 rear, 1 Type A)
• 4 heavy duty fans w/ optimal fan speed control
• 1000W Redundant Titanium Level (96%) Power Supplies

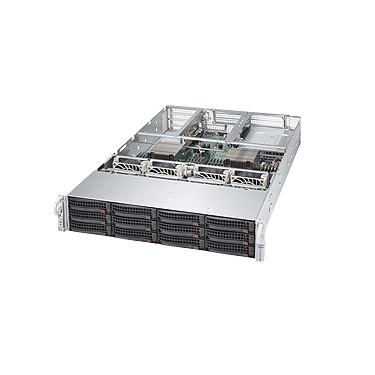

Supermicro Ultra SuperServer

SYS-6029U-E1CR4T
SYS-6029U-E1CR4
SYS-6029U-E1CRT
SYS-6029U-E1CRTP
SYS-6029U-E1CR25M

12x 3.5" SAS3 opt. 4 NVMe Flexible Network Opt.

• Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 12 Hot-swap 3.5" drive bays; 12 SAS3 via opt. AOC (4 hybrid ports - 4 NVMe opt.)
• 1 PCI-E 3.0 x16 and 5 PCI-E 3.0 x8 (FH, 10.5"L), 2 PCI-E 3.0 x8 (LP)
• 2 PCI-E 3.0 x16 and 4 PCI-E 3.0 x8 (FH, 10.5"L), 2 PCI-E 3.0 x8 (LP, LP internal) - SYS-6029U-E1CR4T
• Networking Options:
    SYS-6029U-E1CR4 - 4x 1GbE ports
    SYS-6029U-E1CR4T - 4x 10GBase-T ports
    SYS-6029U-E1CRT - 2x 10GBase-T ports
    SYS-6029U-E1CRTP - 2x 10G SFP+ ports
    SYS-6029U-E1CR25M - 2x 25GbE SFP28 ports
• 1 Dedicated IPMI port, 2 VGA (1 rear, 1 onboard), 1 Serial
• 3 USB 3.0 (2 rear, 1 Type A)
• 4 heavy duty 8cm PWM fans
• 1000W Redundant Titanium Level (96%) Power Supplies

Supermicro Ultra SuperServer SYS-2049U-TR4

SYS-2049U-TR4

4-Way MP 112 Cores per System 48 DDR4 DIMMs

• High End Enterprise Server, in-memory database, Business Intelligence, High Performance Computer Cluster, Virtualization, ERP, CRM
• Quad Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
• 11 PCI-E 3.0 total: 5 PCI-E 3.0 x8 and 6 PCI-E 3.0 x16 slots
• 48 DIMMs, up to 6TB ECC 3DS LRDIMMs, up to DDR4‑2666MHz
• 24 Hot-swap 2.5" drive bays: 4 U.2 NVMe + 20 SAS3 opt. via AOC
• 4 GbE via AOC, 1 dedicated IPMI
• 1 VGA, 1 COM, 2 USB 3.0 (rear)
• 4 heavy duty 8cm PWM fans
• 1600W (1+1) Redundant Titanium Level (96%) Power Supplies

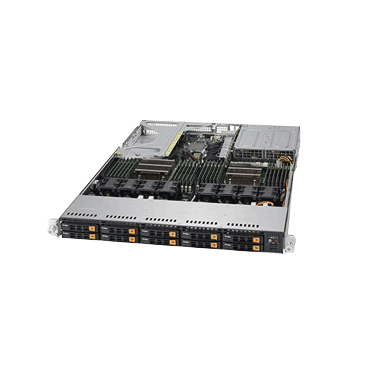

Supermicro UltraServers SYS-1028U-TN10RT+

SYS-1028U-TN10RT+

Titanium, 96% Efficiency Power Supplies 10x 2.5" NVMe support 24 DDR4 DIMM 2x 10GBase-T

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 10x 2.5" Hot-swap bays; 4 NVMe/SAS3 hybrid + 6 NVMe ports
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• 3 PCI-E 3.0 x8 slots (2 FH 10.5" L, 1 LP)
• 2x 10GBase-T, 1 Video, 1 COM/Serial, 5 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 8 heavy duty fans w/ optimal fan speed control
• 1000W Redundant Titanium Level (96%) Power Supplies

Supermicro UltraServers SYS-2028U-TN24R4T+

SYS-2028U-TN24R4T+

Titanium, 96% Efficiency Power Supplies 24 NVMe support 4x 10GBase-T

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 24x 2.5" Hot-swap NVMe bays (4 hybrid ports - optional SAS3 support via AOC); 2x 2.5" Hot-swap SATA3 drive bays (rear)
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• 2 PCI-E 3.0 x16 slots (FH 10.5" L), 1 PCI-E 3.0 x8 (LP) slot
• 4x 10GBase-T ports, 1 dedicated IPMI, 1 Video, 1 COM, 5 USB 3.0 (2 rear, 2 via header, 1 Type A)
• System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
• 4x 8cm heavy duty PWM fans
• 1600W Redundant Titanium Level (96%) Power Supplies

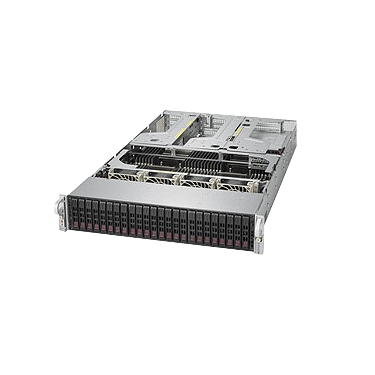

Supermicro UltraServers SYS-2048U-RTR4

SYS-2048U-RTR4

Titanium, 96% Efficiency Power Supplies 11x PCI-E 3.0, 4x GbE 24x 2.5" drive bays for Flexible Storage Opt.

• Mission Critical applications, Virtualization, HPC, and Data Center
• Quad Intel® Xeon® processor E5-4600 v3 family 4-Way (18-Core) with QPI up to 9.6GT/s
• 11 PCI-E 3.0 total: 9 PCI-E 3.0 x8 and 2 PCI-E 3.0 x16 slots
• 48 DIMM slots; up to 3TB DDR4-2400MHz ECC memory
• 24x 2.5" Hot-swap drive bays: 8 SATA3 default, 4 NVMe + 20 SAS3 optional via AOC
• 4 GbE (via AOC, other opt. available), 1 dedicated IPMI, 1 Video, 1 COM, 5 USB 3.0 (2 rear, 2 via header, 1 Type A), 2 USB 2.0
• System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
• 4x 8cm heavy duty PWM fans
• 1000W Redundant Titanium Level (96%) Power Supplies

Supermicro UltraServers SYS-2028U-TR4+,SYS-2028U-TR4T+,SYS-2028U-TRT+,SYS-2028U-TRTP+

SYS-2028U-TR4+
SYS-2028U-TR4T+
SYS-2028U-TRT+
SYS-2028U-TRTP+

Titanium, 96% Efficiency Power Supplies 24x 2.5" SATA3/SAS3 GbE/10GBase-T/10G SFP+

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 24x 2.5" Hot-swap Bays; Optional 24 SAS3
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• 1 PCI-E 3.0 x16 & 7 PCI-E 3.0 x8 slots (5 FH, 2 LP) 1 PCI-E 3.0 x16 & 6 PCI-E 3.0 x8 slots (4 FH, 2 LP) 2028U-TR4T+
• 4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T (-TRT+) / 2x 10G SFP+ (-TRTP+), 1 Video, 1 COM/Serial, 5 USB 3.0 (2 rear, 2 onboard header, 1 Type A)
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 1000W Redundant Titanium Level (96%) Power Supplies

Supermicro UltraServers SYS-6028U-TR4+,SYS-6028U-TR4T+,SYS-6028U-TRT+,SYS-6028U-TRTP+

SYS-6028U-TR4+
SYS-6028U-TR4T+
SYS-6028U-TRT+
SYS-6028U-TRTP+

Titanium, 96% Efficiency Power Supplies 12x 3.5" Drive Bays Opt. 12x SAS3 GbE/10GBase-T/10G SFP+

• Low-latency computing, Low-Latency/High Frequency Trading
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 12x 3.5" Hot-swap Bays; Optional 12 SAS3
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• 1 PCI-E 3.0 x16 & 7 PCI-E 3.0 x8 slots (5 FH, 2 LP) 1 PCI-E 3.0 x16 & 6 PCI-E 3.0 x8 slots (4 FH, 2 LP) 6028U-TR4T+
• 4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T (-TRT+) / 2x 10G SFP+ (-TRTP+), 1 Video, 1 COM/Serial, 5 USB 3.0 (2 rear, 2 onboard header, 1 Type A)
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 1000W Redundant Titanium Level (96%) Power Supplies

Supermicro UltraServers SYS-6028UX-TR4

SYS-6028UX-TR4

Titanium, 96% Efficiency Power Supplies 12x 3.5" drive bays: SATA default, SAS3 Opt. Opt. 4 NVMe via AOC 4 GbE LAN

• Remote Workstation, EDA/CAD license server, High Performance single node compute
• Dual Intel® Xeon® processor E5-2600 v4/v3 family; Socket R3 (LGA 2011)
• 12x 3.5" Hot-swap drive bays: SATA3 default, SAS3 Optional, 4 Optional NVMe via AOC
• 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• 3 PCI-E 3.0 x16 (FHFL), 3 PCI-E 3.0 x8 (1 in x16, 1 LP, 1 internal LP)
• 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 1000W Redundant Titanium Level (96%) Power Supplies
• Hyper-Speed hardware acceleration technology

Supermicro UltraServers SYS-6028U-E1CNR4T+,SYS-6028U-E1CNRT+

SYS-6028U-E1CNR4T+
SYS-6028U-E1CNRT+

Titanium, 96% Efficiency Power Supplies 12x 3.5" SAS3 via Expander & AOC, 4 NVMe 24 DDR4 DIMM 4x/2x 10GBase-T

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 12x 3.5" Hot-swap SAS3 via Expander and AOC; 4 NVMe
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• SYS-6028U-TNRT+: 7 PCI-E 3.0 x8 slots (5 FH, 2 LP) SYS-6028U-TNR4T+: 6 PCI-E 3.0 x8 slots (4 FH, 2 LP)
• 4x 10GBase-T (-E1CNR4T+) / 2x 10GBase-T (-E1CNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 1000W Redundant Titanium Level (96%) Power Supplies

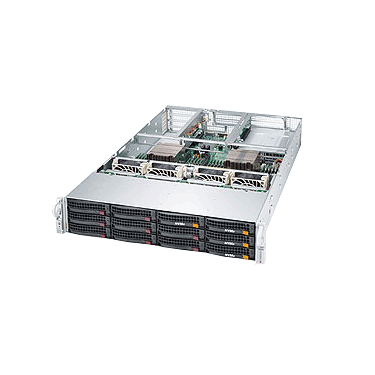

Supermicro UltraServers SYS-6028U-TNR4T+,SYS-6028U-TNRT+

SYS-6028U-TNR4T+
SYS-6028U-TNRT+

Titanium, 96% Efficiency
Power Supplies
12x 3.5" Drive bays
4 NVMe ports + 8 SATA3 ports
24 DDR4 DIMM
4x/2x 10GBase-Te

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 12x 3.5" Hot-swap Bays; 4 NVMe ports + 8 SATA3 ports; 12 SAS3 ports optional via AOC
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• SYS-6028U-TNRT+: 7 PCI-E 3.0 x8 slots (5 FH, 2 LP) SYS-6028U-TNR4T+: 6 PCI-E 3.0 x8 slots (4 FH, 2 LP)
• 4x 10GBase-T (-TNR4T+) / 2x 10GBase-T (-TNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 1000W Redundant Titanium Level (96%) Power Supplies

Supermicro UltraServers SYS-2028U-E1CNR4T+,SYS-2028U-E1CNRT+

SYS-2028U-E1CNR4T+
SYS-2028U-E1CNRT+

Titanium, 96% Efficiency Power Supplies 24x 2.5" SAS3 via Expander & AOC, 4 NVMe 24 DDR4 DIMM 4x/2x 10GBase-T

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 24x 2.5" Hot-swap SAS3 via Expander and AOC; 4 NVMe
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• 7 PCI-E 3.0 x8 slots (5 FH, 2 LP) (-E1CNRT+) 6 PCI-E 3.0 x8 slots (4 FH, 2 LP) (-E1CNR4T+)
• 4x 10GBase-T (-E1CNR4T+) / 2x 10GBase-T (-E1CNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 1000W Redundant Titanium Level (96%) Power Supplies

Supermicro UltraServers SYS-2028U-TNR4T+,SYS-2028U-TNRT+

SYS-2028U-TNR4T+
SYS-2028U-TNRT+

Titanium, 96% Efficiency Power Supplies 24x 2.5" Drive bays 4 NVMe ports + 8 SATA3 ports 24 DDR4 DIMM 4x/2x 10GBase-T

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 24x 2.5" Hot-swap Bays; 4 NVMe ports + 8 SATA3 ports; 24 SAS3 ports optional via AOC
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• 7 PCI-E 3.0 x8 slots (5 FH, 2 LP) (-TNR4T+) 6 PCI-E 3.0 x8 slots (4 FH, 2 LP) (-TNRT+)
• 4x 10GBase-T (-TNR4T+) / 2x 10GBase-T (-TNRT+), 1 Video, 1 COM/Serial, 5 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 1000W Redundant Titanium Level (96%) Power Supplies

Supermicro UltraServers SYS-1028U-TNRTP+,SYS-1028U-TNR4T+,SYS-1028U-TNRT+

SYS-1028U-TNRTP+
SYS-1028U-TNR4T+
SYS-1028U-TNRT+

10x 2.5" Drive bays 2 NVMe/SATA3 hybrid ports + 8 SATA3 ports 24 DDR4 DIMM 4x/2x 10GBase-T

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 10x 2.5" Hot-swap bays; 2 NVMe/SATA3 hybrid + 8 SATA3 ports; 8 SAS3 ports optional via AOC
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2x 10G SFP+ (-TNRTP+) / 4x 10GBase-T (-TNR4T+) / 2x 10GBase-T (-TNRT+), 1x Video, 1x COM/Serial, 5x USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies

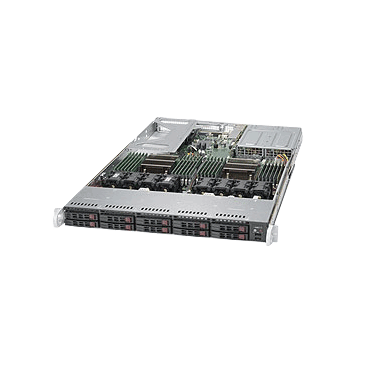

Supermicro UltraServers SYS-1028U-E1CR4+,SYS-1028U-E1CRTP+

SYS-1028U-E1CR4+
SYS-1028U-E1CRTP+

10x 2.5" Drive bays SAS3 via AOC Flexible Network Opt.

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 10x 2.5" Hot-swap Bays; 10x SAS3 via optional AOC
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2x 10G SFP+ and 2 GbE (-E1CRTP+) / 4 GbE (-E1CR4+), 1 Video, 1 COM/Serial, 5 USB 3.0 (2 rear, 2 front, 1 Type A)
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 5 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies

Supermicro UltraServers SYS-1028U-TR4+,SYS-1028U-TR4T+,SYS-1028U-TRT+

SYS-1028U-TR4+
SYS-1028U-TR4T+
SYS-1028U-TRT+

10x 2.5" SATA3 or Opt. 8 SAS3 Flexible Network Opt.

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 10x 2.5" Hot-swap Bays; 10 SATA3 or Optional 8 SAS3
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T (-TRT+), 1 Video, 1 COM/Serial, 5 USB 3.0 (2 rear, 2 front panel, 1 Type A)
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies

Supermicro UltraServers SYS-6018U-TR4+,SYS-6018U-TR4T+,SYS-6018U-TRT+,SYS-6018U-TRTP+

SYS-6018U-TR4+
SYS-6018U-TR4T+
SYS-6018U-TRT+
SYS-6018U-TRTP+

4x 3.5" SATA3 Flexible Network Opt.

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 4x 3.5" Hot-swap SATA3 HDD Bays
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz
• 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 4 GbE (-TR4+) / 4x 10GBase-T (-TR4T+) / 2x 10GBase-T (-TRT+) / 2x 10G SFP+ (-TRTP+), 1 Video, 1 COM/Serial, 5 USB 3.0 (2 rear, 2 onboard header, 1 Type A)
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies

Supermicro UltraServers SYS-1028UX-LL1-B8

SYS-1028UX-LL1-B8

8x 2.5" SAS3 + 2 SATA3 or Opt. 2 NVMe via AOC 4 GbE LAN

• Optimized for Low-Latency/Low-Jitter applications with BIOS optimizations achieving 12% lower median latency and 87% lower 99.99th percentile latency than other E5-2600 v4/v3 servers
• Pre-installed w/ accelerated dual E5-2643 v4 CPUs and 8x 8GB DDR4-2400MHz DIMMs (16 DIMM, up to 1TB DDR4-2400MHz)
• 8x 2.5" Hot-swap SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
• 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
• 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies
• Hyper-Speed hardware acceleration technology

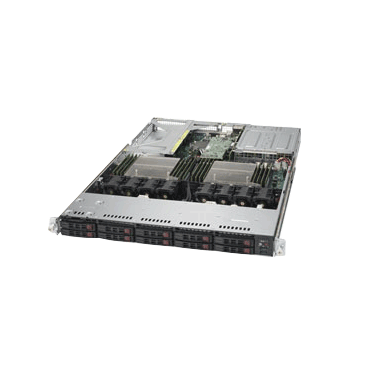

Supermicro UltraServers SYS-1028UX-LL2-B8

SYS-1028UX-LL2-B8

8x 2.5" SAS3 + 2 SATA3 or Opt. 2 NVMe via AOC 4 GbE LAN

• Optimized for Low-Latency/Low-Jitter applications with BIOS optimizations achieving 12% lower median latency and 87% lower 99.99th percentile latency than other E5-2600 v4/v3 servers
• Pre-installed w/ accelerated dual E5-2687W v4 CPUs and 8x 8GB DDR4-2400MHz DIMMs (16 DIMM, up to 1TB DDR4-2400MHz)
• 8x 2.5" Hot-swap SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
• 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
• 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies
• Hyper-Speed hardware acceleration technology

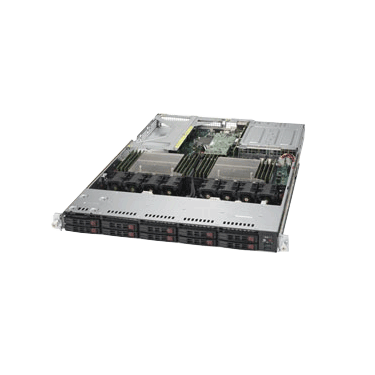

Supermicro UltraServers SYS-1028UX-LL3-B8

SYS-1028UX-LL3-B8

8x 2.5" SAS3 + 2x SATA3 or Opt. 2x NVMe via AOC 4x GbE LAN

• Optimized for Low-Latency/Low-Jitter applications with BIOS optimizations achieving 12% lower median latency and 87% lower 99.99th percentile latency than other E5-2600 v4/v3 servers
• Pre-installed w/ accelerated dual E5-2689 v4 CPUs and 8x 8GB DDR4-2400MHz DIMMs (16 DIMM, up to 1TB DDR4-2400MHz)
• 8x 2.5" Hot-swap SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
• 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
• 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies
• Hyper-Speed hardware acceleration technology

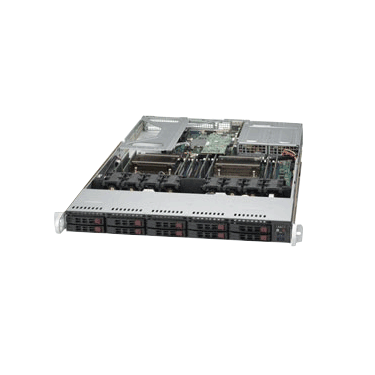

Supermicro Ultra Servers SYS-1028UX-CR-LL1

SYS-1028UX-CR-LL1

8x 2.5" SAS3 + 2 SATA3 or Opt. 2 NVMe via AOC 4 GbE LAN

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2643 v3; QPI up to 9.6GT/s
• 8x 2.5" Hot-swap SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
• Default: 8x 8GB 2133MHz DDR4; 16 DIMM slots; up to 1TB DDR4
• 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
• 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies

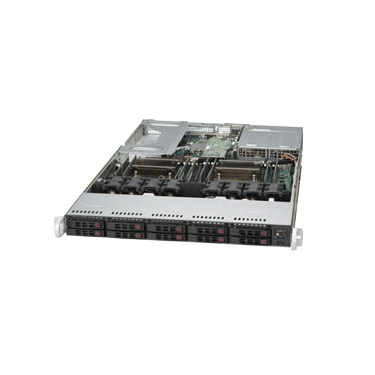

Supermicro UltraServer SYS-1028UX-CR-LL2

SYS-1028UX-CR-LL2

8x 2.5" SAS3 + 2 SATA3 or Opt. 2 NVMe via AOC 4 GbE LAN

• Virtualization Hosting, Cloud Computing, Data Center
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2687W v3; QPI up to 9.6GT/s
• 8x 2.5" Hot-swap SAS3 + 2 SATA3 or 2 Optional NVMe via AOC
•Default: 8x 8GB 2133MHz DDR4; 16 DIMM slots; up to 1TB DDR4
• 2 PCI-E 3.0 x16 (FHFL), 2 PCI-E 3.0 x8 (LP, 1 SAS3 integrated)
• 4 GbE, 1 Video, 1 COM/Serial, 5 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Platinum Level Power Supplies
