Supermicro SYS-1028UX-CR-LL2 1U Rackmount SuperServer NVME

Call for price.

SKU:SYS-1028UX-CR-LL2

Quick Overview:

Key Features:
• Support Hyper-Speed
• Dual Intel® Xeon® processor E5-2687W v3 (Haswell)
• Default: 8x 8GB 2133MHz DDR4, up to DDR4- 2400†MHz ; 16x DIMM slots
• Expansion slots via riser card
• 2x PCI-E 3.0 x16, Full-height Full-length, 1x PCI-E 3.0 x8, Low-profile, 1x PCI-E 3.0 x8 SAS3 integrated
• 4x Gigabit Ethernet LAN ports
• Integrated IPMI 2.0 with KVM and Dedicated LAN

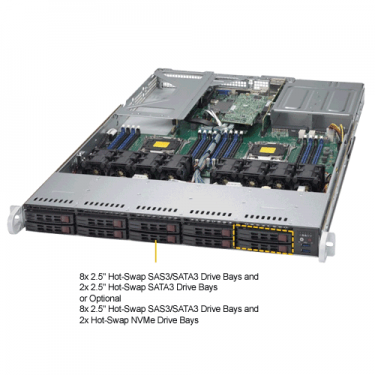

• 10x 2.5" Hot-swap Drive Bays: 8x SAS3 (LSI 3108), 2x SATA3, 2x NVMe ports support via optional Ultra Riser card
• 8x heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). At least one low-latency NIC from this list must be selected and installed into the system. Please contact your Will Jaya sales rep for special requirements.

Description

Details

SuperServer SYS-1028UX-CR-L21(Complete System Only)

Supermicro 1028UX-CR-LL2 Dual Xeon E5-2687W v3 (Haswell), 750W (Redundant), 16 DIMM slots, up to 8X 8GB DDR4, 10x 2.5" Hot-swap Drive Bay, Rackmount Server Barebone

Product SKU
SYS-1028UX-CR-LL2	• SuperServer 1028UX-CR-LL2 (Black)

Motherboard
	Super X10DRU-XLL

Processor/Cache
CPU	• Intel® Xeon® processor E5-2687W v3 • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 10 Cores / Up to 25MB Cache
System Bus	• QPI up to 9.6 GT/s
Note	• BIOS version 2.0 or above is required

System Memory
Memory Capacity	• 8x 8GB DDR4 2133MHz (Default) • 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SAS	• LSI 3108 SAS3 (12Gbps) controllers; RAID 0, 1, 5, 6, 10, 50 support
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Graphics	• ASPEED AST2400 BMC

Input/Output
SATA	• 2x SATA3 (6Gbps) ports
SAS	• 8x SAS3 (12Gbps) ports
NVMe	• 2x NVMe ports support via optional Ultra Riser card (AOC-URN2-i2XT)
LAN	• 4x RJ45 Gigabit Ethernet ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 5x USB 3.0 ports (2 rear, 2 front, 1 Type A)
Video	• 1x VGA Connector
Serial Port	• 1x Fast UART 16550 serial • 1x COM port (rear)

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-119UTS-R751P-T

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 27.8" (706mm)
Gross Weight	• 48 lbs (21.8 kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset Button
LED	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED

Expansion Slots
PCI-Express	Expansion slots via riser card: • 2x PCI-E 3.0 x16, Full-height Full-length, up to 10.5" • 1x PCI-E 3.0 x8, Low-profile • 1x PCI-E 3.0 x8 SAS3 integrated

Drive Bays
Hot Swap	• 8x 2.5" Hot-swap SAS3 drive bays • 2x 2.5" Hot-swap SATA3 drive bays • 1x PCI-E 3.0 x8, Low-profile • Optional NVMe support: 2x NVMe via AOC-URN2-I2XT (w/ 2x 10GBase-T ports)

System Cooling
Fans	• 8x heavy duty fans with optimal fan speed control
Air Shroud	• 1x Air Shroud

Power Supply
	750W Redundant Power Supplies with PMBus
Total Output Power	•750W
Dimension (W x H x L)	• 73.5 x 40 x 203 mm
Input	• 100-127Vac / 9.5A Max / 47-63Hz • 200-240Vac / 4.5A Max / 47-63Hz
+12V	• Max: 62.5A / Min: 0A
12V SB	• Max: 2.1A / Min: 0A
Output Type	• 25 Pairs Gold Finger Connector
Certification	• Platinum Level (94%)

PC Health Monitoring
Voltage	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. • CPU Core 6-Phase-switching voltage regulator
FAN	• Total of ten 4-pin PWM fans • 10x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 10x Fan Connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• Power Fail / Overheat LED • Suspend-state Indicator LED • UID LEDED
Other Features	• SDDC Support

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 30°C (50°F to 86°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
