SuperServer 1028U-E1CRTP+ (Complete System Only)

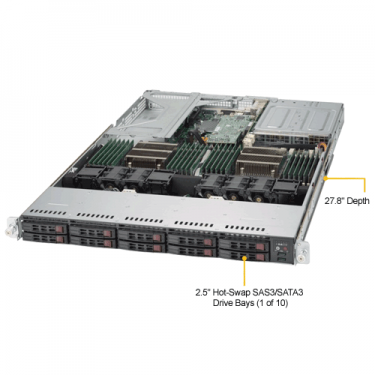

Supermicro SYS-1028U-E1CRTP+ 1U Rackmount Server Barebone with 750W Redundant Power Supplies Platinum Level (94%), 10x 2.5"" Hot-swap drives supported via expander; 4 using Supemricro Super X10DRU-i+ Server Motherboard and Supermicro CSE-119UTS-R751P-T 1U Rackmount Server Chassis.
Product SKU |
|
---|---|
SYS-1028U-E1CRTP+ | • SuperServer 1028U-E1CRTP+ (Black) |
Motherboard |
|
---|---|
Super X10DRU-i+ |
Processor/Cache |
|
---|---|
CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011) |
Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
System Bus | • QPI up to 9.6 GT/s |
Note | • BIOS version 2.0 or above is required |
• Please contact WillJaya Technical support for additional information |
System Memory |
|
---|---|
Memory Capacity |
• 24x 288-pin DDR4 DIMM slots • Up to 3TB† ECC 3DS LRDIMM, 768GB ECC RDIMM |
Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
DIMM Sizes |
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
Memory Voltage | • 1.2 V |
Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
---|---|
Chipset | • Intel® C612 chipset |
SATA | • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
IPMI |
• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
Network Connectivity | • 2x GbE and 2x SFP+ ports via AOC-URN2-I4GXS • Intel® i350 Gigabit Ethernet Controller • Intel® X710 10G SFP+ • 1x Realtek RTL8201N PHY (dedicated IPMI) |
Graphics | • ASPEED AST2400 BMC |
Input/Output |
|
---|---|
SAS |
• 10x SAS3 ports support via expander and storage Add-on Cards AOC-S3108L-H8iR-16DD (12Gbps SAS3/RAID 0, 1, 5, 6, 10, 50, 60, 2GB DDR3 cache, PCI-E Gen3 16 HDD) AOC-S3108-H8iR (12Gbps SAS3/RAID 0, 1, 5, 6, 10, 50, 60, 2GB DDR3 cache, PCI-E Gen3) AOC-S3008L-L8i (12Gbps SAS3/RAID 0,1 and 10, PCI-E Gen3) AOC-S3008L-L8e (12Gbps SAS3/HBA, PCI-E Gen3) |
LAN |
• 2x RJ45 GbE LAN ports • 2x 10G SFP+ ports • 1x RJ45 Dedicated IPMI LAN port |
USB | • 5x USB 3.0 ports (2 rear, 2 front, 1 Type A) |
Video | • 1x VGA Connector |
Serial Port | • 1x Serial header |
System Bios |
|
---|---|
Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
Bios Features |
• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1 |
Management |
|
---|---|
Software |
• SuperDoctor® 5 • Intel® Node Manager 3.0 • Watch Dog • NMI • SUM and SSM • Optional IPMI 1.5 / 2.0 |
Power Configuration |
• ACPI Power Management • Power-on mode for AC power recovery |
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • CSE-119UTS-R751P-T |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 27.82" (707mm) |
Gross Weight | • 41 lbs (18.6 kg) |
Available Color | • Black |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset Button |
LED |
• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED |
Expansion Slots |
|
---|---|
PCI-Express |
• 2x PCI-E 3.0 x16 slots (Full-height, 10.5" L) • 2x PCI-E 3.0 x8 slots (Low-profile, 1 internal) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
Drive Bays |
|
---|---|
Hot Swap | • 10x 2.5" Hot-swap drives supported via expander |
System Cooling |
|
---|---|
Fans |
• 6x heavy duty fans with optimal fan speed control • 2x additional fans optional |
Air Shroud | • 1x Air Shroud |
Power Suplly |
|
---|---|
750W Redundant AC-DC Power Supplies, +12V/+12Vsb output | |
AC Input | • 100-127Vac, 50-60Hz • 200-240Vac, 50-60Hz |
+12V | • Max: 62.5A & Min: 0A (100Vac-127Vac) • Max: 62.5A & Min: 0A (200Vac-240Vac) |
12Vsb | • Max: 2.1A / Min: 0A |
Certification | • Platinum Level |
PC Health Monitoring |
|
---|---|
Voltage |
• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. • 5+1 Phase-switching voltage regulator |
FAN |
• 8x 4-pin fan headers • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
Temperature |
• Support to monitor Supermicro AOC temperatures from IPMI or SD 5 • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x Fan Connectors • Thermal Monitor 2 (TM2) support • PECI |
LED | • Memory DIMM ECC error LEDs • CPU / System Overheat LED • Suspend static indicator LED • UID/Remote UID |
Other Features | • 4x 8-pin GPU power connectors • Chassis intrusion detection • Chassis intrusion header • SDDC Support • RoHS |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
