Supermicro SuperServer SYS-2029U-TRTP
Product SKU |
|
|---|---|
| SYS-2029U-TRTP | • SuperServer 2029U-TRTP (Black) |
Motherboard |
|
|---|---|
| Super X11DPU | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s • Support CPU TDP 70-205W |
| Cores | • Up to 28 Cores with Intel® HT Technology |
System Memory |
|
|---|---|
| Memory Capacity |
• 24 DIMM slots • Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C621 chipset |
| SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Connectivity |
• 2 10G SFP+ ports via AOC-2UR68-i2XS (Intel® 82599ES) |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | • ASPEED AST2500 BMC |
Input/Output |
|
|---|---|
| SATA | • 14 SATA3 (6Gbps) ports |
| LAN | • 2 10G SFP+ ports • 1 RJ45 Dedicated IPMI LAN port |
| USB | • 5 USB 3.0 ports (2 rear, 2 onboard header, 1 Type A) |
| Video | • 1 VGA Connector |
| Serial Port | • 1 Serial header |
| DOM | • 2 SuperDOM (Disk on Module) ports |
System BIOS |
|
|---|---|
| BIOS Type | • AMI 32Mb SPI Flash ROM |
Management |
|
|---|---|
| Software |
• Intel® Node Manager • Redfish API • IPMI 2.0 • KVM with dedicated LAN • NMI • SSM, SPM, SUM • SuperDoctor® 5 |
| Power Configurations | • ACPI Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator |
| FAN | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-219U2AC4-R1K02-T |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 27.76" (705mm) |
| Gross Weight | • 72 lbs (32.7 kg) |
| Available Color | • Black |

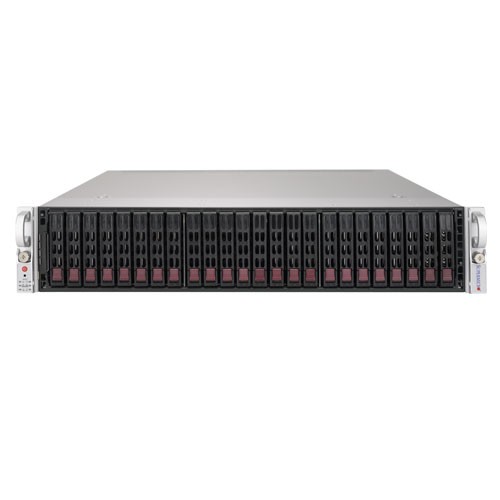

Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED |
• Power status LED • Hard drive activity LED • Network activity LEDs • System information (overheat/UID) LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 1 PCI-E 3.0 x16 (FH, 10.5" L) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
Drive Bays |
|
|---|---|
| Hot-swap |
• 24 Hot-swap 2.5" drive bays;
|
Backplane |
|
|---|---|
| • 2U SAS/SATA backplane | |
System Cooling |
|
|---|---|
| Fans | • 4 Heavy duty 8cm PWM fans |
Power Supply |
|
|---|---|
| 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | • 800W/1000W |
| Dimension
(W x H x L) |
• 73.5 x 40 x 203 mm |
| Input | • 100-127Vac / 9.8 - 7A / 50-60Hz • 200-240Vac / 7 - 5A / 50-60Hz |
| +12V | • Max: 66.7A / Min: 0A (100-127Vac) • Max: 83A / Min: 0A (200-240Vac) |
| 12Vsb | • Max: 2.1A / Min: 0A |
| Output Type | • 25 Pairs Gold Finger Connector |
| Certification | • 80 Plus Titanium Level |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) |
