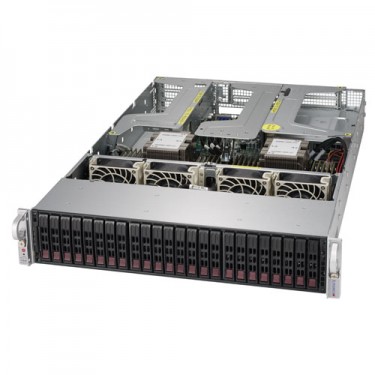

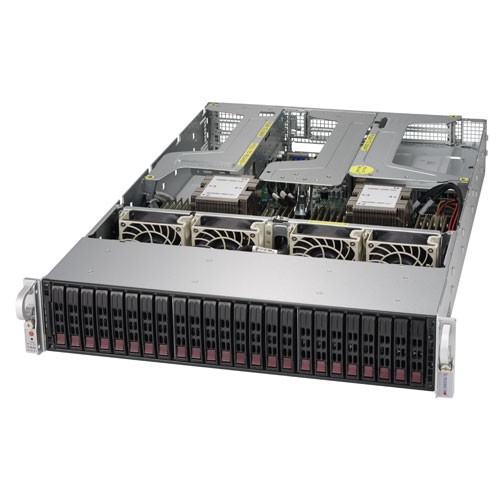

  • Supermicro 2U Rackmount SYS-2029U-E1CRTP - Angle

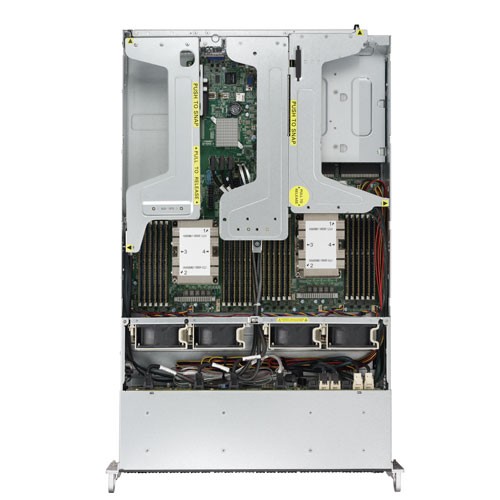

  • Supermicro 2U Rackmount SYS-2029U-E1CRTP - Top

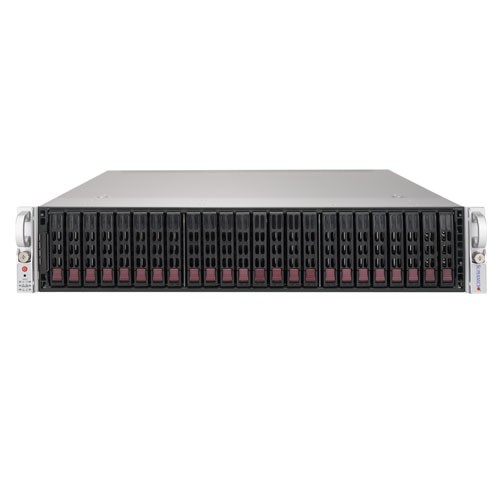

  • Supermicro 2U Rackmount SYS-2029U-E1CRTP - Front

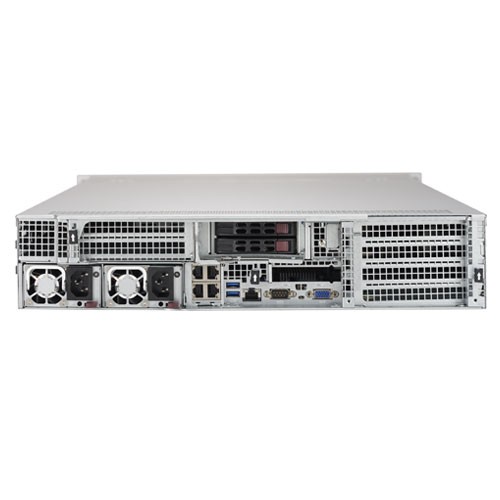

  • Supermicro 2U Rackmount SYS-2029U-E1CRTP - Rear

Supermicro 2U Rackmount UltraServer SYS-2029U-E1CRTP NVME

Call for price.
SKU:SYS-2029U-E1CRTP

Quick Overview:

Key Features:
• Flexible Networking Options
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors,Dual UPI up to 10.4GT/s
• Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
• 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
  5 PCI-E 3.0 x8 slots (FH, 10.5" L),
  1 PCI-E 3.0 x8 slot (LP),
  1 PCI-E 3.0 x8 slot (internal LP)
• 2 10G SFP+ Ethernet ports
• 24 Hot-swap 2.5" drive bays: 24 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe)
• 4 Heavy duty 8cm PWM fans
• 1000W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 2 DIMM, 1 HDD/NVMe and 1 SIOM card per node). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro SuperServer SYS-2029U-E1CRTP
Product SKU
• SuperServer 2029U-E1CRTP (Black)
Motherboard
     Super X11DPU
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SAS • SAS3 (12Gbps) via expander + Broadcom 3108/3008 AOC
Network
Connectivity
• 2 10G SFP+ ports via AOC-2UR68-i2XS (Intel® 82599ES)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video • ASPEED AST2500 BMC
Input/Output
SAS • 24 SAS3 ports support via expander and storage Add-on Cards
LAN • 2 10G SFP+ ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 3 USB 3.0 ports (2 rear, 1 Type A)
Video • 1 VGA Connector
Serial Port • 1 Serial header
DOM • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type • AMI 32Mb SPI Flash ROM
Management
Software • Intel® Node Manager
• Redfish API
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
Power Configurations   • ACPI Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature


• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 2U Rackmount
Model CSE-219U2E1C4-R1K02-T
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 27.76" (705mm)
Gross Weight • 72 lbs (32.7 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power status LED
• Hard drive activity LED
• Network activity LEDs
• System information (overheat/UID) LED
Expansion Slots
PCI-Express

• 1 PCI-E 3.0 x16 (FH, 10.5" L)
• 5 PCI-E 3.0 x8 (FH, 10.5" L)
• 1 PCI-E 3.0 x8 (LP)
• 1 PCI-E 3.0 x8 (internal LP)

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap

• 24 Hot-swap 2.5" drive bays: 24 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe)

Note: Storage Add-on card is required

24 Hot-swap 2.5" drive bays: 24 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe)
System Cooling
Fans • 4 Heavy duty 8cm PWM fans
Shroud • 1 Air Shroud
Power Supply
  1000W Redundant Power Supplies with PMBus
Total Output Power • 800W/1000W
Dimension
(W x H x L)
• 73.5 x 40 x 203 mm
Input • 100-127Vac / 9.8 - 7A / 50-60Hz
• 200-240Vac / 7 - 5A / 50-60Hz
+12V • Max: 66.7A / Min: 0A (100-127Vac)
• Max: 83A / Min: 0A (200-240Vac)
12Vsb • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification • 80 Plus Titanium Level
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
