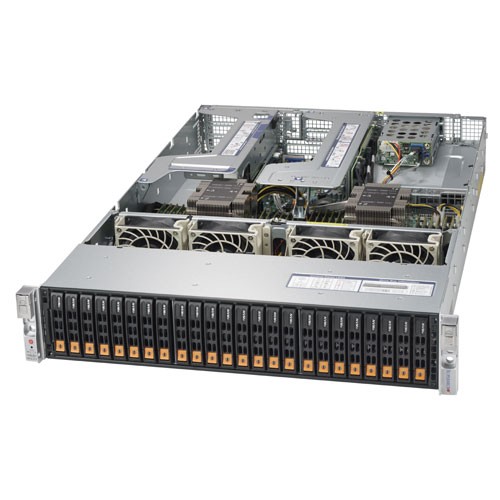

  • Supermicro SYS-2029U-TN24R4T - Angle

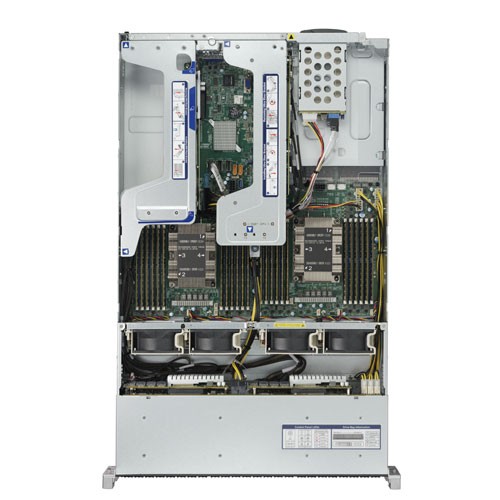

  • Supermicro SYS-2029U-TN24R4T - Top

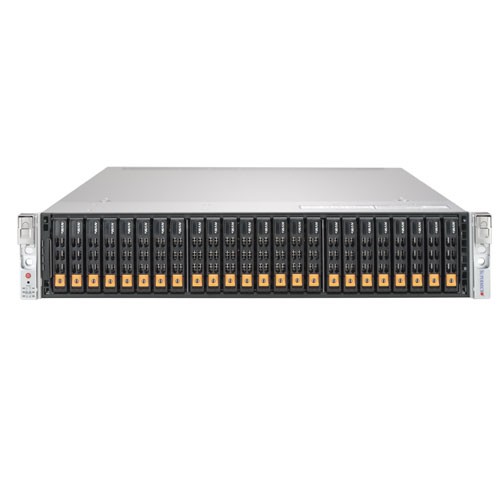

  • Supermicro SYS-2029U-TN24R4T - Front

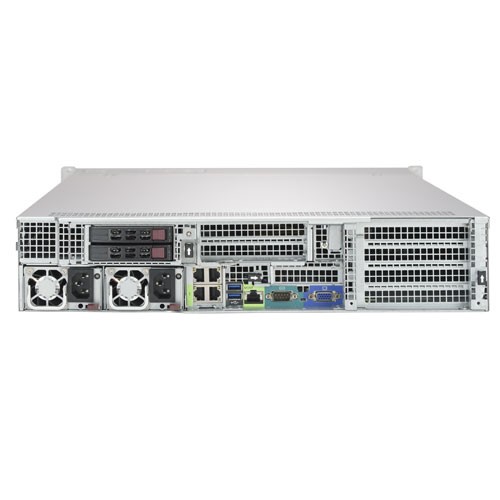

  • Supermicro SYS-2029U-TN24R4T - Rear

Supermicro 2U Rackmount UltraServer SYS-2029U-TN24R4T NVME

$0.00
SKU:SYS-2029U-TN24R4T

Quick Overview:

Key Features:
• Up to 24 NVMe drives supported
• Flexible Networking Options
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP)
• 4 10GBase-T LAN ports with Intel X550
• 24 Hot-swap 2.5" drive bays;
   24 NVMe (4 hybrid ports - SAS3 via opt. AOC),
   2 rear Hot-swap 2.5" drive bays;
   2 internal M.2 (1 SATA3, 1 NVMe)
• 4 Heavy duty 8cm PWM fans
• 1600W High efficiency (96%) Redundant PSU; Titanium Level

Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 2 DIMM, 1 HDD/NVMe and 1 SIOM card per node). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro SuperServer SYS-2029U-TN24R4T
Product SKU
• SuperServer 2029U-TN24R4T (Black)
Motherboard
    Super X11DPU
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
Storage • SATA3 (6Gbps); RAID 0, 1, 5, 10 per node
Network
Connectivity
• 4x 10GBase-T ports via Intel® X550 Ethernet Controller
• 1x Realtek RTL8211E PHY (dedicated IPMI)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video • ASPEED AST2500 BMC
Input/Output
NVME • 24 NVMe ports
LAN • 4 10GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 3 USB 3.0 ports (2 rear, 1 Type A)
Video • 2 VGA ports (1 rear, 1 onboard)
Serial Port • 1 Serial header
DOM • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type • AMI 32Mb SPI Flash ROM
Management
Software • Intel® Node Manager
• Redfish API
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
Power Configurations   • ACPI / APM Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 2U Rackmount
Model CSE-219AC24-R1K62P-N24T
Dimension and Weight
Height • 3.5" (89mm)
Width • 17.2" (437mm)
Depth • 27.76" (705mm)
Gross Weight • 72 lbs (32.7 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• UID button
LED • Power status LED
• Hard drive activity LED
• Network activity LEDs
• System information (overheat/UID) LED
Expansion Slots
PCI-Express

• 2 PCI-E 3.0 x16 (FH, 10.5" L)
• 1 PCI-E 3.0 x8 (LP)

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap

• 24 Hot-swap 2.5" drive bays: 24 NVMe (4 hybrid ports - SAS3 via opt. AOC)
• 2 rear Hot-swap 2.5" SATA drive bays

M.2

• 1 M.2 NVMe (2242/2260/2280*/22110*)
• 1 M.2 SATA (2242/2260/2280*/22110*) via optional SATA cable

* Not supported if installing both NVMe & SATA M.2

System Cooling
Fans • 4 Heavy duty 8cm PWM fans
Power Supply
  1600W Redundant Power Supplies with PMBus
Total Output Power • 1000W/1600W
Dimension
(W x H x L)
• 73.5 x 40 x 203 mm
Input • 100-127Vac / 13 - 9A / 50-60Hz
• 200-240Vac / 10 - 8A / 50-60Hz
+12V • Max: 83.3A / Min: 0A (100-127Vac)
• Max: 133A / Min: 0A (200-240Vac)
12Vsb • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification • 80 Plus Titanium Level
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
