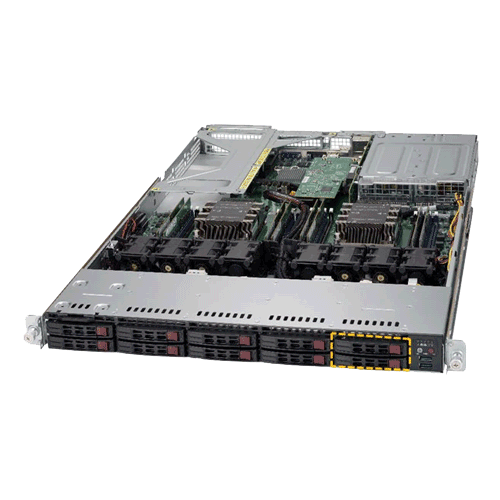

  • Supermicro Ultra SuperServer SYS-1029UX-LL1-S16 Angle

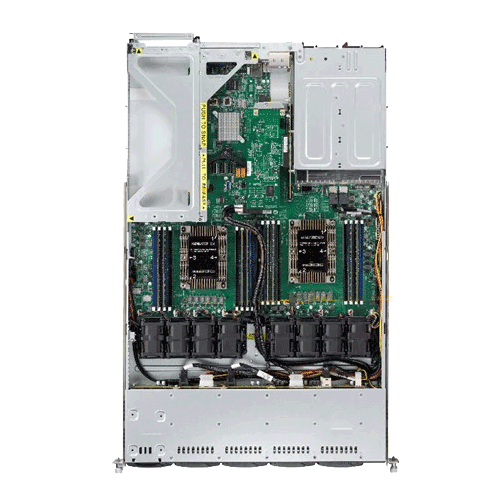

  • Supermicro Ultra SuperServer SYS-1029UX-LL1-S16 Top
  • Supermicro Ultra SuperServer SYS-1029UX-LL1-S16 Front

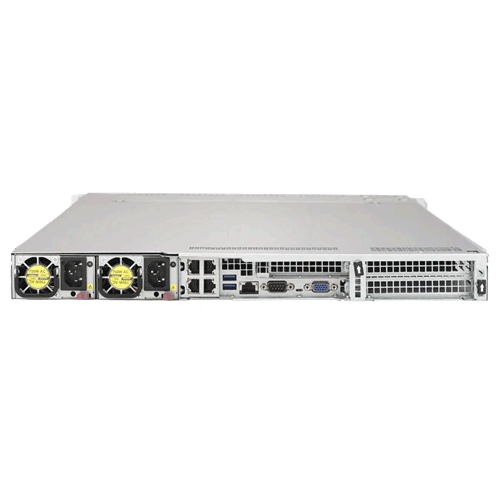

  • Supermicro Ultra SuperServer SYS-1029UX-LL1-S16 Rear

Supermicro Ultra SuperServer SYS-1029UX-LL1-S16 (Complete System Only)

Call for price.
SKU:SYS-1029UX-LL1-S16

Quick Overview:

Key Features:
• Dual socket P
• Supports Intel® Xeon® Scalable Processors
• Up to 2TB of memory
• 8 Hot-swap 2.5" SAS3 drive Bays
• 2 Hot-swap NVMe bays
• 750W Redundant Power Supplies Platinum Level (94%+)

Due to the complexity of integration, this product is sold as a completely assembled system only (including but not limited to CPU, memory, and SSD). At least one low-latency NIC from this list must be selected and installed into the system. Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro Ultra SuperServer SYS-1029UX-LL1-S16 (Complete System Only)

Product SKU
SYS-1029UX-LL1-S16 • SuperServer 1029UX-LL1-S16 (Black)
Motherboard
  • Super X11DPU-XLL
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Intel® Xeon® Gold 6144 included
Cores • Up to 8 Cores with Intel® HT Technology
System Memory
Memory Capacity • 16 DIMM slots
• Up to 2TB ECC 3DS LRDIMM, 2TB ECC RDIMM, DDR4 up to 2666MHz
• 12x 16GB DDR4-2666MHz included
Memoy Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SATA • SATA3 (disabled)
SAS • Broadcom 3108 controller for 8 SAS3 ports
Network Connectivity

• 4 Gigabit Ethernet ports via AOC-UR-i4G (Intel® i350AM4)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics

• ASPEED AST2500 BMC
Input/Output
SAS • 8 SAS3 ports support via integrated 3108 Add-on Card
LAN • 4 RJ45 Gigabit Ethernet ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
Video • 1 VGA port
Serial Port • 1 COM Port (1 rear)
System BIOS
BIOS Type • AMI UEFI
Management
Software • IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
• Watchdog
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 1U Rackmount
Model • CSE-119UTS-R751P-T
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 28.5" (724mm)
Gross Weight • 48 lbs (21.77 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Expansion Slots
PCI-Express

• 2 PCI-E 3.0 x16 (1 Full-height, 10.5" L; 1 Full-height, 10")
• 1 PCI-E 3.0 x8 (Low Profile)
• 1 PCI-E 3.0 x8 (Internal SAS3 integrated 3108)
Drive Bays
Hot-swap

• 8 Hot-swap 2.5" SAS3 drive bays
• 2 Hot-swap 2.5" NVMe
System Cooling
Fans

• 8 heavy duty fans with optimal fan speed control
Power Supply
  750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
AC Input • 100-127Vac, 50-60Hz
• 100-127Vac, 50-60Hz 200-240Vac, 50-60Hz
+12V
 • Max: 62.5A & Min: 0A (100Vac-127Vac)
• Max: 62.5A & Min: 0A (200Vac-240Vac)
12V SB • Max: 2.1A
• Min: 0A
Certification • Platinum Level
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec.












 • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
