SuperServer SYS-6018U-TRT+ (Complete System Only)

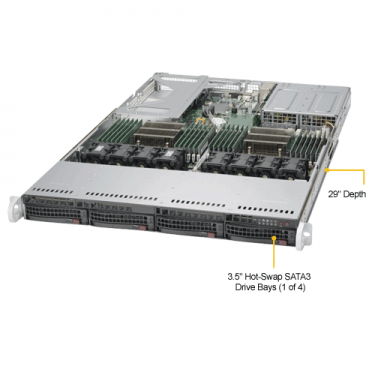

Supermicro 6018U-TRT+ 1U Rackmount Server Barebone with 750W Redundant Power Supplies Platinum Level (94%+), 4x SATA3 (6Gbps) ports, 4x 3.5" Hot-swap Drive Bays, with Supermicro Super X10DRU-i+ Server Motherboard and CSE-819UTQ-R750 1U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-6018U-TRT+ | • SuperServer 6018U-TRT+ (Black) |
Motherboard |
|
|---|---|
| Super X10DRU-i+ | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) * • Dual Socket R3 (LGA 2011) |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | • BIOS version 2.0 or above is required |
| • Please contact WillJaya Technical support for additional information | |
System Memory |
|
|---|---|
| Memory Capacity |
• 24x 288-pin DDR4 DIMM slots • Up to 3TB† ECC 3DS LRDIMM, 768GB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | • 64GB, 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| SATA | • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI |
• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Connectivity | • 2x 10GBase-T ports via AOC-UR-i2XT • Intel® X540 10GBase-T • 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Graphics | • ASPEED AST2400 BMC |
Input/Output |
|
|---|---|
| SATA | • 4x SATA3 (6Gbps) ports |
| LAN |
• 2x RJ45 10GBase-T ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 5x USB 3.0 ports (2 rear, 2 front, 1 Type A) |
| Video | • 1x VGA Connector |
| Serial Port | • 1x Serial header |
| DOM | • 2x SATA DOM (Disk on Module) support with embedded power |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features |
• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1 |
Management |
|
|---|---|
| Software |
• SuperDoctor® 5 • Intel® Node Manager 3.0 • Watch Dog • NMI • SUM and SSM • Optional IPMI 1.5 / 2.0 |
| Power Configuration |
• ACPI Power Management • Power-on mode for AC power recovery |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-819UTQ-R750 |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 29.0" (737mm) |
| Gross Weight | • 41 lbs (18.6 kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset Button |
| LED |
• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 2x PCI-E 3.0 x16 slots (Full-height, 10.5" L) • 2x PCI-E 3.0 x8 slots (Low-profile, 1 internal) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
Drive Bays |
|
|---|---|
| Hot Swap | • 4x 3.5" Hot-swap drive bays |
System Cooling |
|
|---|---|
| Fans |
• 4x heavy duty fans with optimal fan speed control • 4x additional fans optional |
| Air Shroud | • 1x Air Shroud |
Power Supply |
|
|---|---|
| 750W Redundant AC-DC Power Supplies, +12V/+12Vsb output | |
| AC Input |
• 100-127Vac, 50-60Hz • 200-240Vac, 50-60Hz |
| +12V | • Max: 62.5A & Min: 0A (100Vac-127Vac) • Max: 62.5A & Min: 0A (200Vac-240Vac) |
| 12Vsb | • Max: 2.1A / Min: 0A |
| Certification | • Platinum Level (94%) |
PC Health Monitoring |
|
|---|---|
| Voltage |
• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. • 5+1 Phase-switching voltage regulator |
| FAN |
• 8x 4-pin fan headers • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature |
• Support to monitor Supermicro AOC temperatures from IPMI or SD 5 • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x Fan Connectors • Thermal Monitor 2 (TM2) support • PECI |
| LED | • Memory DIMM ECC error LEDs • CPU / System Overheat LED • Suspend static indicator LED • UID/Remote UID |
| Other Features | • 4x 8-pin GPU power connectors • Chassis intrusion detection • Chassis intrusion header • SDDC Support • RoHS |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
