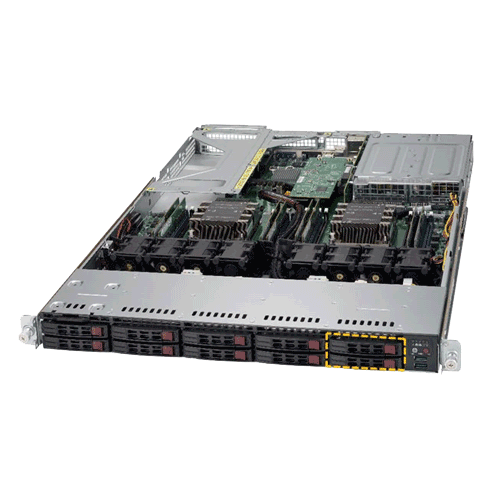

  • Supermicro Ultra SuperServer SYS-1029UX-LL3-S16 Angle

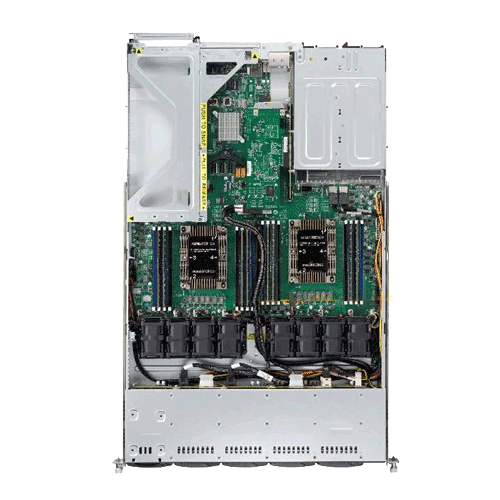

  • Supermicro Ultra SuperServer SYS-1029UX-LL3-S16 Top

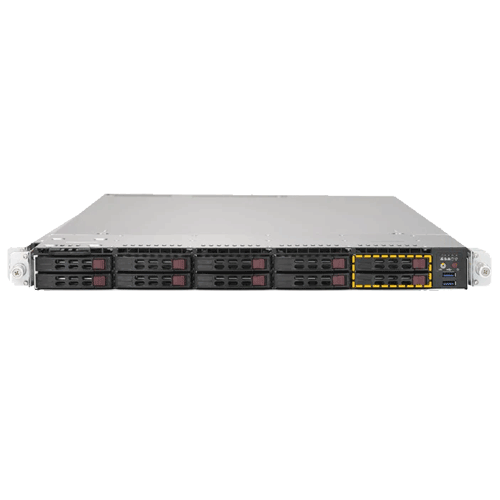

  • Supermicro Ultra SuperServer SYS-1029UX-LL3-S16 Front

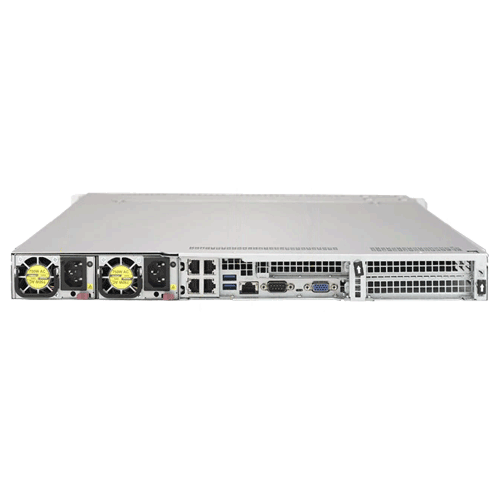

  • Supermicro Ultra SuperServer SYS-1029UX-LL3-S16 Rear

Supermicro Ultra SuperServer SYS-1029UX-LL3-S16 (Complete System Only)

Call for price.
SKU:SYS-1029UX-LL3-S16

Quick Overview:

Key Features:
• Supports Intel® Xeon® Scalable Processors
• Up to 2TB of memory
• 8 Hot-swap 2.5" SAS3 drive bays
• 2 Hot-swap NVMe bays
• 8 heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)

Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro Ultra SuperServer SYS-1029UX-LL3-S16 (Complete System Only)

Product SKU
• SuperServer 1029UX-LL3-S16 (Black)
Motherboard
  • Super X11DPU-XLL
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Intel® Xeon® Gold 6154 included
Cores • Up to 18 Cores with Intel® HT Technology
System Memory
Memory Capacity • 16 DIMM slots
• 16 DIMM slots Up to 2TB ECC 3DS LRDIMM, 2TB ECC RDIMM, DDR4 up to 2666MHz
• 12x 16GB DDR4-2666MHz included
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM

On-Board Devices
Chipset • Intel® C621 chipset
SATA • SATA3 (disabled)
SAS • Broadcom 3108 controller for 8 SAS3 ports
Network Connectivity

• 4 Gigabit Ethernet ports via AOC-UR-i4G (Intel® i350AM4)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

• ASPEED AST2500 BMC

Input/Output
SAS • 8 SAS3 ports support via integrated 3108 Add-on Card
LAN • 4 RJ45 Gigabit Ethernet ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
Video • 1 VGA port
Serial Port • 1 COM Port (1 rear)
System BIOS
BIOS Type

• AMI UEFI

Management
Software

• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
• Watchdog

PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 1U Rackmount
Model CSE-119UTS-R1K02P-T
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 28.5" (724mm)
Gross Weight • 48 lbs (21.77 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED

Expansion Slots
PCI-Express

• 2 PCI-E 3.0 x16 (1 Full-height, 10.5" L; 1 Full-height, 10")
• 1 PCI-E 3.0 x8 (Low Profile)
• 1 PCI-E 3.0 x8 (Internal SAS3 integrated 3108)

Drive Bays
Hot-swap

• 8 Hot-swap 2.5" SAS3 drive bays
• 2 Hot-swap NVMe bays

System Cooling
Fans

• 8 heavy duty fans with optimal fan speed control

Power Supply
  750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
AC Input • 100-127Vac, 50-60Hz
• 200-240Vac, 50-60Hz
+12V
• Max: 62.5A & Min: 0A (100Vac-127Vac)
• Max: 62.5A & Min: 0A (200Vac-240Vac)
12V SB • Max: 2.1A
• Min: 0A
Certification • Platinum Level
Operating Environment
RoHS

• RoHS Compliant

Environmental Spec.













• Operating Temperature: 10°C ~ 30°C (50°F ~ 86°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
