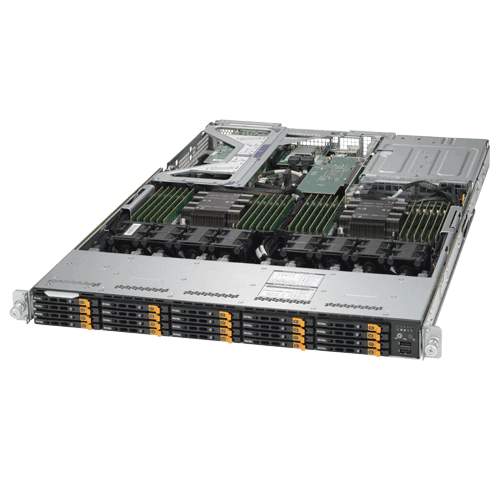

  • Supermicro Ultra SuperServer SYS-1029UZ-TN20R25M Angle

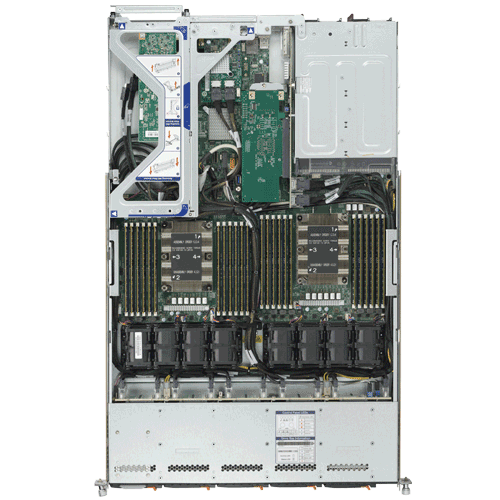

  • Supermicro Ultra SuperServer SYS-1029UZ-TN20R25M Top
  • Supermicro Ultra SuperServer SYS-1029UZ-TN20R25M Front
  • Supermicro Ultra SuperServer SYS-1029UZ-TN20R25M Rear

Supermicro Ultra SuperServer SYS-1029UZ-TN20R25M (Complete System Only)

Call for price.
SKU:SYS-1029UZ-TN20R25M

Quick Overview:

Key Features:
• Supports Intel® Xeon® Scalable Processors
• Up to 3TB of memorry
• 20 Hot-swap 2.5" HDD
• NVMe supports
• 8 Heavy duty fans
• 1600W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 4 DIMMs and 10 NVMe). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro Ultra SuperServer SYS-1029UZ-TN20R25M (Complete System Only)

Product SKU
SYS-1029UZ-TN20R25M • SuperServer 1029UZ-TN20R25M (Black)
Motherboard
  • Super X11DPU-Z+
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connecitivity • 2 25GbE SFP28 ports via AOC-URN4-M2TS (Mellanox ConnectX-4 Lx EN)
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

• ASPEED AST2500 BMC
Input/Output
NVMe • 8 NVMe ports + 2 SAS/SATA3/NVMe Hybrid Ports (from CPU 1)
• 10 NVMe ports (from CPU 2)
LAN • 2 25GbE SFP28 ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 3 USB 3.0 ports (2 rear, 1 Type A)
• 2 USB 2.0 ports (front)
Video • 1 VGA port
Serial Port • 1 Serial header
DOM • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type • AMI 32Mb SPI Flash ROM
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
• WatchDog
Software • ACPI Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature


• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors

Chassis
Form Factor • 1U Rackmount
Model • CSE-116UTQ20-R1K62-T
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 27.8" (706mm)
Gross Weight • 48 lbs (21.8 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System UID button
LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• UID LED
Expansion Slots
PCI-Express

• 2 PCI-E 3.0 x8 slots (FH, FL) For 20 NVMe configuration, only 1 PCI-E 3.0 x8 is available. For 18 NVMe configuration, 2 PCI-E 3.0 x8 will be available.

Drive Bays/Storage
Hot-swap

• 20 Hot-swap 2.5" 7mm drive bays
• 20 NVMe (CPU1: 8 NVMe + 2 NVMe/SAS/SATA3 hybrid ports, CPU2: 10 NVMe ports)
M.2

• 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110)
• 1 M.2 M-Key SATA3 via optional cable CBL-SAST-0538 and plastic stand-off FST-SCRW-0074L (2240/2260/2280/22110)
• 2 M.2 PCI-E 3.0 x4 M-Key NVMe via optional add-on card AOC-SLG3-2M2 (2260/2280/22110)
System Cooling
Fans

• 8 Heavy duty fans with optimal fan speed control
Air Shrouds

• 2 Air Shroud
Power Supply
  1600W Redundant Power Supplies with PMBus
Total Output Power • 1600W/1000W
Dimension
(W x H x L)
 • 73.5 x 40 x 203 mm
Input • 100-127Vac / 13 - 9A / 50-60Hz
• 200-240Vac / 10 - 8A / 50-60Hz
+12V • Max: 83.3A / Min: 0A (100-127Vac)
• Max: 133A / Min: 0A (200-240Vac)
12Vsb • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification • Titanium Level
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
