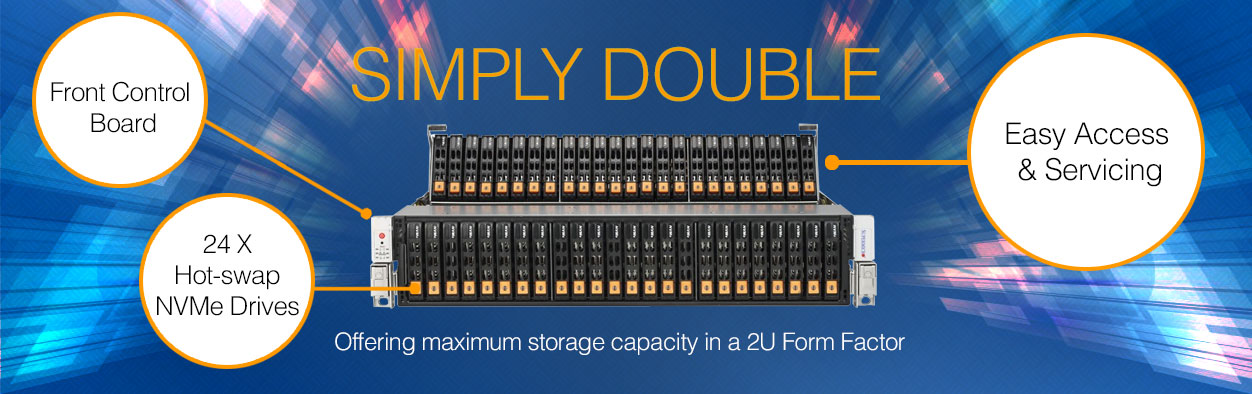

Simply Double Storage
Supermicro 2U SuperStorage Solution in Server or JBOD models. All Flash NVMe SSD or SAS 3.0 HDDs. Patented top Riser Bay system. Supports the New Intel Xeon Scalable Processor.
| Model Number | Features | Technical Specifications | |
 |
SSG-2028R-NR48N |
48 Hot-swap 2.5" NVMe bays + 2 Hot-swap 2.5" drive bays (rear) Titanium, 96% Efficiency Power Supplies | • IOPS Intensive Storage Applications, Database Applications
(MySQL, Casandra), Virtual Storage Environments,
Single Instance Storage & Data Deduplication • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s • 48 Hot-swap 2.5" NVMe bays; 2 Hot-swap 2.5" drive bays (rear) Cable-arm for second row drives' hot-swap access • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz • 1 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots • I/O: SIOM for flexible networking options, 2 USB 3.0 • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port • 5 Hot-swap 80mm redundant PWM cooling fans • 1600W Redundant Titanium Level (96%) Power Supplies |
|
SSG-2028R-E1CR48N |
48 Hot-swap 2.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear) Titanium, 96% Efficiency Power Supplies | • IOPS Intensive Storage Applications, Database Applications
(MySQL, Casandra), Virtual Storage Environments,
Single Instance Storage & Data Deduplication • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s • 48 Hot-swap 2.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access • SAS3 via Broadcom 3108, HW RAID 0, 1, 5, 6, 10, 50, 60 • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots • I/O: SIOM for flexible networking options, 2 USB 3.0 • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port • 5 Hot-swap 80mm redundant PWM cooling fans • 1600W Redundant Titanium Level (96%) Power Supplies |
|
SSG-2028R-E1CR48L |
48 Hot-swap 2.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear) Titanium, 96% Efficiency Power Supplies | • Corporate Database, Data Center, Database Processing &
Storage, Enterprise Server, HPC, iSCSI SAN • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s • 4 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access • SAS3 via Broadcom 3108, HW RAID 0, 1, 5, 6, 10, 50, 60 • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots • I/O: SIOM for flexible networking options, 2 USB 3.0 • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port • 5 Hot-swap 80mm redundant PWM cooling fans • 1600W Redundant Titanium Level (96%) Power Supplies |
|
SSG-6028R-E1CR24L |
24 Hot-swap 3.5" SAS3/SATA3 drive bays + 2 Hot-swap 2.5" drive bays (rear) Titanium, 96% Efficiency Power Supplies | • Corporate Database, Data Center, Database Processing &
Storage, Enterprise Server, HPC, iSCSI SAN • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s • 24 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 Hot-swap 2.5" drive bays (rear); Cable-arm for second row drives' hot-swap access • SAS3 via Broadcom 3008, IT mode controller • 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4-2400MHz • 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots • I/O: SIOM for flexible networking options, 2 USB 3.0 • System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port • 5 Hot-swap 80mm redundant PWM cooling fans • 1600W Redundant Titanium Level (96%) Power Supplies |
|
CSE-826SE1C-R1K02JBOD |
Simply Double JBOD | • Corporate Database, Data Center, Database Processing &
Storage, Enterprise Server, HPC, iSCSI SAN • 24 (12 front + 12 middle) Hot-swap 3.5" SAS3/SATA3 drive bays; Cable-arm for second row drives' hot-swap access • Single Expander Backplane Board supports SAS/SATA HDDs with 12Gb/s throughput • 4 Mini-SAS HD ports for Internal/External Cascading • 5 Hot-swap 80mm redundant PWM cooling fans • 1000W (1+1) Redundant Titanium Level (96%) Power Supplies |
