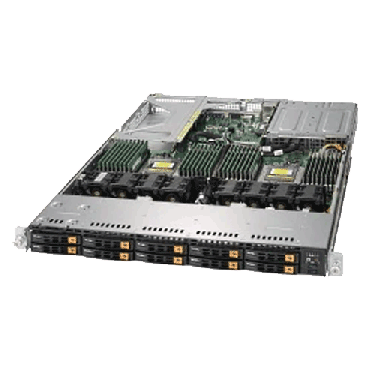

  • Supermicro A+ 1U Servers AS -1123US-TN10RT

Supermicro 1U A+ Servers AS -1123US-TN10RT

Call for price.
SKU:AS-1123US-TN10RT

Quick Overview:

Key Features:
• Dual AMD EPYC™ 7000-Series Processors
• Up to 4TB of memory
• 10 hot-swap 2.5" U.2 NVMe drive baysX
• Integrated IPMI 2.0 + KVM with dedicated AN
• 2x 10GBase-T LAN ports  via Intel® X540
• 1000W Redundant Power Supplies Titanium

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 16 DIMMs, 1 NVMe). Recommended configuration for best performance is at least 24 or 32 Cores per CPU (minimum 48 or 64 Cores Total). Please contact your Will Jaya sales rep for special requirements

Details

Supermicro 1U A+ Servers AS -1123US-TN10RT

Product SKU
• A+ Server 1123US-TN10RT
Motherboard
  • H11DSU-iN
Processor/Cache
CPU • Dual AMD EPYC™ 7000-series Processors
• Socket SP3
Cores • Up to 32 Cores
Chipset • System on Chip (SoC)
System Memory
Memory Capacity • 32 DIMM slots
• Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM
• 8-channel memory bus
Memory Type

• DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs

DIMM Sizes

• 4GB, 8GB, 16GB, 32GB, 64GB, 128GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC
Network Controllers • Intel® X540 Controller
VGA

• ASPEED AST2500 BMC

Expansion Slots
1U • 1 PCI-E 3.0 x16 (FH, 9.5"L) slot
• 1 PCI-E 3.0 x8 (LP) slot
M.2 • 2 Slots
• Interface: PCI-E 3.0 x2
• Form factor: 2280, 22110
Input/Output
NVMe • 10 U.2 NVMe support
LAN • 2x 10GbBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 5 USB 3.0 ports (2 rear + 2 front + 1 Type A)
VGA • 2 VGA ports (1 rear, 1 onboard)
Others • 1 COM port
• 2 SATA DOM power connectors
• TPM 1.2 header
System BIOS
BIOS Type

• AMI 128Mb SPI Flash EEPROM

BIOS Features














• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 5.1
• USB Keyboard Support
• SMBIOS 3.1.1










Chassis
Form Factor • 1U
Model CSE-119UTS-R1K02P-N10T
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 27.82" (707mm)
Gross Weight • 41 lbs (18.6 kg)
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED

Drive Bays
Hot-swap

• 10 hot-swap 2.5" U.2 NVMe drive bays

System Cooling
Fans

• 8 heavy-duty PWM fans with optimal fan speed control

Air Shroud

• 1 Air Shroud

Power Supply
  1000W Redundant Power Supplies with PMBus
Total Output Power • 800W/1000W
Dimension
(W x H x L)
• 73.5 x 40 x 203 mm
Input • 100-127Vac / 9.8 - 7A / 50-60Hz
• 200-240Vac / 7 - 5A / 50-60Hz
• 200-240Vdc / 7 - 5A (for CCC only)
+12V • Max: 66.7A / Min: 0A (100-127Vac)
• Max: 83A / Min: 0A (200-240Vac)
• Max: 83A / Min: 0A (200-240Vdc)
12Vsb • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification • Titanium Level
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
• CPU switching voltage regulator

FAN • Up to 8-fan status tachometer monitoring
• Up to eight 4-pin fan headers
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal control for 8x Fan connectors
• I²C Temperature Sensing Logic
LED • CPU / System Overheat LED
Other Features • Chassis Intrusion Detection
• Chassis Intrusion Header
Operating Environment / Compliance
RoHS

• RoHS Compliant

Environmental Spec.
• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
