Supermicro SuperServer SYS-1029U-TRT
Product SKU |
|
|---|---|
| SYS-1029U-TRT | • SuperServer 1029U-TRT (Black) |
Motherboard |
|
|---|---|
| Super X11DPU | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s • Support CPU TDP 70-205W |
| Cores | • Up to 28 Cores with Intel® HT Technology |
System Memory |
|
|---|---|
| Memory Capacity |
• 24 DIMM slots • Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C621 chipset |
| SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Connectivity | • 2x 10GBase-T ports via AOC-UR-I2XT (Intel® X540) |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | • ASPEED AST2500 BMC |
Input/Output |
|
|---|---|
| SATA |
• 10 SATA3 (6Gbps) ports |
| SAS | • 8 SAS3 ports support via optional Add-on Card |
| LAN | • 2 RJ45 10GBase-T Ethernet ports • 1 RJ45 Dedicated IPMI LAN port |
| USB | • 5 USB 3.0 ports (2 rear, 2 front, 1 Type A) |
| Video | • 2 VGA ports (1 rear, 1 onboard) |
| Serial Port | • 1 Serial header |
System BIOS |
|
|---|---|
| Bios Type | • AMI 32Mb SPI Flash ROM |
Management |
|
|---|---|
| Software |
• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • NMI • SSM, SPM, SUM • SuperDoctor® 5 |
| Power Configuration | • ACPI Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator |
| Fan | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-119UAC2-R751-T |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |

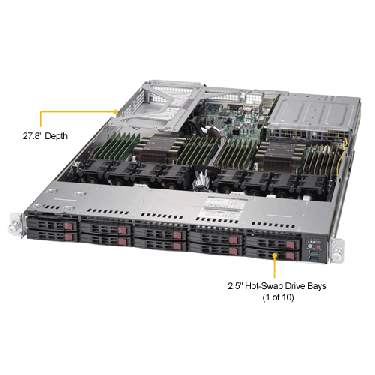

| Depth | • 27.8" (707mm) |
| Gross Weight | • 41 lbs (18.6 kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED |
• Power LED • Hard drive activity LED • Network activity LEDs • System Overheat LED / Fan fail LED / UID LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 2 PCI-E 3.0 x16 (Full-height, 10.5" L) • 2 PCI-E 3.0 x8 (1 LP, 1 internal LP) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
Drive Bays |
|
|---|---|
| Hot Swap | • 10 Hot-swap 2.5" drive bays; 10 SATA3 (2 hybrid ports - 2 NVMe opt.) |
System Cooling |
|
|---|---|
| Fans | • 8 Heavy duty fans with optimal fan speed control |
| Air Shroud | • 1 Air Shroud |
Power Supply |
|
|---|---|
| 750W Redundant AC-DC Power Supplies, +12V/+12Vsb output | |
| AC Input | • 100-127Vac, 50-60Hz • 200-240Vac, 50-60Hz |
| +12V | • Max: 62.5A & Min: 0A (100Vac-127Vac) • Max: 62.5A & Min: 0A (200Vac-240Vac) |
| 12Vsb | • Max: 2.1A • Min: 0A |
| Certification | • 80 Plus Platinum Level |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
Environmental Spec.
|
• Operating Temperature:
10°C to 35°C (50°F to 95°F)
|
