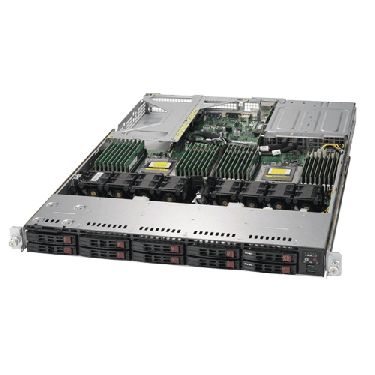

  • Supermicro 1U A+ Servers AS -1123US-TR4 - Angle
  • Supermicro 1U A+ Servers AS -1123US-TR4 - Top
  • Supermicro 1U A+ Servers AS -1123US-TR4 - Front
  • Supermicro 1U A+ Servers AS -1123US-TR4 - Rear

Supermicro 1U A+ Servers AS -1123US-TR4

Call for price.
SKU:AS-1123US-TR4

Quick Overview:

Key Features:
• Dual AMD EPYC™ 7000-Series Processors
• Up to 4TB of memory
• 10 hot-swap 2.5" SATA3 by default
• Or 8 SATA3 + 2 NVMe (optional)
• Or 8 SAS3 ports + 2 SATA3 (SAS Add-on card is optional)
• 1000W Redundant Power Supplies Titanium Level

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 4 DIMMs, 1 HDD/NVMe). Recommended configuration for best performance is at least 1 DIMM per channel per CPU (16 DIMM Total). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro 1U A+ Servers AS -1123US-TR4

Product SKU
AS -1123US-TR4 • A+ Server 1123US-TR4
Motherboard
  • H11DSU-iN
Processor/Cache
CPU • Dual AMD EPYC™ 7000-series Processors
• Socket SP3
Cores • Up to 32 Cores
Chipset • System on Chip (SoC)
System Memory
Memory Capacity • 32 DIMM sockets
• Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
• 8-channel memory bus
Memory Type

• DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes

• 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage

• 1.2V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
VGA

• ASPEED AST2500 BMC
Expansion Slots
1U • 2 PCI-E x16 (FH/HL 9.5") slots
• 2 PCI-E x8 (LP) slot (1 LP, 1 internal LP)
  Both CPUs need to be installed for full access to PCI-E slots and onboard controllers.
Input/Output
SATA • 10 SATA3 (6 Gbps) ports
LAN • Quad Gigabit LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
VGA • 1 VGA port
SAS • 8 SAS3 ports support via optional Add-on Card
NVMe • 2 NVMe support with optional cables
Others • 1 COM port (rear)
• 2 SATA DOM power connector
• TPM 1.2 header
System BIOS
BIOS Type

• AMI 128Mb SPI Flash EEPROM
BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 5.1
• USB Keyboard Support
• SMBIOS 3.1.1
Chassis
Form Factor • 1U
Model • CSE-119UTS-R1K02P-T
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 27.82" (707mm)
Gross Weight • 41 lbs (18.6 g)
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Drive Bays
Hot-swap

• 10 2.5" hot-swap SATA3 or 8 SATA3 + 2 NVMe drive bays (optional)
Backplane
HDD Backplane

• Supports 10 SATA3 or 8 SATA3 + 2NVMe or 8 SAS3 + 2 SATA3 HDD
System Cooling
Fans

• 8 heavy-duty PWM fans with optimal fan speed control
Air Shroud

• 2 Air Shroud
Power Supply
  1000W Redundant Power Supplies with PMBus
Total Output Power • 800W/1000W
Dimension
(W x H x L)
 • 73.5 x 40 x 203 mm
Input • 100-127Vac / 9.8 - 7A / 50-60Hz
• 200-240Vac / 7 - 5A / 50-60Hz
• 200-240Vdc / 7 - 5A (for CCC only)
+12V • Max: 66.7A / Min: 0A (100-127Vac)
• Max: 83A / Min: 0A (200-240Vac)
• Max: 83A / Min: 0A (200-240Vdc)
12Vsb • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification • Titanium Level
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
• CPU switching voltage regulator

FAN • Up to 8-fan status tachometer monitoring
• Up to eight 4-pin fan headers
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal control for 8x Fan connectors
• I2C Temperature Sensing Logic
LED • CPU / System Overheat LED
Other Features • Chassis Intrusion Detection
• Chassis Intrusion Header
Operating Environment / Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
