Supermicro SYS-6018R-TD8

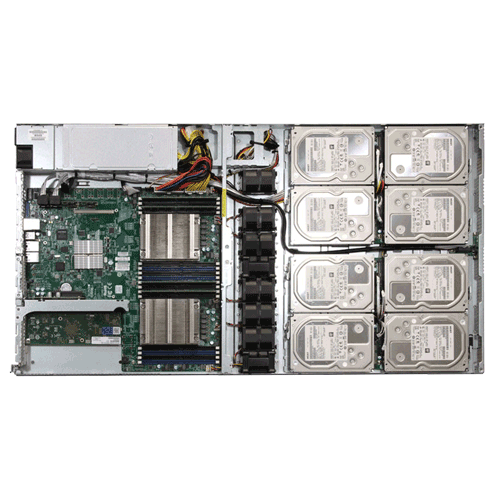

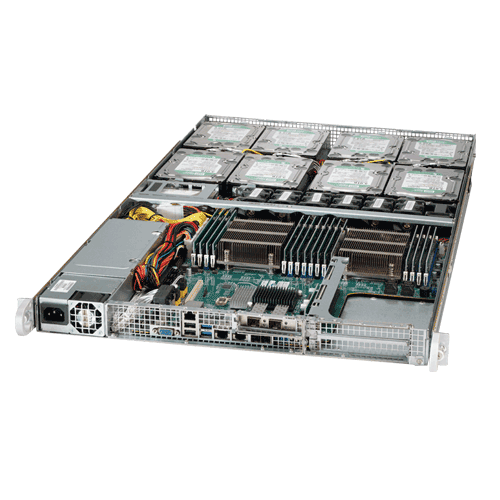

Supermicro 6018R-TD8 1U Rackmount Server Barebone with 650W High-Efficiency Power Supply Platinum Level Certified, 8x 3.5" and 2x 2.5" Fixed SATA3 Drive Bays, 2xLAN, using
Supermicro Super Super X10DDW-i Motherboard and CSE-801STS-656DP 1U Rackmount Chassis.
Supermicro Super Super X10DDW-i Motherboard and CSE-801STS-656DP 1U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-6018R-TD8 | • SuperServer 6018R-TD8 (Black) |
Motherboard |
|
|---|---|
| Super X10DDW-i | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011) |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | • † BIOS version 2.0 or above is required |
| • Please contact WillJaya Technical support for additional information | |
System Memory |
|
|---|---|
| Memory Capacity |
• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes |
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| IPMI |
• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Connectivity | • Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Video | • ASPEED AST2400 BMC |
Input/Output |
|
|---|---|
| SATA | • 10x SATA3 (6Gbps) ports • I-SATA 4 & I-SATA 5 support SATA DOM |
| LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB |
• 3x USB 3.0 ports (2 rear, 1 Type A) • 4x USB 2.0 ports (2 rear, 2 headers) |
| Video | • 1x VGA port |
| Serial Header Port | • 1x COM port (header) |
| DOM | • 2x SuperDOM (Disk on Module) ports |
Management |
|
|---|---|
| Software |
• Intel® Node Manager • IPMI 2.0 • SuperDoctor® 5 • SSM • SPM • SUM • Watch Dog |
| Power Configuration |
• ACPI / APM Power Management • Power-on mode for AC power recovery |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-801STS-656DP |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 32" (812.8mm) |
| Gross Weight | • 42 lbs (19.05 kg) |
| Available Color | • Black |

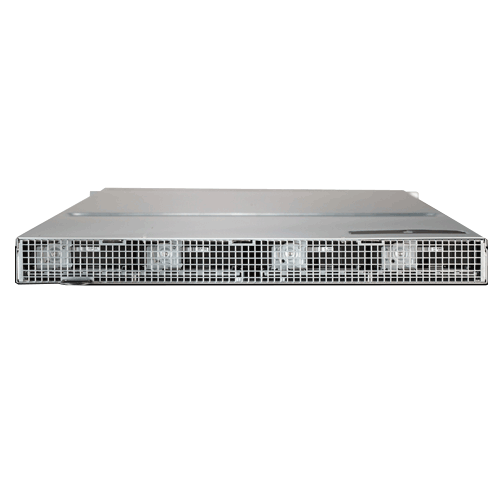

Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset Button |
| LED |
• Power Status LED • HDD activity LED • Network activity LED • Universal Information (UID) LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 2x PCI-E 3.0 x16 (FHHL) slots • 1x PCI-E 3.0 x8 (LP) slot |
Drive Bays |
|
|---|---|
| Hot Swap | • 8x 3.5" and 2x 2.5" Fixed SATA3 Drive Bays |
Backplane |
|
|---|---|
| • 1U SATA/SAS HDD Backplane | |
System Cooling |
|
|---|---|
| Fans | • 6x 4cm fans with optimal fan speed control |
Power Supply |
|
|---|---|
| 600W/650W Multi-output power supply w/ PFC for Rear I/O | |
| AC Input |
• 100-127V, 50-60Hz • 200-240V, 50-60Hz |
| DC Output | • +3.3V: 15A (Max.); 0.5A (Min.) • +5V: 18A (Max.); 0.5A (Min.) • +5V standby: 3A • +12V: 49A (100-127Vac) 54A (200-240Vac) • -12V: 0.5A |
| Certificate | • Platinum Certified (94%) |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features |
• Plug and Play (PnP) • APM 1.2 • PCI 2.3 • ACPI 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1 |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
