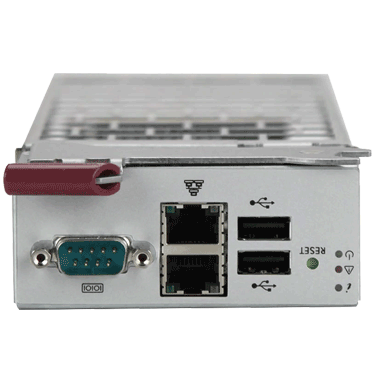

MBM-CMM-001

Key Features:
• Remotely manage and monitor server blades, power supplies, cooling fans, and networking switches
• IPMI 2.0 compliant, with KVM over LAN / KVM over IP
• Serial over LAN (SOL)
• Virtual Media Over LAN (Virtual USB Floppy/CD and Drive Redirection)
• LAN Alert-SNMP Trap
• Event Log
• OS Independent
• Hardware Health Monitor
• Remote Power Control
• Management Tools - IPMIView, CLI (Command Line Interface)
• Supports RMCP & RMCP+ Protocols

Specifications:
• 2x USB Ports
• Remote Management Processor and sub-system
• 2x LAN ports
• Video ADC, Video Compress FPGA
• I2C, IPMI Management
• 12V Hot-swap Controller
• GBX Backplane Connector

PWS-2K01A-BR

(Power Supply) & PWS-DF003-2F (Fan)

Maximum Output Power:
• 2000W

Type: (+12V)
• Redundant Module
• 166.7A (230-240VAC)
• 165A(220-230VAC)
• 150A(200-220VAC)
• 83.3A(100-127VAC)

12VSB: 4.2A

PFC: Yes

Peak Efficiency: 96%

Input AC Range: 100~240VAC

Operating Conditions:
• Temp: -5 to 50°C
• Humidity: 5 to 95% RH

Maximum Available Power for various input voltages:
• 100-127VAC input: 1000W
• 200-220VAC input: 1800W
• 220-230VAC input: 1980W
• 230-240VAC input: 2000W

Fan Type: 80x80mm Counter Rotating Fans

PWS-1K67P-1R

(Power Supply) & PWS-DF001-1F (Fan)

Maximum Output Power:
• 1600W

Type: (+12V)
• Redundant Module
• 133.3A (200-240VAC)
• 116.7A(120-140VAC)
• 100A(100-120VAC)

12VSB: 4.2A

PFC: Yes

Peak Efficiency: 95%

Input AC Range: 100~240VAC

Operating Conditions:
• Temp: -5 to 50°C
• Humidity: 5 to 95% RH

Maximum Available Power for various input voltages:
100-120VAC input: 1200W
120-140VAC input: 1400W
200-240VAC input: 1600W

Fan Type:

• 80x80mm fans
