Model Number Technical Specifications

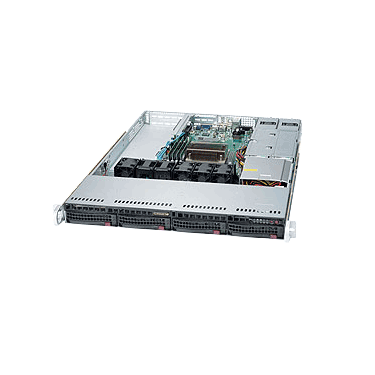

Supermicro WIO SuperServers SYS-XXXXXXXXXXXX

SYS-5019S-WR

Mainstream, WIO

• HA, VM, Communication, WIO, Flexible I/O
• Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
• Intel® C236 chipset
• 4x 3.5" Hot-swap SATA3 bays w/ RAID
• 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) AOC Slot; 1 M.2 connector
• Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
• 2 RJ45 1GbE LAN ports (Intel® i210-AT)
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 1 VGA, 2 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
• 2 SuperDOM ports with built-in power; TPM header
• 500W (1+1) Redundant High-efficiency Power Supplies

Supermicro WIO SuperServers SYS-XXXXXXXXXXXX

SYS-1019S-WR

Appliance Server, WIO

• Appliance Server, WIO, Embedded Applications
• Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5 family, Intel® 7th/6th Gen Core i3 series processor, Intel® Celeron® and Intel® Pentium processors
• Intel® C236 chipset
• 2x 2.5" internal fixed SATA3 drive bays
• 1 PCI-E 3.0 x16 or 2 PCI-E 3.0 x8 Left Riser slot; 1 PCI-E 3.0 x4 (in x8); 1 M.2 connector
• Up to 64GB DDR4 2400MHz ECC UDIMMs in 4 sockets
• 2 RJ45 1GbE LAN ports (Intel® i210-AT)
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• 1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (rear)
• 2 SuperDOM ports with built-in power; TPM header
• 400W Redundant High-efficiency Power Supplies

Supermicro WIO SuperServers SYS-1018R-WR

SYS-1018R-WR

Embedded Appliances


• 1U Appliance Server, WIO, Embedded Applications
• Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 2 fixed 2.5" SATA3 drive bays
• 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400
• 2 PCI-E 3.0 x16 left riser slot, 1 PCI-E 3.0 x8 LP slot
• 2 GbE, 1 Video, 2 COM, 4 USB 3.0, 2 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 PWM Cooling fans; 2 optional fans for AOC cooling
• 400W Redundant Platinum Level Power Supplies

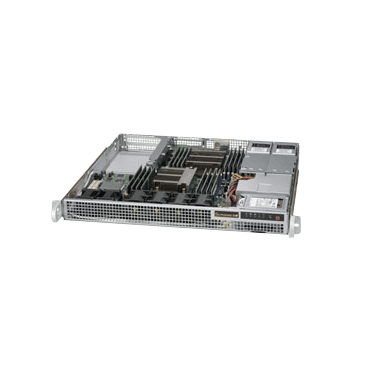

Supermicro WIO SuperServers SYS-1028R-WMR and SYS-1028R-WMRT

SYS-1028R-WMR
SYS-1028R-WMRT

Short Depth 16.9", WIO Flexible I/O

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Dual socket R3 (LGA 2011) supports: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 2 Fixed 2.5" drive bays w/ bracket
• 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
• 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 (in x16) slots
• 2 SuperDOM, 1 VGA, 1 COM, 2 USB 3.0, 4 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4x 40x56mm PWM fan; 2x fans for AOC cooling
• 400W (1+1) Redundant SuperCompact Short-depth AC-DC Gold-level power supply with PMBus and I2C

Supermicro WIO SuperServers SYS-1018R-WC0R

SYS-1018R-WC0R

WIO, Flexible I/O Storage Array

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 8 Hot-swap 2.5" SAS3 + 2 Hot-swap 2.5" SATA3 drive bays
• 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400
• 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 (in x16) slots
• 2 GbE, 1 Video, 2 COM, 2 USB 3.0, 4 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 3 PWM Cooling fans
• 700W/750W Redundant Platinum Level Power Supplies

Supermicro WIO SuperServers SYS-1028R-WTNR and SYS-1028R-WTNRT

SYS-1028R-WTNR
SYS-1028R-WTNRT

WIO, Flexible I/O 10 Hot-swap 2.5" bays 2 NVMe support

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 10 Hot-swap 2.5" drive bays; 8 SATA3 + 2 NVMe/SATA3 hybrid ports
• 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
• 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 (in x16) slots
• 2 GbE/10GBase-T ("T" SKUs), 1 Video, 1 COM, 6 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 5x 40mm Counter-rotating PWM fans
• 700W/750W Redundant Platinum Level Power Supplies

Supermicro WIO SuperServers SYS-1028R-WTR,SYS-1028R-WTRT,SYS-1028R-WC1R and SYS-1028R-WC1RT.

SYS-1028R-WTR
SYS-1028R-WTRT
SYS-1028R-WC1R
SYS-1028R-WC1RT

10 Hot-swap 2.5" bays SAS3 via Broadcom 3108, 2 NVMe support ("C")

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 10 Hot-swap 2.5" SAS/SATA drive bays; SAS3 via Broadcom 3108 ("C" SKUs), 2 Opt. NVMe drive support ("C" SKUs)
• 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
• 2 PCI-E 3.0 x16 (FHHL) via riser card, 1 PCI-E 3.0 x8 Mezzanine for HBA cards
• 2 GbE/10GBase-T ("RT"), 1 Video, 1 COM, 6 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 5x 40mm Counter-rotating PWM fans
• 700W/750W Redundant Platinum Level Power Supplies

Supermicro WIO SuperServers SYS-6018R-WTR

SYS-6018R-WTR
SYS-6018R-WTRT

WIO, Flexible I/O

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 4 Hot-swap 3.5" SAS/SATA drive bays for Customizable storage
• 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
• Riser card support: Left side - 2 PCI-E 3.0 x16 slots
• 2 GbE/10GBase-T (WTRT), 1 Video, 1 Serial, 6 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) w/ dedicated LAN port
• 5 Counter-rotating PWM fans
• 700W Redundant Platinum Level Power Supplies

Supermicro WIO SuperServers SYS-5028R-WR

SYS-5028R-WR

WIO, Flexible I/O

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Single Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 8 Hot-swap 3.5" SATA3 drive bays
• 8 DIMM slots; up to 1TB ECC 3DS LRDIMM or RDIMM DDR4-2400
• 4 PCI-E 3.0 x8 (FH) and 1 PCI-E 3.0 x8 (LP) slots via riser card
• 2 GbE, 1 Video, 1 COM/Serial, 2 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 3 Counter-rotating PWM Cooling fans
• 500W Redundant Platinum Level Power Supplies

Supermicro WIO SuperServers SYS-6028R-WTR and SYS-6028R-WTRT

SYS-6028R-WTR
SYS-6028R-WTRT

WIO, Flexible I/O

• 2U Mainstream WIO Server
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
• 8 Hot-swap 3.5" drive bays ready for flexible storage support
• 16 DIMM slots; up to 2TB ECC 3DS LRDIMM or RDIMM DDR4-2400
• 4 PCI-E 3.0 x8 (2 FHFL, 2 FHHL), 2 PCI-E 3.0 (LP) slots via riser card
• 2 GbE/10GBase-T (WTRT), 1 Video, 2 COM, 6 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 3 heavy duty fans w/ optimal fan speed control
• 740W Redundant Platinum Level Power Supplies

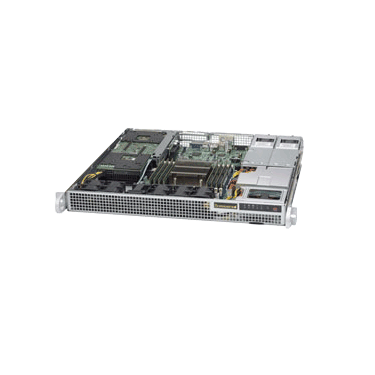

Supermicro WIO SuperServers SYS-1017R-WR

SYS-1017R-WR

X9SRW-F + SC514-R40CW

• X9SRW-F + SC514-R40CW
• Single Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 2 Fixed 2.5" SATA drive bays
• 8 DIMMs support up to 512GB DDR3 1866MHz ECC memory
• 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots via riser
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 8 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4x 4cm cooling fans (default 3xFan for CPU 1x AOC)
• 400W redundant Gold Level Power Supplies

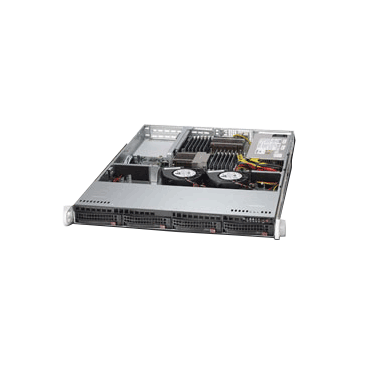

Supermicro WIO SuperServers 6017B-NTF

SYS-6017B-NTF

X9DBU-iF + SC813T-600UB

• 1U UIO Server for HPC cluster computer nodes, datacenter, data farm, front-end server and other computing intensive applications
• Dual Intel® Xeon® processor E5-2400 v2 series; Socket B2 (LGA 1356)
•  4 Hot-swap 3.5" SATA HDD Bays
• 12 DIMMs support up to 384GB DDR3 1600MHz reg. ECC memory
• 2 PCI-E 3.0 x8 (1 FHFL, 1 FHHL) slots
• I/O ports: 2 GbE, 1 Video, 2 COM/Serial, 8 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 2 Blower fans with optimal fan speed control
• 600W Gold Level Power Supply

Supermicro WIO SuperServers SYS-6017B-URF

SYS-6017B-URF

X9DBU-iF + SC815TQ-R500UB

• 1U UIO Server for HPC cluster computer nodes, datacenter, data farm, front-end server and other computing intensive applications
• Dual Intel® Xeon® processor E5-2400 v2 series; Socket B2 (LGA 1356)
•  8 Hot-swap 2.5" SAS/SATA HDD Bays for Customizable Storage
• 12 DIMMs support up to 384GB DDR3 1600MHz reg. ECC memory
• 1 UIO, 1 PCI-E 3.0 x8 Full-height Full-length slot
• I/O ports: 2 GbE, 1 Video, 2 COM/Serial, 8 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 Counter-rotating PWM Fans
• 500W Redundant Platinum Level Power Supplies

Supermicro WIO SuperServers SYS-6027B-URF

SYS-6027B-URF

X9DBU-iF + SC825TQ-R740UB

• 2U UIO Server for HPC cluster computer nodes, datacenter, data farm, front-end server and other computing intensive applications
• Dual Intel® Xeon® processor E5-2400 v2 series; Socket B2 (LGA 1356)
• 8 Hot-swap 3.5" SAS/SATA HDD Bays for Customizable Storage
• 12 DIMMs support up to 384GB DDR3 1600MHz reg. ECC memory
• 1 UIO, 4 PCI-E 3.0 x4 (2 FHFL, 2 LP), 1 PCI-E 3.0 x8 (FHFL)
• I/O ports: 2 GbE, 1 Video, 2 COM/Serial, 8 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 3 Counter-rotating PWM Fans
• 740W Redundant Platinum Level Power Supplies

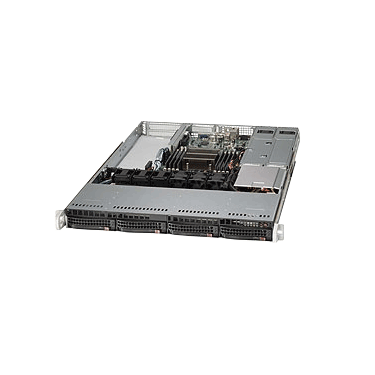

Supermicro WIO SuperServers SYS-5017R-WRF

SYS-5017R-WRF

X9SRW-F + SC815TQ-R500WB

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Single Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 4 Hot-swap 3.5" HDD Bays
• 8 DIMMs support up to 512GB DDR3 1866MHz reg. ECC memory
• 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 8 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 3 Counter-rotating PWM Cooling fans
• 500W Redundant Platinum Level Power Supplies

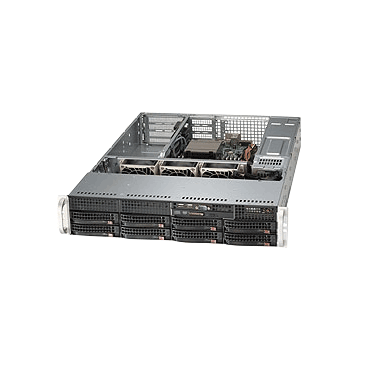

Supermicro WIO SuperServers SYS-5027R-WRF

SYS-5027R-WRF

X9SRW-F + SC825TQ-R500WB

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Single Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 8 Hot-swap 3.5" HDD Bays
• 8 DIMMs support up to 512GB DDR3 1866MHz reg. ECC memory
• 4 PCI-E 3.0 x8 (FH) and 1 PCI-E 3.0 x8 (LP) slots
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 8 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 3 Counter-rotating PWM Cooling fans
• 500W Redundant Platinum Level Power Supplies

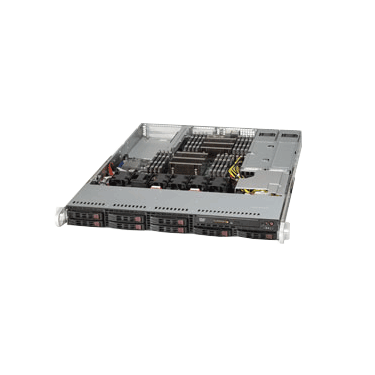

Supermicro WIO SuperServers SYS-1027R-WRF

SYS-1027R-WRF

X9DRW-iF + SC113TQ-R700WB

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 8 Hot-swap 2.5" SATA HDD Bays for Customizable storage
• 16 DIMMs support up to 1TB DDR3 1866MHz reg. ECC memory
• Riser card support: Left side - 2 PCI-E 3.0 x16 slots
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 6 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 5 4cm Counter-rotating PWM fans
• 700W Redundant Gold Level Power Supplies

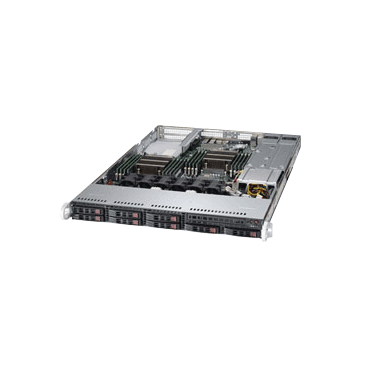

Supermicro WIO SuperServers SYS-1027R-72RFTP

SYS-1027R-72RFTP

X9DRW-7TPF + SC119TQ-R700WB

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 8 Hot-swap 2.5" SAS/SATA2 HDD Bays (SAS2 via Broadcom 2208)
• 16 DIMMs support up to 1TB DDR3 1866MHz reg. ECC memory
• Riser card support: 2 (x16) and 1 (x8) PCI-E 3.0 slots
• I/O ports: 2 GbE, 2 SFP+ 10Gb, 1 Video, 1 COM/Serial, 5 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
•6 4cm Counter-rotating PWM fans
• 700W Redundant Gold Level Power Supplies

Supermicro WIO SuperServers SYS-6017R-72RFTP

SYS-6017R-72RFTP

X9DRW-7TPF + SC819TQ-R700WB

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 4 Hot-swap 3.5" SAS/SATA2 HDD Bays (SAS2 via Broadcom 2208)
• 16 DIMMs support up to 1TB DDR3 1866MHz reg. ECC memory
• Riser card support: 2 (x16) and 1 (x8) PCI-E 3.0 slots
• I/O ports: 2 GbE, 2 SFP+ 10Gb, 1 Video, 1 COM/Serial, 5 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 6 4cm Counter-rotating PWM fans
• 700W Redundant Gold Level Power Supplies

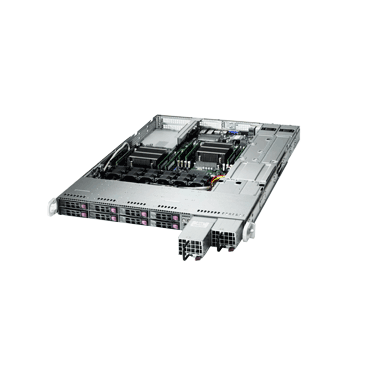

Supermicro WIO SuperServers SYS-1027R-72BRFTP

SYS-1027R-72BRFTP

X9DRW-7TPF + SC119XTQ-BR700WB

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 8 Hot-swap 2.5" SAS/SATA2 HDD Bays (SAS2 via Broadcom 2208)
• 16 DIMMs support up to 1TB DDR3 1866MHz reg. ECC memory
• Riser card support: 2 (x16) and 1 (x8) PCI-E 3.0 slots
• I/O ports: 2 GbE, 2 SFP+ 10Gb, 1 Video, 1 COM/Serial, 5 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 6 4cm Counter-rotating PWM fans
• 700W Redundant Gold Level Power Supplies
• Battery Backup Power (redundant): PWS-206B-1R

Supermicro WIO SuperServers SYS-1027R-N3RF

SYS-1027R-N3RF

X9DRW-3F + SC116TQ-R700WB

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 10 Hot-swap 2.5" SAS/SATA2 HDD Bays Connected to onboard storage controller
• 16 DIMMs support up to 1TB DDR3 1866MHz reg. ECC memory
• Riser card support: Left side - 2 PCI-E 3.0 x16 slots
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 6 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 5 4cm Counter-rotating PWM fans
• 700W Redundant Gold Level Power Supplies

Supermicro WIO SuperServers SYS-6017R-WTRFTP+

SYS-6017R-WTRFTP+
SYS-6017R-WTRFTP

X9DRW-iTPF+ (WTRFTP+) X9DRW-iTPF (WTRFTP) + SC815TQ-R700WB

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 4 Hot-swap 3.5" SAS/SATA HDD Bays for Customizable storage
• 24 DIMMs support up to 1.5TB DDR3 1866MHz reg. ECC memory (-WTRFTP+)
• 16 DIMMs support up to 1TB DDR3 1866MHz reg. ECC memory (-WTRFTP)
• Riser card support: Left - 2 PCI-E 3.0 x16, Right - 1 PCI-E 3.0 x32
• I/O ports: 2 10G SFP+ and 2x GbE, 1 Video, 1 COM/Serial, 5 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) w/ dedicated LAN port
• 6 4cm Counter-rotating PWM fans
• 700W Redundant Gold Level Power Supplies

Supermicro WIO SuperServers SYS-6017R-WRF

SYS-6017R-WRF
SYS-6017R-NTF

X9DRW-iF (WRF) + SC815TQ-R700WB X9DRW-iF (NTF) + SC815TQ-600WB

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 4 Hot-swap 3.5" SAS/SATA HDD Bays for Customizable storage (6017R-WRF) or Connect to onboard storage controller (6017R-NTF)
• 16 DIMMs support up to 1TB DDR3 1866MHz reg. ECC memory
• Riser card support: Left side - 2 PCI-E 3.0 x16 slots
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 6 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) w/ dedicated LAN port
• 5 4cm Counter-rotating PWM fans
• 700W Redundant Gold Level Power Supplies (6017R-WRF)
• 600W Power Supply w/ Digital Switching Control (6017R-NTF)

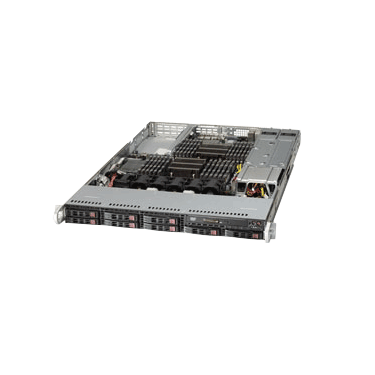

Supermicro WIO SuperServers SYS-1027R-WRF4+

SYS-1027R-WRF4+
SYS-1027R-WRFT+

X9DRW-3LN4F+ (WRF4+) X9DRW-3TF+ (WRFT+) + SC119TQ-R700WB

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 8 Hot-swap 2.5" SAS/SATA HDD Bays for Customizable storage
• 24 DIMMs support up to 1.5TB DDR3 1866MHz reg. ECC memory
• Riser card support: Left side - 1 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 Right side - 1 PCI-E 3.0 x8 slot
• I/O ports: 4 GbE (1027R-WRF4+) or 2 GbE & 2 10GbE (1027R-WRFT+), 1 Video, 1 COM/Serial, 7 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 6 4cm Counter-rotating PWM fans
• 700W Redundant Gold Level Power Supplies

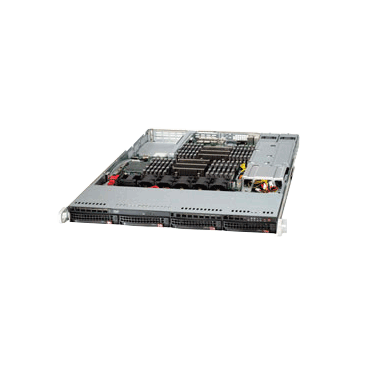

Supermicro WIO SuperServers SYS-6017R-N3RF4+

SYS-6017R-N3RF4+
SYS-6017R-N3RFT+

X9DRW-3LN4F+ (N3RF4+) X9DRW-3TF+ (N3RFT+) + SC819TQ-R700WB

• Cloud and other virtualization needs, hosting & application delivery, database processing & storage, simulation, automation
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 4 Hot-swap 3.5" SAS/SATA HDD Bays Connected to onboard storage controller
• 24 DIMMs support up to 1.5TB DDR3 1866MHz reg. ECC memory
• iser card support: Left side - 1 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 Right side - 1 PCI-E 3.0 x8 slot
•I/O ports: 4 GbE (N3RF4+) or 2 GbE & 2 10G Base-T (N3RFT+), 1 Video, 1 COM/Serial, 7 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 6 4cm Counter-rotating PWM fans
• 700W Redundant Gold Level Power Supplies

Supermicro WIO SuperServers SYS-6027R-72RFTP+

SYS-6027R-72RFTP+

X9DRW-7TPF+ + SC829BTQ-R920WB

• 2U WIO Server
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 10 Hot-swap 3.5" SAS/SATA HDD Bays
• CSupport SAS2 HW RAID via Broadcom 2208
• 24 DIMMs support up to 1.5TB DDR3 1866MHz reg. ECC memory
• Left: 1 (x16) & 2 (x8) PCI-E 3.0; Right: 2 (x8) PCI-E 3.0 via Riser
• I/O ports: 2 10G SFP+, 2 GbE, 1 Video, 1 COM/Serial, 5 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 920W Redundant Platinum Level Power Supplies

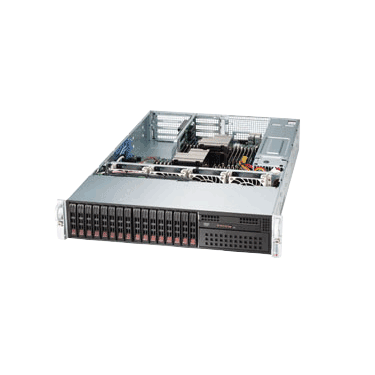

Supermicro WIO SuperServers SYS-2027R-72RFTP+

SYS-2027R-72RFTP+

X9DRW-7TPF+ + SC219A-R920WB

• 2U WIO Server
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 16 Hot-swap 2.5" SAS/SATA HDD Bays
• Support SAS2 HW RAID via Broadcom 2208
• 24 DIMMs support up to 1.5TB DDR3 1866MHz reg. ECC memory
• Left: 1 (x16) & 2 (x8) PCI-E 3.0; Right: 2 (x8) PCI-E 3.0 via Riser
• I/O ports: 2 10G SFP+, 2 GbE, 1 Video, 1 COM/Serial, 5 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 920W Redundant Platinum Level Power Supplies

Supermicro WIO SuperServers SYS-6027R-N3RF

SYS-6027R-N3RF

X9DRW-3F + SC825TQ-R740WB

• Cloud and other Virtualization needs, Hosting & App. delivery, DB
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 8 Hot-swap 3.5" SAS/SATA HDD Bays connected to storage controller
• 16 DIMMs support up to 1TB DDR3 1866MHz reg. ECC memory
• 4 PCI-E 3.0 x8 slots
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 6 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 3 heavy duty fans w/ optimal fan speed control
• 740W Redundant Platinum Level Power Supplies

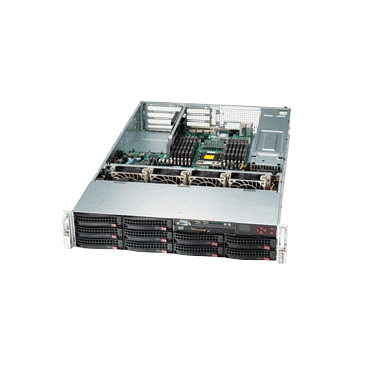

Supermicro WIO SuperServers SYS-6027R-N3RF4+ and SYS-6027R-N3RFT+

SYS-6027R-N3RF4+
SYS-6027R-N3RFT+

X9DRW-3LN4F+ (N3RF4+) X9DRW-3TF+ (N3RFT+) + SC829BTQ-R920WB

• 2U Mainstream WIO Server
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 10 Hot-swap 3.5" SAS/SATA HDD Bays
• 24 DIMMs support up to 1.5TB DDR3 1866MHz reg. ECC memory
• 2 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots, & 2 PCI-E 3.0 x8 LP slots
• I/O ports: 4 GbE (6027R-N3RF4+) or 2 GbE & 2 10GbE (6027R-N3RFT+), 1 Video, 1 COM/Serial, 7 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 920W Redundant Platinum Level Power Supplies

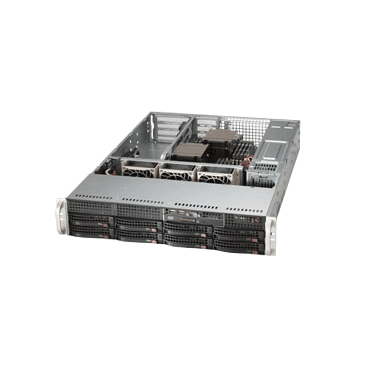

Supermicro WIO SuperServers SYS-6027R-WRF

SYS-6027R-WRF

X9DRW-iF + SC825TQ-R740WB

• 2U Mainstream WIO Server
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 8 Hot-swap 3.5" HDD Bays ready for flexible storage support
• 16 DIMMs support up to 1TB DDR3 1866MHz reg. ECC memory
• 4 PCI-E 3.0 x8 slots (2x Full-height Full-length & 2x Full-height Half-length) via left hand side riser card
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 6 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
•  3 heavy duty fans w/ optimal fan speed control
• 740W Redundant Platinum Level Power Supplies

Supermicro WIO SuperServers SYS-2027R-WRF

SYS-2027R-WRF

X9DRW-iF + SC213A-R740WB

• 2U Mainstream WIO Server
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• 16 Hot-swap 2.5" HDD Bays ready for flexible storage support
• 16 DIMMs support up to 1TB DDR3 1866MHz reg. ECC memory
• 4 PCI-E 3.0 x8 slots (2x Full-height Full-length & 2x Full-height Half-length) via left hand side riser card
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 6 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 3 heavy duty fans w/ optimal fan speed control
• 740W Redundant Platinum Level Power Supplies

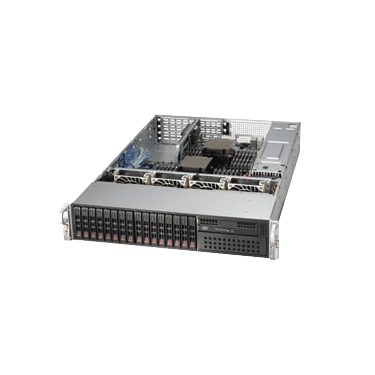

Supermicro WIO SuperServers SYS-2027R-N3RF4+

SYS-2027R-N3RF4+
SYS-2027R-N3RFT+

X9DRW-3LN4F+ ("4") X9DRW-3TF+ ("T") + SC219A-R920WB

• 2U Mainstream WIO Server
• Dual Intel® Xeon® processor E5-2600 or E5-2600 v2 family; Socket R (LGA 2011)
• (8+8) Hot-swap 2.5" SAS/SATA HDD Bays
• 24 DIMMs support up to 1.5TB DDR3 1866MHz reg. ECC memory
• 2 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 slots (1 FHFL, 1 FHHL, 2 LP)
• I/O ports: 4 GbE ("4") or 2 GbE & 2 10G Base-T ("T"),
   1 Video, 1 COM/Serial, 2 USB 2.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
•4 heavy duty fans w/ optimal fan speed control
• 740W Redundant Platinum Level Power Supplies
