By Form Factor :

Model Number Technical Specifications
Supermicro MultiNode 2U Twin Solutions SYS-6028TR-D72R

6028TR-D72R

6028TR-DTR

• 2x DP nodes in 2U; depth 28.5", Each Node (x2 nodes):
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor
   E5-2600 v3 family; QPI up to 9.6GT/s
• 8x DIMM slots; up to 512GB DDR4 2133MHz reg. ECC memory
• 2x PCI-E 3.0 x8 and 1x PCI-E x8 slots
• 6x 3.5" Hot-swap SAS2 (6028TR-D72R)/SATA3 drive bays
• I/O ports: 2x GbE, 1x Video, 1x RS232, 2x USB 3.0
• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 1280W Redundant Platinum Level Digital Power Supplies

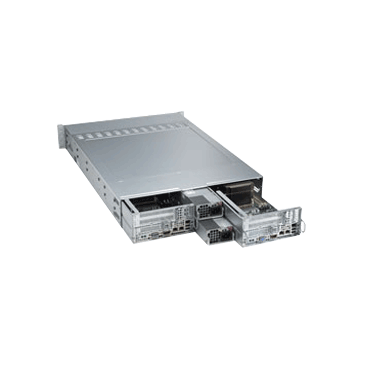

Supermicro 2U Twin 6027TR-DTRF

6027TR-DTRF+

6027TR-D71RF+

6027TR-D70RF+

• 2U Twin Server; EACH NODE (x2 nodes):
• Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600
   or E5-2600 v2 family
• 6 Hot-swap 3.5" HDD Bays: SATA3 ("T")
   SAS2 via LSI 2108 ("71" SKUs), or SAS via LSI 2008 ("70" SKUs)
• 16 DIMMs, up to 1TB, up to 1866MHz DDR3 memory
• 1 (x8) PCI-E 3.0 Micro Low-profile slot (support QDR, SFP+, or
   dual port SFP+ via optional AOC)
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 5 USB 2.0 (1 Type-A)
• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• Mellanox ConnectX QDR (QRF) / FDR (FRF) InfiniBand Controller
• 4 heavy duty fans w/ optimal fan speed control
• 1280W Redundant Platinum Level Digital Power Supplies

Supermicro 2U Twin 2027TR-D70RF

2027TR-D70RF+

• 2U Twin Server; EACH NODE (x2 nodes):
• Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600
   or E5-2600 v2 family
• 12 Hot-swap 2.5" SATA3/SATA2/SAS (via LSI 2008) HDD Bays
• 16 DIMMs, up to 1TB, up to 1866MHz DDR3 memory
• 1 (x8) PCI-E 3.0 Micro Low-profile slot (support QDR, SFP+, or
   dual port SFP+ via optional AOC)
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 5 USB 2.0 (1 Type-A)
• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 1280W Redundant Platinum Level Digital Power Supplies

Supermicro MultiNode 2U Twin Solutions SYS-6027TR-DTRF

6027TR-DTRF

6027TR-D71RF

6027TR-D70RF

6027TR-DTQRF

6027TR-D71QRF

6027TR-D70QRF

6027TR-DTFRF

6027TR-D71FRF

6027TR-D70FRF

• 2U Twin Server; EACH NODE (x2 nodes):
• Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600
   or E5-2600 v2 family
• 6 Hot-swap 3.5" HDD Bays: SATA3 ("T")
   SAS2 via LSI 2108 ("71" SKUs), or SAS via LSI 2008 ("70" SKUs)
• 8 DIMMs, up to 512GB, up to 1866MHz DDR3 memory
• 2 (x8) PCI-E 3.0 Low-profile (LP) slots
• Support 1 FHFL Double Width (x16) PCI-E 3.0 GPU card w/ GPU KIT
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 3 USB 2.0 (2 rear + 1 Type-A)
• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• Mellanox ConnectX QDR (QRF) / FDR (FRF) InfiniBand Controller
• 4 heavy duty fans w/ optimal fan speed control
• 1280W Redundant Platinum Level Power Supplies

Supermicro MultiNode 2U Twin Solutions SYS-2027TR-D70RF

2027TR-D70RF

2027TR-D70QRF

2027TR-D70FRF

• 2U Twin Server; EACH NODE (x2 nodes):
• Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600
   or E5-2600 v2 family
• 12 Hot-swap 2.5" SATA3/SATA2/SAS (via LSI 2008) HDD Bays
• 8 DIMMs, up to 512GB, up to 1866MHz DDR3 memory
• 2 (x8) PCI-E 3.0 Low-profile (LP) slots
• Support 1 FHFL Double Width (x16) PCI-E 3.0 GPU card w/ GPU KIT
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 3 USB 2.0 (2 rear + 1 Type-A)
• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• Mellanox ConnectX QDR (QRF) / FDR (FRF) InfiniBand Controlle
• 4 heavy duty fans w/ optimal fan speed control
• 1280W Redundant Platinum Level Power Supplies

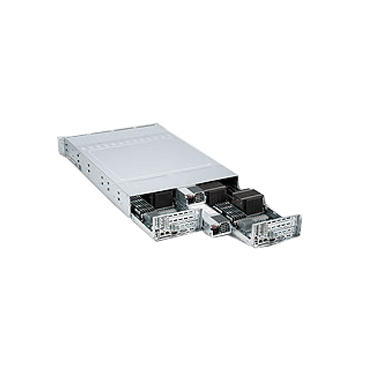

Supermicro 2U Twin SYS-6026TT-D6RF

SYS-6026TT-D6RF

SYS-6026TT-D6IBXRF

SYS-6026TT-D6IBQRF

• 2 nodes share one 2U chassis, EACH NODE supports:
• Two Intel Xeon 5600/5500 series processors
• Intel 5520 chipset with QPI up to 6.4 GT/s
• Up to 192GB DDR3 Reg. ECC DIMM 1333/1066/800MHz
• 6x 3.5" hot-swap SAS drives (with LSI 2108 SAS controller)
• 8cm heavy-duty PWM fans with optimal fan speed control (4 total)
• 2 PCI-Express 2.0 x8 (FHHL) with riser cards
• Dual Gigabit Ethernet LAN and one IPMI dedicated LAN
• Onboard IPMI with virtual media over LAN & KVM-over-LAN
• Matrox G200eW graphics controllers
• Infiniband port with Connect-X QDR (IBQRF) / DDR (IBXRF)
• 1400W Gold Level (93%+) Redundant Power Supplies with PMbus

Supermicro 2U Twin SYS-6026TT-HDTRF

SYS-6026TT-HDTRF

SYS-6026TT-HDIBXRF

SYS-6026TT-HDIBQRF

• 2 nodes share one 2U chassis, EACH NODE supports:
• DP Quad-Core/Dual-Core 64-bit Xeon® processors
• Up to 192GB DDR3 Reg. ECC DIMM 1333/1066/800MHz
• 6x 3.5" hot-swap SATA drive bays
• 8cm heavy-duty PWM fans with optimal fan speed control (4 total)
• Front control panel with UID
• 2 PCI-E x8 (in x16) slots or
  1 PCI-E 2.0 x16 slot for double width GPU card (option)
• Dual Gigabit Ethernet LAN and one IPMI dedicated LAN
• Onboard IPMI with virtual media over LAN & KVM-over-LANA
• Matrox G200eW graphics controller
• Infiniband port with Connect-X QDR (IBQRF) / DDR (IBXRF)
• 1400W Gold Level (93%+) Redundant Power Supplies with PMbus

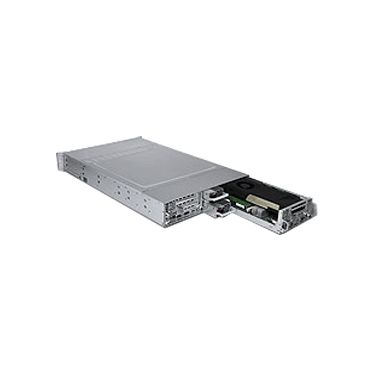

Supermicro 2U Twin SYS-6026TT-GTRF

SYS-6026TT-GTRF

SYS-6026TT-GIBXRF

SYS-6026TT-GIBQRF

• 2 nodes share one 2U chassis, EACH NODE supports:
• DP Quad-Core/Dual-Core 64-bit Xeon® processors
• Up to 192GB DDR3 Reg. ECC DIMM 1333/1066/800MHz
• 6x 3.5" hot-swap SATA drive bays
• 8cm heavy-duty PWM fans with optimal fan speed control (4 total)
• Front control panel with UID
• 1 PCI-E 2.0 x16 slot for Double-Width GPU card (option)
• Dual Gigabit Ethernet LAN and one IPMI dedicated LAN
• Onboard IPMI with virtual media over LAN & KVM-over-LAN
• Matrox G200eW graphics controller
• Infiniband port with Connect-X QDR (IBQRF) / DDR (IBXRF)
• 1400W Gold Level (93%+) Redundant Power Supplies with PMbus

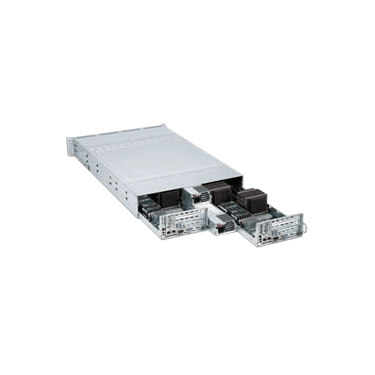

Supermicro 2U Twin SYS-2026TT-DLRF

SYS-2026TT-DLRF

SYS-2026TT-DLIBXRF

SYS-2026TT-DLIBQRF

• 2 nodes share one 2U chassis, EACH NODE supports:
• DP Quad-Core/Dual-Core 64-bit Xeon® processors
• Up to 192GB DDR3 Reg. ECC DIMM 1333/1066/800MHz
• 12x 2.5" hot-swap SAS2/SATA HDD (24 total) (with LSI 2008    SAS controller)
• 8cm heavy-duty PWM fans with optimal fan speed control (4 total)
• Front control panel with UID
• 2 PCI-E 2.0 x8 (in x16, low-profile) slots
• Dual Gigabit Ethernet LAN; one IPMI dedicated LAN
• Onboard IPMI with virtual media over LAN & KVM-over-LAN
• Infiniband port with Connect-X QDR (IBQRF) / DDR (IBXRF)
• 1400W Gold Level (93%+) Redundant Power Supplies with PMbus


Model Number Technical Specifications
Supermicro Dual Socket R LGA 2011 Server Motherboard X9DRT-HF+

X9DRT-HF+

Call for Pricing for X9DRT-HF+

•  Dual Socket R (LGA 2011) support:
   Intel® Xeon® processor E5-2600/E5-2600 v2 family; QPI up to 8.0GT/s
• Intel® C602 Chipset
• 16 DIMM, up to 512GB DDR3 1600MHz ECC RDIMMs
• 1 (x8) PCI-E 3.0 + 1 (x8) Micro Low-profile PCI-E 3.0 slot
• Intel® i350 Dual port Gigabit Ethernet LAN
• 2 SATA3 (6 Gbps) and 4 SATA2 ports
• 5x USB 2.0 ports total (2 rear + 2 via header, 1 Type-A)
• IPMI 2.0 and KVM with dedicated LAN
• Form factor: Proprietary, 6.8" x 16.64"

Supermicro Dual Socket R LGA 2011 Server Motherboard X9DRT-HF X9DRT-HIBQF X9DRT-HIBFF

X9DRT-HF
X9DRT-HIBQF
X9DRT-HIBFF

Call for Pricing for X9DRT-HF X9DRT-HIBQF X9DRT-HIBFF

• Dual Socket R (LGA 2011) support:
   Intel® Xeon® processor E5-2600/E5-2600 v2 family; QPI up to 8.0GT/s
• Intel® C602 Chipset
• 8 DIMM, up to 256GB DDR3 1600MHz ECC RDIMMs
• 1 (x24) PCI-E 3.0 + special x8 connector for SMC add-on cards
• Intel® i350 Dual port Gigabit Ethernet LAN
• 2 SATA3 (6 Gbps) and 5 SATA2 ports
• 3x USB 2.0 ports total (2 rear + 1 Type-A)
• Infiniband QDR (40Gbps, "QF") / FDR (56Gbps, "FF") w/ QSFP
• IPMI 2.0 and KVM with dedicated LAN
• Form factor: Proprietary, 6.8" x 16.64"
