Model Number Technical Specifications

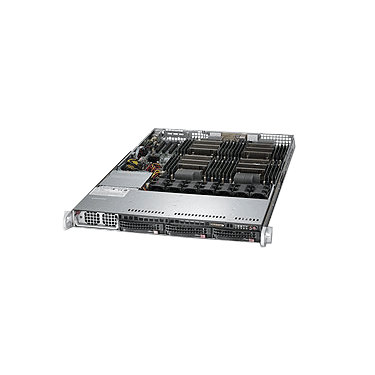

Supermicro MP SuperServers SYS-8017R-TF+

SYS-8017R-TF+
SYS-8017R-7FT+

1U, 4-way

• 4-Way 12-Core MP SuperServer for Enterprise mission-critical apps, HPC cluster computer nodes, scientific computing, Virtualization
• Quad Intel® Xeon® processor E5-4600 v2 family; Socket R (LGA 2011)
• 3 Hot-swap 3.5" SATA3 (TF+) or SAS2/SATA3 (7FT+) HDD Bays
• 1 Slim DVD-ROM drive (optional)
• 32 DIMMs support up to 1TB DDR3 1866MHz* reg. ECC memory
• 1 PCI-E 3.0 x16 Low-profile Expansion slot
• Broadcom 2208 controller for 8 SAS2 (6Gbps) ports (7FT+); HW RAID 0, 1, 5
• I/O ports: 2 GbE (TF+) / 2 10GBase-T (7FT+), 1 Video, 1 COM/Serial, 4 USB 2.0, 1 IPMI
• System management: Built-in Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
• 7x 4cm heavy duty Counter-rotating fans with air shroud
• 1400W Platinum Level Digital Power Supply

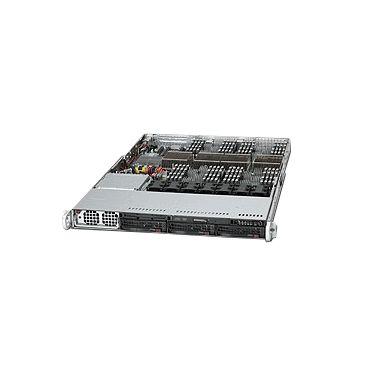

Supermicro MP SuperServers SYS-8016B-6F

SYS-8016B-6F
SYS-8016B-TF
SYS-8016B-TLF

1U, 4-way

• High-end enterprise server, SQL server, HPCC
• Up to 4 Intel® Xeon® processors E7-4800 family (10-Core) or Intel® Xeon® processor 7500 series (8-Core)
• Intel® 7500 chipset
• Up to 1TB DDR3 1066/800 MHz ECC registered DIMM
• 1 PCI-E 2.0 x16 slot
• Intel® 82576 dual-port Gigabit Ethernet controller
• 3 hot-swap drive bays: SAS/SATA drives support
• 1400W Gold Level high-efficiency power supply
• Integrated IPMI 2.0 with dedicated LAN
• 8016B-6F: Broadcom 2108 8-Port 6Gbps SAS2 controller w/ RAID 0, 1, 5

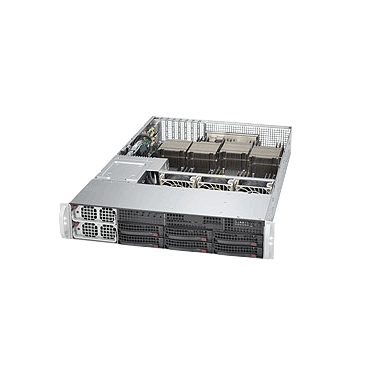

Supermicro MP SuperServers SYS-8028B-TR4F, SYS-8028B-C0R4FT.

SYS-8028B-TR4F
SYS-8028B-C0R4FT

2U, 4-way

• Enterprise mission-critical applications, financial, oil & gas, medical, e-Commerce, virtualization
• Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
• 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Low-profile slots
• 32 DIMM slots support up to 4TB of DDR4 ECC 3DS LRDIMMs
• 6x 3.5" Hot-swap SATA3 (TR4F) or SAS2 (C0R4FT) drive bays
• Onboard Broadcom 3008 controller (C0R4FT)
• I/O: 2 GbE (TR4F) / 2 10GBase-T (C0R4FT), 1 Video, 1 COM, 3 USB 2.0
• System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
• 3 Hot-swap PWM Cooling fans
• 1400W Redundant Platinum Level Digital Power Supplies

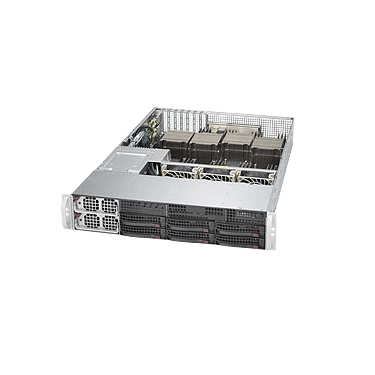

Supermicro MP SuperServers SYS-8028B-TR3F,SYS-8028B-C0R3FT

SYS-8028B-TR3F
SYS-8028B-C0R3FT

2U, 4-way

• Enterprise mission-critical applications, financial, oil & gas, medical, e-Commerce, virtualization
• Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
• 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Low-profile slots
• 32 DIMM slots support up to 2TB of DDR3 ECC LRDIMMs
• 6x 3.5" Hot-swap SATA3 (TR3F) or SAS2 (C0R3FT) drive bays
• Onboard Broadcom 3008 controller (C0R3FT)
• I/O: 2 GbE (TR3F) / 2 10GBase-T (C0R3FT), 1 Video, 1 COM, 3 USB 2.0
• System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
• 3 Hot-swap PWM Cooling fans
• 1400W Redundant Platinum Level Digital Power Supplies

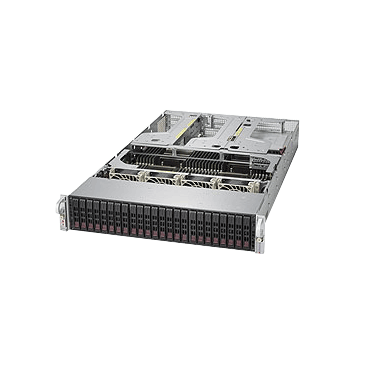

Supermicro MP SuperServers SYS-2048U-RTR4

SYS-2048U-RTR4

2U, 4-way

• Mission Critical applications, Virtualization, HPC, Data Center
• Quad Intel® Xeon® processor E5-4600 v4/v3 family (up to 22-Core)
• 11 PCI-E 3.0 total: 9 PCI-E 3.0 x8 and 2 PCI-E 3.0 x16 slots
• 48 DIMM slots support up to 6TB ECC 3DS LRDIMMs, up to DDR4-2400MHz
• 24x 2.5" Hot-swap drive bays: 8 SATA3 default, 4 NVMe + 20 SAS3 optional via AOC
• I/O: 4 GbE (via AOC, other opt. available), 1 dedicated IPMI, 1 Video, 1 COM, 5 USB 3.0 (2 rear, 2 via header, 1 Type A), 2 USB 2.0
• System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
• 4x 8cm heavy duty PWM fans
• 1000W Redundant Titanium Level Power Supplies

Supermicro MP SuperServers SYS-8027R-TRF+,SYS-8027R-7RFT+

SYS-8027R-TRF+
SYS-8027R-7RFT+

2U, 4-way

• 4-Way 12-Core MP SuperServer for Enterprise mission-critical applications, financial, oil & gas, medical, e-Commerce
• Quad Intel® Xeon® processor E5-4600 v2 family; Socket R (LGA 2011)
• 6 Hot-swap 3.5" SATA3 (TRF+) or SAS2/SATA3 (7RFT+) HDD Bays
• 1 Slim DVD-ROM drive (optional)
• 32 DIMMs support up to 1TB DDR3 1866MHz* reg. ECC memory
• 4 PCI-E 3.0 x16 (2 in x8) Low-profile Expansion slots
• Broadcom 2208 controller for 8 SAS2 (6Gbps) ports (7RFT+); HW RAID 0, 1, 5 ,6, 10
• I/O ports: 2 GbE (TRF+) / 2 10GBase-T (7RFT+), 1 Video, 1 COM/Serial, 4 USB 2.0, 1 IPMI
• System management: Built-in Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
• 3 Hot-swap PWM Cooling fans
• 1400W Redundant Platinum Level Digital Power Supplies

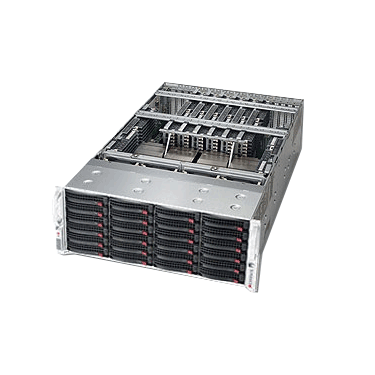

Supermicro MP SuperServers SYS-8048B-TR4FT

SYS-8048B-TR4FT

4U, 4-way

• In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
• Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
• 11 PCI-E 3.0 slots (4 x16, 7 x8)
• 96 DIMM slots support up to 12TB of DDR4 ECC 3DS LRDIMMs
• 24x 3.5" hot-swap SAS2/SATA3 drive bays
• Intel® X540 dual-port 10GBase-T LAN controller (via AOM)
• Onboard BMC supports IPMI 2.0 + Virtual Media over LAN (via AOM)
• Default HDD connection: 2 SATA3 + 4 SATA2 ports via C602J onboard
• 1620W Hot-swap (N+1) redundant Platinum Level power supplies

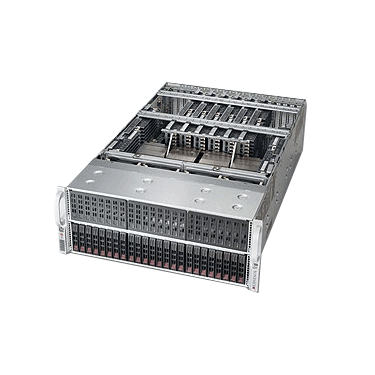

Supermicro MP SuperServers SYS-4048B-TR4FT

SYS-4048B-TR4FT

4U, 4-way

• In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
• Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
• 11 PCI-E 3.0 slots (4 x16, 7 x8)
• 96 DIMM slots support up to 12TB of DDR4 ECC 3DS LRDIMMs
• Up to 24x 2.5" hot-swap SAS3/SATA3 HDD/SSD drive bays (48x 2.5" Hot-swap HDD/SSD optional)
• Intel® X540 dual-port 10GBase-T LAN controller (via AOM)
• Onboard BMC supports IPMI 2.0 + Virtual Media over LAN (via AOM)
• Default HDD connection: 2 SATA3 + 4 SATA2 ports via C602J onboard
• 1620W Hot-swap (N+1) redundant Platinum Level power supplies

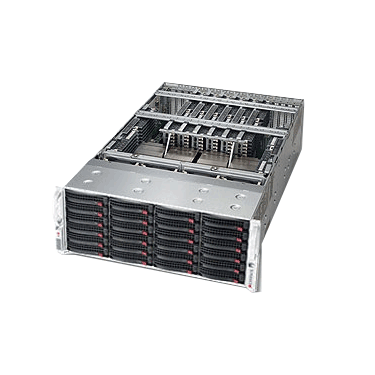

Supermicro MP SuperServers SYS-8048B-TRFT

SYS-8048B-TRFT

4U, 4-way

• In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
• Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
• 11 PCI-E 3.0 slots (4 x16, 7 x8)
• 96 DIMM slots support up to 6TB of DDR3 ECC LRDIMMs/RDIMMs
• Up to 24x 3.5" hot-swap SAS2/SATA3 HDD/SSD drive bays
• Intel® X540 dual-port 10GBase-T LAN controller (via AOM)
• Onboard BMC supports IPMI 2.0 + Virtual Media over LAN (via AOM)
• Default HDD connection: 2 SATA3 + 4 SATA2 ports via C602J onboard
• 1620W Hot-swap (N+1) redundant Platinum Level power supplies

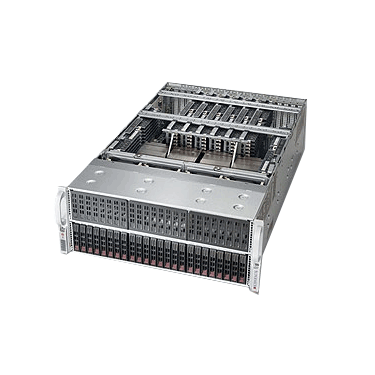

Supermicro MP SuperServers SYS-4048B-TRFT

SYS-4048B-TRFT

4U, 4-way

• In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
• Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
• 11 PCI-E 3.0 slots (4 x16, 7 x8)
• 96 DIMM slots support up to 6TB of DDR3 ECC LRDIMMs/RDIMMs
• Up to 24x 2.5" hot-swap SAS3/SATA3 HDD/SSD drive bays (48x 2.5" Hot-swap HDD/SSD optional)
• Intel® X540 dual-port 10GBase-T LAN controller (via AOM)
• Onboard BMC supports IPMI 2.0 + Virtual Media over LAN (via AOM)
• Default HDD connection: 2 SATA3 + 4 SATA2 ports via C602J onboard
• 1620W Hot-swap (N+1) redundant Platinum Level power supplies

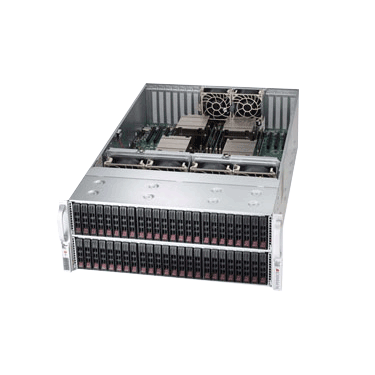

Supermicro MP SuperServers SYS-4047R-7JRFT

SYS-4047R-7JRFT

4U, 4-way

• 4-Way 12-Core MP SuperServer for Enterprise mission-critical applications, e-Commerce, Virtualization, graphics
• Quad Intel® Xeon® processor E5-4600 v2 family; Socket R (LGA 2011)
• 24 Hot-swap 3.5" SAS2/SATA3 HDD Bays
• 24 DIMMs support up to 768GB DDR3 1866MHz* reg. ECC memory
• 8 PCI-E 3.0 x16 (1 in x8) Expansion slots
• Dual Broadcom 2308 controller for 16 SAS2 (6Gbps) ports; SAS IT mode
• I/O ports: 2 10GBase-T, 1 Video, 1 COM/Serial, 4 USB 2.0, 1 IPMI, 1 PS2
• System management: Built-in Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
• 4x 9cm + 3x 8cm heavy duty fans w/ optimal fan speed control
• 1620W Redundant Platinum Level Power Supplies

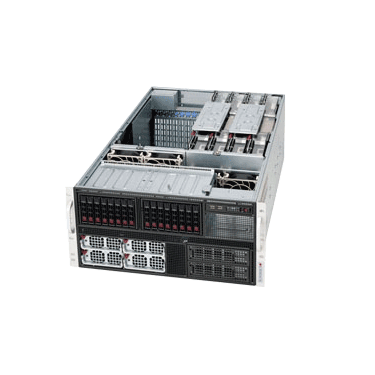

Supermicro MP SuperServers SYS-5086B-TRF

SYS-5086B-TRF

5U, 8-way

• Enterprise mission-critical applications, e-Commerce, virtualization, graphics, super-high computing performance
• Up to 8 Intel® Xeon® processors E7-8800 family (10-Core) or Intel® Xeon® processor 7500 series (8-Core)
• Dual Intel® 7500 chipsets
• Auto-switch: 4 PCI-E 2.0 x16 (support 4 GPU cards) + 2 PCI-E 2.0 x8 (in x16) slots or 10 PCI-E 2.0 x8 slots
• 64 DIMM slots support up to 2TB of DDR3 ECC reg. DIMMs
• Up to 24x 2.5" hot-swap SAS/SATA HDD/SSD devices
• Intel® 82576 dual-port Gigabit Ethernet controller
• Onboard BMC supports IPMI 2.0 + Virtual Media over LAN
• 6 SATA2 ports onboard
• 2800W hot-swap (2+2) redundant Gold Level power supplies

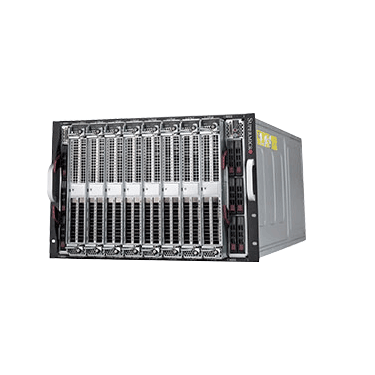

Supermicro MP SuperServers SYS-7088B-TR4FT

SYS-7088B-TR4FT

7U, 8-way

• In-memory Database, ERP, CRM, Business Intelligence, Scientific Research, Virtualization
• 8 Intel® Xeon® processor E7-8800 v4/v3 family (up to 24-Core)
• Up to 15 or 23 (OEM) PCI-E 3.0 slots, U.2 NVMe support option available
• 192 DDR4 memory DIMM slots, support up to 24TB of DDR4 ECC 3DS LRDIMMs
• Up to 12x 2.5" hot-swap SAS3/SATA3 HDD/SSD drive bays
• 4 10GBase-T LAN ports (via SIOM)
• Onboard BMC supports IPMI 2.0
• Default HDD connection: 2 SATA2 ports via C602J onboard
• 2 SATA3 SATA DOM + 2 SATA2 M.2 for internal storage device connection via C602J onboard
• 1600W Hot-swap (N+1) redundant Titanium Level power supplies

Supermicro MP SuperServers SYS-8048B-TR4F,SYS-8048B-C0R4FT

SYS-8048B-TR4F
SYS-8048B-C0R4FT

4U Tower, 4-way

• Enterprise mission-critical applications, financial, oil & gas, medical, e-Commerce
• Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
• 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Full-height slots
• 32 DIMM slots support up to 4TB of DDR4 ECC 3DS LRDIMMs
• 5x 3.5" Hot-swap SATA (TR4F) or SAS3 (C0R4FT) drive bays
• Onboard Broadcom 3008 controller (C0R4FT)
• I/O: 2 GbE (TR4F) / 2 10GBase-T (C0R4FT), 1 Video, 1 COM, 3 USB 2.0
• System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
• 3x 9cm + 3x 8cm Heavy Duty fans with speed control
• 1400W Redundant Platinum Level Digital Power Supplies

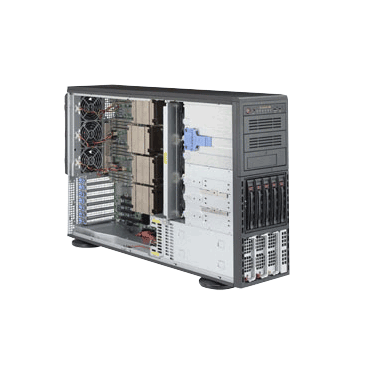

Supermicro MP SuperServers SYS-8048B-TR3F,SYS-8048B-C0R3FT

SYS-8048B-TR3F
SYS-8048B-C0R3FT

4U Tower, 4-way

• Enterprise mission-critical applications, financial, oil & gas, medical, e-Commerce
• Quad Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
• 2 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 Full-height slots
• 32 DIMM slots support up to 2TB of DDR3 ECC LRDIMMs
• 5x 3.5" Hot-swap SATA (TR3F) or SAS3 (C0R3FT) drive bays
• Onboard Broadcom 3008 controller (C0R3FT)
• I/O: 2 GbE (TR3F) / 2 10GBase-T (C0R3FT), 1 Video, 1 COM, 3 USB 2.0
• System management: Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
• 3x 9cm + 3x 8cm Heavy Duty fans with speed control
• 1400W Redundant Platinum Level Digital Power Supplies

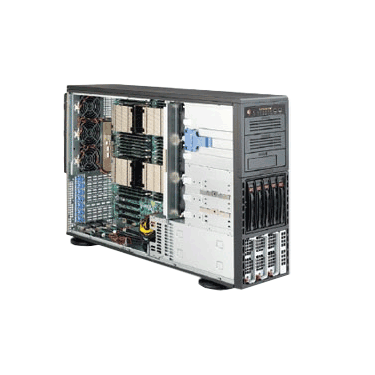

Supermicro MP SuperServers SYS-8047R-TRF+,SYS-8047R-7RFT+

SYS-8047R-TRF+
SYS-8047R-7RFT+

4U Tower, 4-way

• 4-Way 12-Core MP SuperServer for Enterprise mission-critical applications, e-Commerce, Virtualization, graphics
• Quad Intel® Xeon® processor E5-4600 v2 family; Socket R (LGA 2011)
• 5 Hot-swap 3.5" SATA3 (TRF+) or SAS2/SATA3 (7RFT+) HDD Bays
• 3x 5.25" Peripheral Bays
• 32 DIMMs support up to 1TB DDR3 1866MHz* reg. ECC memory
• 4 PCI-E 3.0 x16 (2 in x8) Expansion slots
• Broadcom 2208 controller for 8 SAS2 (6Gbps) ports (7RFT+); HW RAID 0, 1, 5, 6, 10
• I/O ports: 2 GbE (TRF+) / 2 10GBase-T (7RFT+), 1 Video, 1 COM/Serial, 4 USB 2.0, 1 IPMI
• System management: Built-in Server management tool (IPMI 2.0, Virtual Media over LAN) with dedicated LAN port
• 6 heavy duty fans w/ optimal fan speed control
• 1400W Redundant Platinum Level Digital Power Supplies

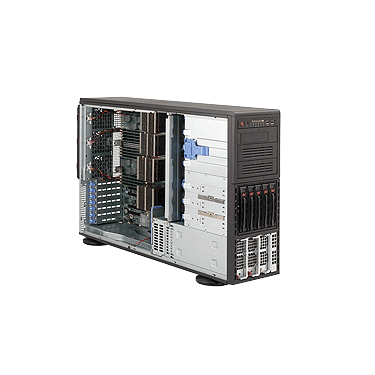

Supermicro MP SuperServers SYS-8046B-TRLF

SYS-8046B-TRLF

4U Tower, 4-way

• Enterprise mission-critical applications, e-Commerce, virtualization, graphics
• Up to 4 Intel® Xeon® processors E7-4800 family (10-Core) or Intel® Xeon® processor 7500 series (8-Core)
• Intel® 7500 chipset
• Up to 1TB DDR3 1066/800 MHz ECC registered DIMM
• Auto-switch: 1 PCI-E 2.0 x16 + 1 PCI-E 2.0 x8 + 2 PCI-E 2.0 x4 or 2 PCI-E 2.0 x16 or 3 PCI-E 2.0 x8 + 2 PCI-E x4 slots
• Intel® 82576 dual-port Gigabit Ethernet controller
• 5 Hot-swap drive bays
• 1400W Gold Level high-efficiency redundant power supplies
• Virtual Media over LAN

Supermicro MP SuperServers SYS-8046B-6RF,SYS-8046B-TRF

SYS-8046B-6RF

4U Tower, 4-way

• Enterprise mission-critical applications, e-Commerce, virtualization, graphics
• Up to 4 Intel® Xeon® processors E7-4800 family (10-Core) or Intel® Xeon® processor 7500 series (8-Core)
• Intel® 7500 chipset
• Up to 1TB DDR3 1066/800 MHz ECC registered DIMM
• Auto-switch: 2 PCI-E 2.0 x16 or 4 PCI-E 2.0 x8 slots or 1 PCI-E 2.0 x16 + 2 PCI-E 2.0 x8
• Intel® 82576 dual-port Gigabit Ethernet controller
• 5 Hot-swap drive bays: SAS/SATA drives support
• 1400W Gold Level high-efficiency redundant power supplies
• Integrated IPMI 2.0 with dedicated LAN
• 8046B-6RF: Broadcom 2108 8-Port 6Gbps SAS2 controller with RAID 0, 1, 5, 6 10
