Model Number |
Technical Specifications |
![Supermicro BigTwin 2U Rackmount SYS-2029BT-HNTR](https://www.willjaya.com/media/wysiwyg/Supermicro_BigTwin/thumbnails/SYS-2029BT-HNTR.png) |
SYS-2029BT-HNTR
BigTwin™
4 NVMe/SATA3
+ 2 SATA3 per Node |
• 4 DP nodes in 2U; depth 28.5", Each Node:
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 4 Hot-swap 2.5" NVMe/SATA3 + 2 Hot-swap 2.5" SATA3 drive bays per node
• 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
• 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
• 4 heavy duty 80mm fans w/ optimal fan speed control
• 2200W Redundant Titanium Level (96%) Power Supplies |
![Supermicro BigTwin 2U Rackmount SYS-2029BZ-HNR](https://www.willjaya.com/media/wysiwyg/Supermicro_BigTwin/thumbnails/SYS-2029BZ-HNR.png) |
SYS-2029BZ-HNR
BigTwin™
6 NVMe per Node
N+1 Cooling |
• 4 DP nodes in 2U; depth 28.75", Each Node
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4 2666MHz
• 6 Hot-swap 2.5" NVMe drive bays per node; 2 M.2 SATA3 or NVMe support
• 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
• 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
• 16 Heavy duty 40x56mm fans w/ optimal fan speed control (4 fans per node)
• 2600W Redundant Titanium Level (96%) Power Supplies |
![Supermicro BigTwin 2U Rackmount SYS-2029BT-HNC1R](https://www.willjaya.com/media/wysiwyg/Supermicro_BigTwin/thumbnails/SYS-2029BT-HNC1R.png) |
SYS-2029BT-HNC1R
BigTwin™
4 NVMe/SAS3/SATA3
+
2 SAS3/SATA3 per Node |
• 4 DP nodes in 2U; depth 28.5", Each Node:
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4 2666MHz
• 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
• SAS3 support via Broadcom 3108; RAID 0, 1, 5, 6, 10, 50, 60
• 1 PCI-E 3.0 x16 Low-profile slot, 1 Networking SIOM card support
• 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
• 4 heavy duty 80mm fans w/ optimal fan speed control
• 2200W Redundant Titanium Level (96%) Power Supplies |
![Supermicro BigTwin 2U Rackmount SYS-2029BT-HNR](https://www.willjaya.com/media/wysiwyg/Supermicro_BigTwin/thumbnails/SYS-2029BT-HNR.png) |
SYS-2029BT-HNR
BigTwin™
6 NVMe per Node |
• 4 DP nodes in 2U; depth 28.5", Each Node:
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 6 Hot-swap 2.5" NVMe drive bays per node
• 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
• 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
• 4 heavy duty 80mm fans w/ optimal fan speed control
• 2200W Redundant Titanium Level (96%) Power Supplies |
![Supermicro BigTwin 2U Rackmount SYS-2029BT-HNC0R](https://www.willjaya.com/media/wysiwyg/Supermicro_BigTwin/thumbnails/SYS-2029BT-HNC0R.png) |
SYS-2029BT-HNC0R
BigTwin™
4 NVMe/SAS3/SATA3
+
2 SAS3/SATA3 per Node |
• 4 DP nodes in 2U; depth 28.5", Each Node:
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
• SAS3 support via Broadcom 3008; IT mode
• 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
• 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
• 4 heavy duty 80mm fans w/ optimal fan speed control
• 2200W Redundant Titanium Level (96%) Power Supplies |
![Supermicro BigTwin 2U Rackmount SYS-2029BT-HTR](https://www.willjaya.com/media/wysiwyg/Supermicro_BigTwin/thumbnails/SYS-2029BT-HTR.png) |
SYS-2029BT-HTR
BigTwin™
6 SATA3 per Node |
• 4 DP nodes in 2U; depth 28.5", Each Node:
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 6 Hot-swap 2.5" SATA3 drive bays per node
• 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
• 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
• 4 heavy duty 80mm fans w/ optimal fan speed control
• 2200W Redundant Titanium Level (96%) Power Supplies |
![Supermicro BigTwin 2U Rackmount SYS-2029BT-DNC0R](https://www.willjaya.com/media/wysiwyg/Supermicro_BigTwin/thumbnails/SYS-2029BT-DNC0R.png) |
SYS-2029BT-DNC0R
BigTwin™
4 NVMe/SAS3
+
8 SAS3 per Node |
• 2 DP nodes in 2U; depth 28.5", Each Node:
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMMs; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2666MHz
• 4 NVMe/SAS3 + 8 SAS3 Hot-swap 2.5" drive bays per node
• SAS3 (12Gbps) support via Broadcom 3216; IT mode
• 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16, 1 Networking SIOM card support
• 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
• 4 heavy duty 80mm fans w/ optimal fan speed control
• 2200W Redundant Titanium Level (96%) Power Supplies |
![Supermicro BigTwin 2U Rackmount SYS-6029BT-DNC0R](https://www.willjaya.com/media/wysiwyg/Supermicro_BigTwin/thumbnails/SYS-6029BT-DNC0R.png) |
SYS-6029BT-DNC0R
BigTwin™
3 NVMe/SAS3
+ 3 SAS3 per Node |
• 2 DP nodes in 2U; depth 30.11", Each Node:
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processor; dual UPI up to 10.4GT/s
• 24 DIMM slots; up to 3TB ECC 3DS L/RDIMM, up to DDR4‑2666MHz
• 3 NVMe/SAS3 + 3 SAS3 Hot-swap 3.5" drive bays per node, 2 Internal M.2 NVMe/SATA slots
• SAS3 support via Broadcom 3008; IT mode
• 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16, 1 Networking SIOM card support
• 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
• 4 heavy duty 80mm fans w/ optimal fan speed control
• 2200W Redundant Titanium Level (96%) Power Supplies |
![Supermicro BigTwin 2U Rackmount SYS-6029BT-HNC0R](https://www.willjaya.com/media/wysiwyg/Supermicro_BigTwin/thumbnails/SYS-6029BT-HNC0R.png) |
SYS-6029BT-HNC0R
BigTwin™
3 NVMe/SAS3 per Node |
• 4 DP nodes in 2U; depth 30.11", Each Node:
• Dual Socket P (LGA 3647) support: Intel® Xeon® Scalable processors; dual UPI up to 10.4GT/s
• 24 DIMM slots; up to 3TB ECC 3DS L/RDIMM, up to DDR4‑2666MHz
• 3 Hot-swap NVMe/SAS3 drive bays per node
• SAS3 support via Broadcom 3008; IT mode
• 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
• 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
• 4 heavy duty 80mm fans w/ optimal fan speed control
• 2200W Redundant Titanium Level (96%) Power Supplies |
![Supermicro BigTwin 2U Rackmount SYS-2028BT-HNC1R+](https://www.willjaya.com/media/wysiwyg/Supermicro_BigTwin/thumbnails/SYS-2028BT-HNC1R_.png) |
SYS-2028BT-HNC1R+
BigTwin™
4 NVMe/SAS3/SATA3
+
2 SAS3/SATA3 per Node |
• 4 DP nodes in 2U; depth 28.75", Each Node:
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2400MHz
• 1 PCI-E 3.0 x16 Low-profile slot, 1 Networking SIOM card support
• At least one network card must be bundled
• 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
• SAS3 support via Broadcom 3108; HW RAID 0, 1, 5, 6, 10, 50, 60
• 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty 80mm fans w/ optimal fan speed control
• 2200W Redundant Titanium Level (96%) Power Supplies |
![Supermicro BigTwin 2U Rackmount SYS-6028BT-HNC0R+](https://www.willjaya.com/media/wysiwyg/Supermicro_BigTwin/thumbnails/SYS-6028BT-HNC0R_.png) |
SYS-6028BT-HNC0R+
BigTwin™
3
NVMe/SAS3 per Node |
• 4 DP nodes in 2U; depth 30.5", Each Node:
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2400MHz
• 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
• At least one network card must be bundled
• 3 Hot-swap 3.5” NVMe/SAS3 drive bays per node
• SAS3 support via Broadcom 3008; IT mode
• 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0, 1 SuperDOM
• 4 heavy duty 80mm fans w/ optimal fan speed control
• 2200W Redundant Titanium Level (96%) Power Supplies |
![Supermicro BigTwin 2U Rackmount SYS-2028BT-HNR+](https://www.willjaya.com/media/wysiwyg/Supermicro_BigTwin/thumbnails/SYS-2028BT-HNR_.png) |
SYS-2028BT-HNR+
24 NVMe support
6 NVMe per Node |
• 4 DP nodes in 2U; depth 28.75", Each Node:
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2400MHz
• 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
• At least one network card must be bundled
• 6 Hot-swap 2.5" NVMe drive bays per node
• 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty 80mm fans w/ optimal fan speed control
• 2200W Redundant Titanium Level (96%) High-efficiency Power Supplies |

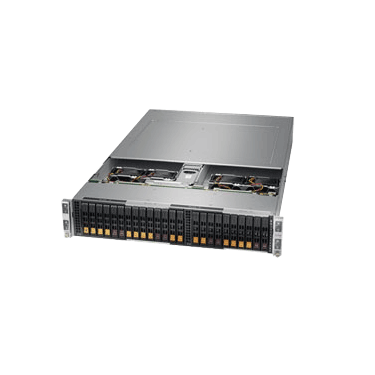

![Supermicro BigTwin 2U Rackmount SYS-2028BT-HNC0R+](https://www.willjaya.com/media/wysiwyg/Supermicro_BigTwin/thumbnails/SYS-2028BT-HNC0R_.png) |
SYS-2028BT-HNC0R+
16 NVMe support
4 NVMe/SAS3/SATA3
+
2 SAS3/SATA3 per Node |
• 4 DP nodes in 2U; depth 28.75", Each Node:
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2400MHz
• 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
• At least one network card must be bundled
• 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5" drive bays per node
• SAS3 support via Broadcom 3008; IT mode
• 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty 80mm fans w/ optimal fan speed control
• 2200W Redundant Titanium Level (96%) High-efficiency Power Supplies |

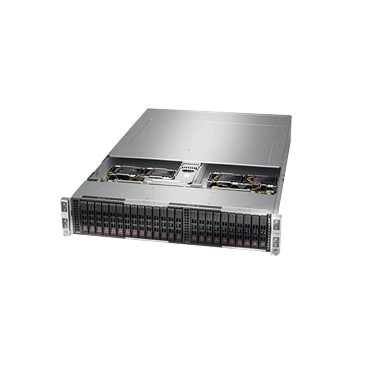

![Supermicro BigTwin 2U Rackmount SYS-2028BT-HTR+](https://www.willjaya.com/media/wysiwyg/Supermicro_BigTwin/thumbnails/SYS-2028BT-HTR_.png) |
SYS-2028BT-HTR+
BigTwin™
6 SATA3 per Node |
• 4 DP nodes in 2U; depth 28.75", Each Node:
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family
• 24 DIMM slots; up to 3TB ECC 3DS LRDIMM or RDIMM DDR4‑2400MHz
• 2 PCI-E 3.0 x16 Low-profile slots, 1 Networking SIOM card support
• At least one network card must be bundled
• 6 Hot-swap 2.5" SATA3 drive bays per node
• 1 Dedicated IPMI port, 1 VGA, 2 USB 3.0
• System management: Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty 80mm fans w/ optimal fan speed control
• 2200W Redundant Titanium Level (96%) High-efficiency Power Supplies |
