MicroBlade Enclosure

The Supermicro MicroBlade microservers computing platforms. MicroBlade servers simplify cabling and optimize the amount of space required.
WillJaya Server Quote
Technical Support Request
Quality Control Handling
Will Jaya 3 Years Warranty Guarantee

By Form Factor :

Model Number Technical Specifications

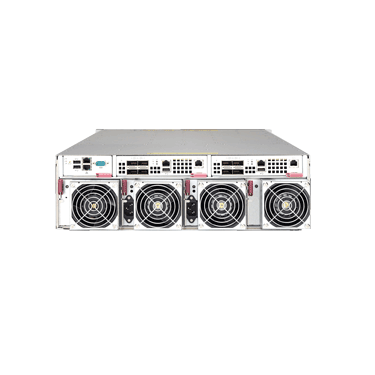

Supermicro Microblade Enclosure MBE-314E-220

MBE-314E-220

• Up to 14 hot-plug server blades
• Intel® based server blades
• Power LED, Fault LED
• Up to 2 hot-swap MBM-GEM-001/003i/003s or MBM-XEM-001 switches
• 1 hot-swap Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities
• Management module not included in the enclosure
• Up to 2 hot-swap high-efficiency 2000W, redundant power supplies
• Up to 4 cooling fans
• 5.215" x 17.67" x 36.10" (132.5mm x 449mm x 917mm)

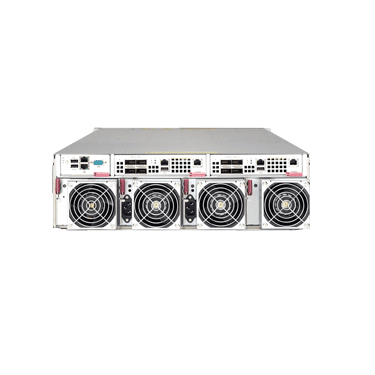

Supermicro Microblade Enclosure MBE-314E-416

MBE-314E-416

• Up to 14 hot-plug processor blades
• Intel® based server blades
• Power LED, Fault LED
• Up to 2 hot-swap MBM-GEM-001/003i/003s or MBM-XEM-001 switches
• 1 hot-swap Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities
• Management module not included in the enclosure
• Up to 4 hot-swap high-efficiency 1600W, N+1 or N+N redundant power supplies
• Up to 4 cooling fans
• 5.215" x 17.67" x 34.45" (132.5mm x 449mm x 875mm)

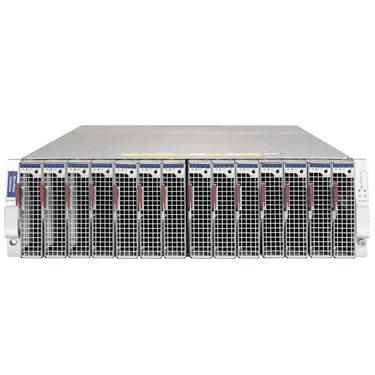

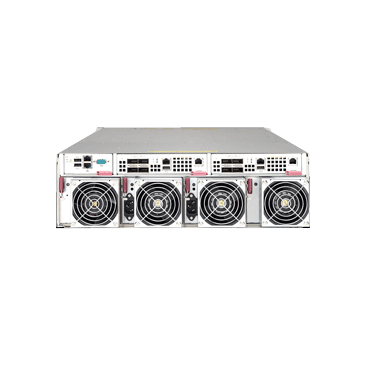

Supermicro Microblade Enclosure MBE-314E-420

MBE-314E-420

• Up to 14 hot-plug server blades
• Supports Intel® based blades
• Power LED, Fault LED
• Up to 2 hot-swap MBM-GEM-001/003i/003s or MBM-XEM-001 switches
• 1 hot-swap Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities
• Management module not included in the enclosure
• Up to 4 hot-swap high-efficiency 2000W, N+1 or N+N redundant power supplies
• Up to 4 cooling fans
• 5.215" x 17.67" x 36.10" (132.5mm x 449mm x 917mm)

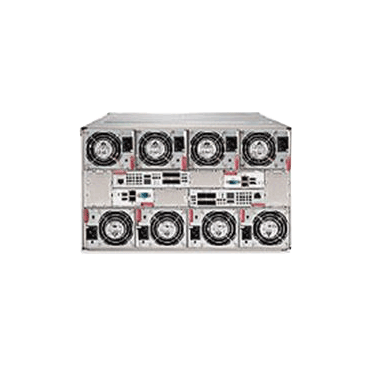

Supermicro Microblade Enclosure MBE-628E-420

MBE-628E-420

• Up to 28 hot-plug processor blades
• Intel® based blades, optimize design for Intel E3 and E5 based server blades
• Power LED, Fault LED
• Up to 2 hot-swap MBM-GEM-001/003i/003S or MBM-XEM-001 switches
• Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
• Management module not included in the enclosure
• Up to 4 hot-swap high-efficiency 2000W, N+1 or N+N redundant power supplies
• Up to 8 cooling fans
• 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm)
• Enclosure chassis with four high-efficiency 2000W power supplies + four fan modules

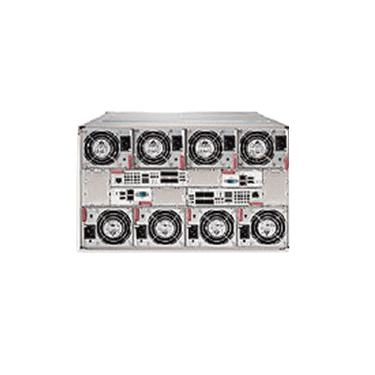

Supermicro Microblade Enclosure MBE-628E-820

MBE-628E-820

• Up to 28 hot-plug processor blades
• Intel® based blades, optimize design for Intel E3 and E5 based server blades
• Power LED, Fault LED
• Up to 2 hot-swap MBM-GEM-001/003i/003S or MBM-XEM-001 switches
• Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
• Management module not included in the enclosure
• Up to 4 hot-swap high-efficiency 2000W, N+1 or N+N redundant power supplies
• Up to 8 cooling fans
• 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm)
• Enclosure chassis with eight high-efficiency 2000W power supplies

Supermicro Microblade Enclosure MBE-628E-416

MBE-628E-416

• Up to 28 hot-plug server blades
• Intel® based blades, optimize design for Intel E3 and E5 based server blades
• Power LED, Fault LED
• Up to 2 hot-swap MBM-GEM-001/003i/003S or MBM-XEM-001 switches
• Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
• Management module not included in the enclosure
• Up to 4 hot-swap high-efficiency 1600W, N+1 or N+N redundant power supplies
• Up to 8 cooling fans
• 10.43" x 17.67" x 34.45" (265mm x 449mm x 875mm)
• Enclosure chassis with four high-efficiency 1600W power supplies + four fan modules

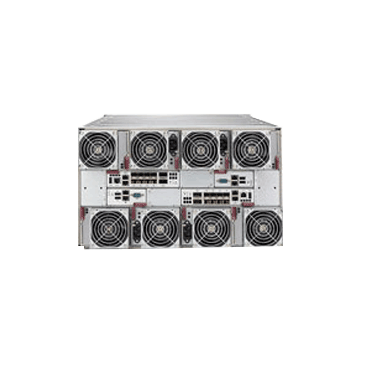

Supermicro Microblade Enclosure MBE-628L-416

MBE-628L-416

• Up to 28 hot-plug server blades
• Intel® based blades, optimize design for Intel Atom based server blades
• Power LED, Fault LED
• Up to 2 hot-swap MBM-GEM-001/003i/003S switches
• Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
• Management module not included in the enclosure
• Up to 4 hot-swap high-efficiency 1600W, N+1 or N+N redundant power supplies
• Up to 8 cooling fans
• 10.43" x 17.67" x 34.45" (265mm x 449mm x 875mm)
• Enclosure chassis with four high-efficiency 1600W power supplies + four fan modules

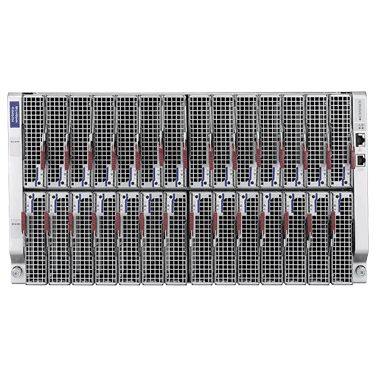

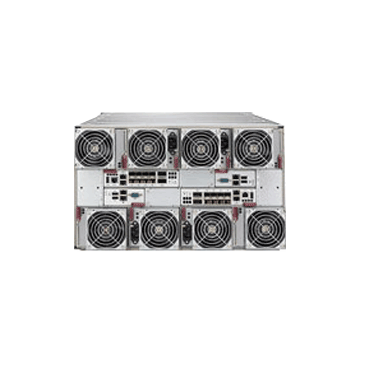

Supermicro Microblade Enclosure MBE-628L-816

MBE-628L-816

• Up to 28 hot-plug processor blades
• Intel® based blades, optimize design for Intel Atom based server blades
• Power LED, Fault LED
• Up to 2 hot-swap MBM-GEM-001/003i/003S switches
• Up to 2 hot-plug Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities
• Management module not included in the enclosure
• Up to 8 hot-swap High-efficiency 1600W, N+1 or N+N redundant power supplies
• Up to 8 cooling fans
• 10.43" x 17.67" x 34.45" (265mm x 449mm x 875mm)
• Enclosure chassis with eight High-efficiency 1600W power supplies
