2U Twin2®

Supermicro High-Density 2U Multi-Node Twin 2 customized and configured servers for HPC, Cloud, DataCenters, and Enterprise Application.
WillJaya Server Quote
Technical Support Request
Quality Control Handling
Will Jaya 3 Years Warranty Guarantee

By Form Factor :

Model Number Technical Specifications
Supermicro Multi Node 2U Twin 2 Servers SYS-6028TR-HTFR

6028TR-HTFR

6028TR-HTR

• 4x DP nodes in 2U, depth 28.5", Each Node (x4 nodes):
•  Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor
   E5-2600 v3 family; QPI up to 9.6GT/s
• 8x DIMM slots; up to 512GB DDR4 2133MHz reg. ECC memory
• 1x PCI-E 3.0 x16 and 1x PCI-E x8 connectors for SMCI AOC
• 3x 3.5" Hot-swap SAS2/SATA3 drive bays
• I/O ports: 2x GbE, 1x Video, 1x RS232, 2x USB 3.0
• 1x InfiniBand port (FDR, 56Gbps), w/ QSFP connector ('FR' SKU)
• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4 heavy duty fans w/ optimal fan speed control
• 1600W Redundant Titanium Level (96%) High-efficiency
   Digital Power Supplies

Supermicro Multi Node 2U Twin 2 Servers SYS-2028TR-H72RR

2028TR-H72R

2028TR-H72FR

2028TR-HTR

2028TR-HTFR

• 4x DP nodes in 2U; Each Node (x4 nodes):
• Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor
   E5-2600 v3 family; QPI up to 9.6GT/s
• 6x Hot-swap 2.5" HDD Bays: SATA3 ('HT' SKUs),
   SAS2 via LSI 2208 ('H72' SKUs)
• 8x DIMM slots; up to 512GB DDR4 2133MHz reg. ECC memory
• 1x PCI-E 3.0 x16 Low-profile slot
• I/O ports: 2 GbE, 1 Video, 2 USB 3.0 (rear)
• System management: Built-in Server management tool
Titanium Level (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• Mellanox ConnectX-3 FDR ('FR' SKUs) IB Controller
• 4x heavy duty fans w/ optimal fan speed control
• 1600W Redundant Titanium Level (96%) High-efficiency
   Digital Power Supplies

Supermicro Multi Node 2U Twin 2 Servers SYS-2027TR-HTRF

2027TR-HTRF+

2027TR-H72RF+

2027TR-H71RF+

2027TR-H70RF+

• 4x DP nodes in 2U; Each Node (x4 nodes):
• Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600
   or E5-2600 v2 family
• 6x Hot-swap 2.5" HDD Bays: SATA3 ('T'), SAS2 via LSI 2208 ('72'
   SKUs), SAS2 via LSI 2108 ('71' SKUs), SAS via LSI 2008 ('70' SKUs)
• 16x DIMMs, up to 1TB, up to 1866MHz DDR3 memory
• 1x PCI-E 3.0 x8 Micro Low-profile slot (support FDR, SFP+, or
   dual port SFP+ via optional AOC)
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 5 USB 2.0 (1 Type-A)
• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4x heavy duty fans w/ optimal fan speed control
• 1620W Redundant Platinum Level Power Supplies

Supermicro Multi Node 2U Twin 2 Servers SYS-6027TR-HTRF+

6027TR-HTRF+

6027TR-H71RF+

6027TR-H70RF+

• 4x DP nodes in 2U; Each Node (x4 nodes):
• Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600
   or E5-2600 v2 family
• 3x Hot-swap 3.5" HDD Bays: SATA3 ('T')
   SAS2 via LSI 2108 ('71' SKUs), or SAS via LSI 2008 ('70' SKUs)
• 16x DIMMs, up to 1TB, up to 1866MHz DDR3 memory
• 1x PCI-E 3.0 x8 Micro Low-profile slot (support QDR, SFP+, or
   dual port SFP+ via optional AOC)
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 5 USB 2.0 (1 Type-A)
• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• 4x heavy duty fans w/ optimal fan speed control
• 1620W Redundant Platinum Level Power Supplies

Supermicro Multi Node 2U Twin 2 Servers SYS-2027TR-HTRF

2027TR-HTRF

2027TR-H72RF

2027TR-H71RF

2027TR-H70RF

2027TR-HTQRF

2027TR-H72QRF

2027TR-H71QRF

2027TR-H70QRF

2027TR-HTFRF

2027TR-H72FRF

2027TR-H71FRF

2027TR-H70FRF

• 4x DP nodes in 2U; Each Node (x4 nodes):
• Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600
   or E5-2600 v2 family
• 6x Hot-swap 2.5" HDD Bays: SATA3 ('HT'), SAS2 via LSI 2208 ('H72'),
   SAS2 via LSI 2108 ('H71' SKUs), or SAS via LSI 2008 ('H70' SKUs)
• 8x DIMMs, up to 512GB, up to 1866MHz DDR3 memory
• 1x PCI-E 3.0 x16 Low-profile (LP) slot
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 3 USB 2.0
• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• Mellanox ConnectX QDR (QRF) / FDR (FRF) IB Controller
• 4x heavy duty fans w/ optimal fan speed control
• 1620W Redundant Platinum Level Power Supplies

Supermicro Multi Node 2U Twin 2 Servers SYS-6027TR-HTRF

6027TR-HTRF

6027TR-H71RF

6027TR-H70RF

6027TR-HTQRF

6027TR-H71QRF

6027TR-H70QRF

6027TR-HTFRF

6027TR-H71FRF

6027TR-H70FRF

• 4x DP nodes in 2U; Each Node (x4 nodes):
• Dual Socket R (LGA 2011) support Intel® Xeon® processor E5-2600
   or E5-2600 v2 family
• 3x Hot-swap 3.5" HDD Bays: SATA3 ('T')
   SAS2 via LSI 2108 ('71' SKUs), or SAS via LSI 2008 ('70' SKUs)
• 8x DIMMs, up to 512GB, up to 1866MHz DDR3 memory
• 1x PCI-E 3.0 x16 Low-profile (LP) slot
• I/O ports: 2 GbE, 1 Video, 1 COM/Serial, 3 USB 2.0
• System management: Built-in Server management tool
   (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
• Mellanox ConnectX QDR (QRF) / FDR (FRF) IB Controller
• 4x heavy duty fans w/ optimal fan speed control
• 1620W Redundant Platinum Level Power Supplies

Supermicro Multi Node 2U Twin 2 Servers SYS-2026TT-H6IBQRF

SYS-2026TT-H6IBQRF

SYS-2026TT-H6IBXRF

SYS-2026TT-H6RF

• 4 DP nodes share one 2U chassis
• 4x Two Intel® Xeon® 5600/5500 series processors
• Intel 5520 chipset with QPI up to 6.4 GT/s
• 4x 8x DIMMs, up to 512GB, up to 1866MHz DDR3 memory
• 4x PCI-E 2.0 x16 low-profile expansion slots
• 4x Onboard Mellanox ConnectX QDR/DDR Infiniband Controller (2026TT-H6IBQRF and 2026TT-H6IBXRF SKUs only)
• 4x Six 2.5" hot-swap SAS drives (with LSI 2108 SAS controller)
• 4x Dual LAN w/Intel Gigabit Ethernet controllers
• 4x Matrox G200eW graphics controllers
• 4x sets of rear I/O ports including 2 USB, VGA, COM, 2 LAN ports
• 4x 80mm heavy-duty PWM fans w/optimal fan speed control
• 4x BMC supporting IPMI 2.0, Media/KVM over LAN
• 1400W Redundant Gold Level Power Supplies with PMbus
• Independent power control

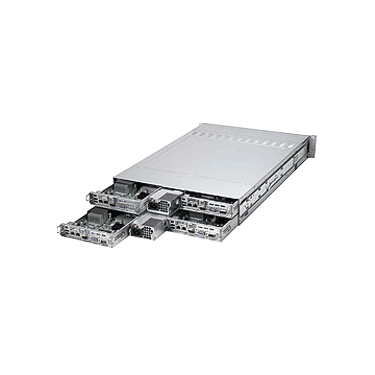

Supermicro 2U Twin2 SYS-2016Ti-HTRF

SYS-2016Ti-HTRF

• 4 hot-pluggable nodes share one 2U chassis
• Cable-less, optimized design!
• 4 sets of Intel® Xeon® 3400 series processors
• Up to 24 DIMM slots in 2U
• 4 sets of 6x 2.5" hot-swap drive bays
• 4x 80mm heavy duty fans
• 4x front control panels with UID
• 4x PCI-E 2.0 x16 low-profile expansion slots
• 4 sets of dual Gigabit Ethernet LAN
• 4 sets of COM/VGA output
• 4x BMC supporting IPMI 2.0, Media/KVM over LAN
• 920W Redundant Platinum Level Power Supplies

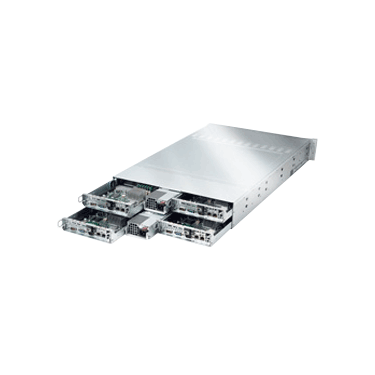

Supermicro 2U Twin2 SYS-5026Ti-BTRF

SYS-5026Ti-BTRF

SYS-5026Ti-HTRF

• 4 hot-pluggable nodes share one 2U chassis
• Cable-less, optimized design! (5026Ti-HTRF)
• 4 sets of Intel® Xeon® 3400 series processors
• Up to 24 DIMM slots in 2U
• 4 sets of 3x 3.5" hot-swap drive bays
• 4x 80mm heavy duty fans
• 4x front control panels with UID
• 4x PCI-E 2.0 x16 low-profile expansion slots
• 4 sets of dual Gigabit Ethernet LAN
• 4 sets of COM/VGA output
• 4x BMC supporting IPMI 2.0, Media/KVM over LAN
• 920W Redundant Platinum Level Power Supplies
