Details

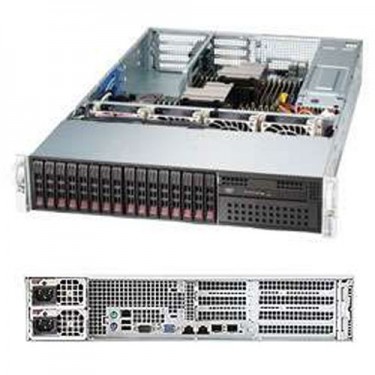

support via LSI 2208 using Supermicro Super X9DRW-7TPF+ Server Motherboard and CSE-219A-R920WB 2U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-2027R-72RFTP+ | • SuperServer 2027R-72RFTP+ (Black) |
Motherboard |
|
|---|---|
| Super X9DRW-7TPF+ | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket R (LGA 2011) |
| Cache | • Up to 30MB |
| System Bus | • QPI up to 8 GT/s |
| Note | • † BIOS version 3.0 or above is required |
System Memory |
|
|---|---|
| Memory Capacity |
• 24x 240-pin DDR3 DIMM slots • Up to 1.5TB DDR3 ECC LRDIMM • Up to 768GB DDR3 ECC Registered memory (RDIMM) • Up to 192GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C602J chipset |
| SATA | • Via Cable for SATA controller • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1 |
| SAS | • SAS2 from LSI 2208 (1GB cache) • HW RAID 0, 1, 5, 6, 10, 50, 60 support • Supports up to 16 drives |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
| Network Controllers | • Intel® 82599 Dual Port 10G SFP+ |
| Graphics | • Matrox G200eW |
Input/Output |
|
|---|---|
| SAS | • 8x SAS2 ports (6Gbps) |
| LAN |
• 2x SFP+ 10GbE LAN ports • 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 5x USB 2.0 ports total (2x rear + 2x via header + 1x Type A) |
| VGA | • 1x VGA port |
| Serial Port/Header | • 1x Fast UART 16550 port / 1 Header
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-219A-R920WB |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 26.93" (684mm) |
| Weight | • 67 lbs (30kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power status LED • HDD activity LED • 2x Network activity LEDs • System Overheat LED • Power fail LED |
Expansion Slot (via riser card) |
|
|---|---|
| PCI-Express | • Left: 1 PCI-E 3.0 (x16), 2 PCI-E 3.0 (x8) Full-height (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
Drive Bays |
|
|---|---|
| Hot-Swaps | • 16x Hot-swap 2.5" SAS / SATA HDD trays (optional Storage controller card*) |
Peripheral Drives |
|
|---|---|
| DVD-ROM | • Slim DVD-ROM drive (optional) |
Backplane |
|
|---|---|
| • 1x SAS2 / SATA backplane | |
System Cooling |
|
|---|---|
| Fans | • 4x 8cm heavy duty PWM fans |
Power Supply with Power Distributor |
|
|---|---|
| 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| AC Input | • 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Ouput | • 4 Amp @ +5V standby • 75 Amp @ +12V |
| Certification | • Platinum Certified |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
