SuperServer SYS-1028TR-TF

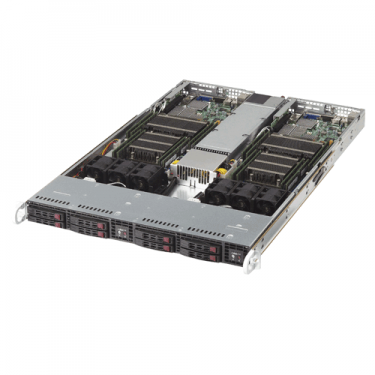

Supermicro 1028TR-TF 1U Twin Server Barebone with 1000W Titanium Power Supplies High-efficiency, 10x SATA3 (6Gbps) ports, 4x 2.5" Hot-swap Drive Bays, with Supermicro
Super X10DRT-LIBF Server Motherboard and CSE-809BTQ-1K03B 1U Rackmount Chassis.
Super X10DRT-LIBF Server Motherboard and CSE-809BTQ-1K03B 1U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-1028TR-TF | • SuperServer 1028TR-TF (Black) |
Motherboard |
|
|---|---|
| Super X10DRT-LIBF | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * • Dual Socket R3 (LGA 2011) |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | • BIOS version 2.0 or above is required |
| • Please contact WillJaya Technical support for additional information | |
System Memory |
|
|---|---|
| Memory Capacity |
• 8x 288-pin DDR4 DIMM slots • Up to 1TB† ECC 3DS LRDIMM, 256 ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes |
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| Infiniband | • Mellanox ConnectX-3 FDR Infiniband 56Gbps Controller |
| SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| IPMI |
• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Connectivity | • Intel® i350 Dual Port Gigabit Ethernet • Supports 10GBASE-T, 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Video | • ASPEED AST2400 BMC |
Input/Output |
|
|---|---|
| Serial SATA | • 10x SATA3 (6Gbps) ports |
| LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| Infiniband | • 1x external QSFP Infiniband connector |
| USB | • 2x USB 2.0 ports (rear) |
| Video | • 1x VGA port |
| Serial Port | • 1x COM port (1 header) |
| DOM | • 2x SATA DOM (Disk on Module) ports |
Management |
|
|---|---|
| Software |
• Intel® Node Manager • IPMI 2.0 • NMI • SuperDoctor® 5 • Watch Dog |
| Power Configuration |
• ACPI Power Management • Power-on mode for AC power recovery |
Chassis |
|
|---|---|
| Form Factor | • 1U Twin |
| Model | • CSE-809BTQ-1K03B |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 27.75" (705mm) |
| Gross Weight | • 43 lbs (19.5kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset Button • UID button |
| LED |
• Power Status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
Expansion Slots (per Node) |
|
|---|---|
| PCI-Express | • 1x PCI-E 3.0 x16 (in x16) slot |
Drive Bays |
|
|---|---|
| Hot Swap | • 4x 2.5" Hot-swap HDD trays |
Backplane |
|
|---|---|
| • SAS/SATA HDD Backplane | |
System Cooling (per Node) |
|
|---|---|
| Fans | • 3x 40x56mm counter-rotation PWM fan |
Power Supply |
|
|---|---|
| 1000W Titanium Level (96%) AC-DC power supply with PMBus and I2C | |
| AC Input | • 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Output | • 4 Amp @ +5V standby • 75 Amp @ +12V |
| Certification | • Titanium Level Certified |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features |
• Plug and Play (PnP) • PCI 2.3 • ACPI 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.7.1 • UEFI 2.3.1 |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
