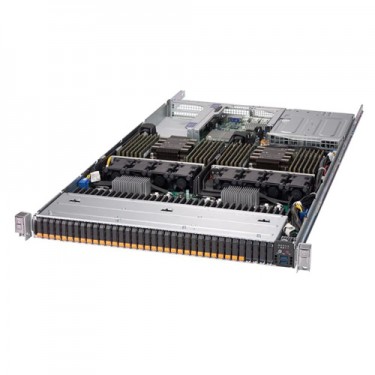

  • Supermicro SuperStorage SSG-1029P-NMR36L - Angle

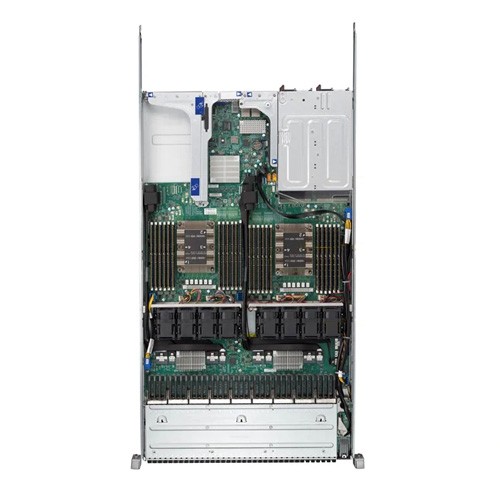

  • Supermicro SuperStorage SSG-1029P-NMR36L - Top
  • Supermicro SuperStorage SSG-1029P-NMR36L - Front
  • Supermicro SuperStorage SSG-1029P-NMR36L - Rear

Supermicro SuperStorage SSG-1029P-NMR36L

Call for price.
SKU:SSG-1029P-NMR36L

Quick Overview:

Key Features:
• Dual socket P (LGA 3647)
• Supports Intel® Xeon® Scalable Processors
• Up to 3TB of memory
• 32 Hot-swap PCI-E NF1 drive bays
• 8 Heavy duty 4cm counter-rotating fans with air shroud
• 1600W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 2 DIMMs and 4 NVMe). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro SuperStrorage SSG-1029P-NMR36L (Complete System Only)

Product SKU
SSG-1029P-NMR36L • SuperServer 1029P-NMR36L (Black)
Motherboard
  • Super X11DSF-E
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C627 chipset
SATA • SATA3 (6Gbps) with RAID 0, 1
Network Connectivity • Intel® X550 Dual Port 10GBase-T
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics • ASPEED AST2500 BMC
Input/Output
SATA • 4 SATA3 (6Gbps) ports
LAN • 2 RJ45 10GBase-T ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (front)
• 2 USB 3.0 ports (rear)
Video • 1 VGA D-Sub connector port
Serial Header • 1 COM port (header)
System BIOS
BIOS Type • AMI 32Mb SPI Flash ROM
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
• Watch Dog
Power
Configuration		 • ACPI / APM Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 1U Rackmount
Model • CSE-121NF-R1K62P
Dimension and Weight
Width • 1.7" (43mm)
Height • 17.26" (438.4mm)
Depth • 30.04" (763mm)
Gross Weight • 52 lbs (23.6kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• UID button
LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Expansion Slots
PCI-Express

• 2 PCI-E 3.0 x16 slots
• 1 PCI-E 3.0 x4 (Low profile) slot
Drive Bays
Hot-swap

• 32 Hot-swap PCI-E NF1 drive bays
• 4 SATA3 M.2 drive bays support M.2 Form Factor 22x42/60/80/110
System Cooling
Fans

• 8 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control
Power Supply
  • 1600W Redundant Power Supplies with PMBus
Total Output
Power		 • 1600W/1000W
Dimension
(W x H x L)		 • 73.5 x 40 x 203 mm
Input • 100-127Vac / 13 - 9A / 50-60Hz
• 200-240Vac / 10 - 8A / 50-60Hz
+12V • Max: 83.3A / Min: 0A (100-127Vac)
• Max: 133A / Min: 0A (200-240Vac)
12Vsb • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification • Titanium Level
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec.

• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
