Details

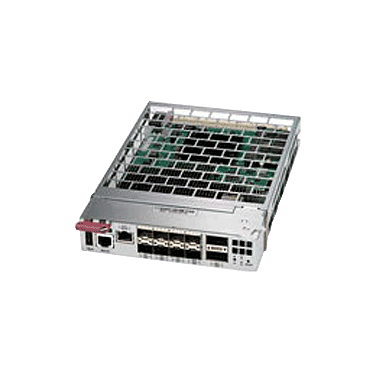

MBM-GEM-001 | |
General Specification | • Intel® FM5224 GbE Low Latency Switch • 1Gbps RJ45, 2x 40Gbps QSFP or 8x 10Gbps SFP+ uplinks • 20x 1Gbps downlinks • 1 Console port • 1 USB port |
Switching Capacity | • 442Gbps |
Physical Layer Features | • Jumbo frames up to 9KB • 40 gigabit optical/copper • 10 gigabit optical/copper • 1 gigabit RJ45 Ethernet |
Layer 2 Features | • 4K VLANS • Spanning Tree (802.1D) • Rapid Spanning Tree (802.1w) • Multiple Spanning Trees (802.1s) • IEEE 802.lQ VLANs/ port-based VLANs • IEEE 802.3ac VLAN tagging • IEEE 802.1AX LACP • IEEE 802.1AB Link Layer Discovery Protocol (LLDP) |
Advanced Layer 2 Features | • Storm control • Flow control • Port mirroring • Static MAC filtering • UDLD • Uplink Failure Detection (UFD) |
Data Center Features | • L2 Data Center Bridging • CEE v1.01 DCB for PFC/ETS |
SDN | • Open Flow 1.x |
Security Features | • Switch access password protection • RADIUS and TACACS+ Authentication • Access Control Lists • SSH, SSL Encryption |
System Management | • Industry Standard CLI • Command completion • Context-sensitive help • SNMP v1/v2/v3 • SSH • TFTP Client • Syslog • DHCP (Client) • Web-based management interface - HTTP/HTTPS • NTP • XML-RPC |
Multicast | • IGMP Snooping |
Weight | • 3.2lbs/1.5kg |
Dimension | • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4") |
