Details

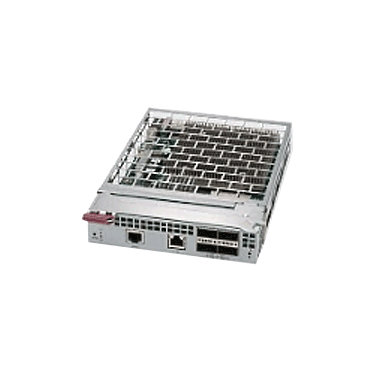

| SBM-25G-100 | |
| General Specification | • 20x 25G Ethernet downlink (backward compatible to 20x10G) • 4x 100G/40G Ethernet uplinks, each can split into 4x 25G or 4x 10G uplinks with optional fan-out cables • 1x Gigabit Ethernet uplink • 1 console port |
| Switching Capacity | • 1800Gbps |
| Physical Layer Features | • 100G/40G optical/copper QSFP28 • Gigabit Ethernet copper RJ45 |
| Layer 2 Features | • 4K VLANs • Spanning Tree Protocol (802.1D) • Rapid Spanning Tree Protocol (802.1w) • IEEE 802.lQ VLANs/ port-based VLANs • Multiple Spanning Tree Protocol (802.1s) • Jumbo frames up to 9KB • IEEE 802.1AX LAG • IEEE 802.3ac VLAN tagging • IEEE 802.1AB Link Layer Discovery Protocol (LLDP) |
| Security Features | • Switch access password protection • RADIUS and TACACS+ Authentication • Access Control Lists • SSH, SSL Encryption • DHCP Snooping |
| System Management | • Industry Standard CLI • Web-based management interface – HTTP/HTTPS • Syslog • SSH • SNMP v1/v2/v3 • NTP • Content-sensitive "Help" • Auto Command completion • TFTP Client • XML-RPC • Blade Network Manager (BNM) |
| Multicast | • IGMP Snooping |
| Weight | • 3.2lbs/1.5kg |
| Dimension | • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4") |
