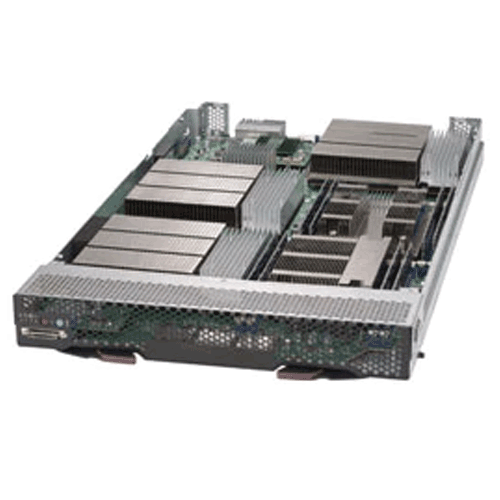

Supermicro GPU SuperBlade SBI-7127RG3

More Views

  • Supermicro GPU SuperBlade SBI-7127RG3

Supermicro GPU SuperBlade SBI-7127RG3

Call for price.
SKU:SBI-7127RG3

Quick Overview:

Key Features:
• 3x Tesla Kepler K20X/K40X SXM
• Dual Intel® Xeon® processor E5
• 1x SATA-DOM
• Up to 512GB of memory
• Intel® i350 Dual port Gigabit Ethernet
• Integrated Matrox G200eW Graphics


Details

Supermicro GPU SuperBlade SBI-7127RG3

Product SKU
SBI-7127RG3 • GPU SuperBlade SBI-7127RG3 (Black)
Motherboard
  • Super B9DRG-3M
Processor/Cache
CPU • Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
Note † BIOS version 3.0 or above is required
Cache • Up to 30MB
System Bus • QPI up to 8 GT/s
GPU Support • 3x Tesla Kepler K20X/K40X SXM
System Memory
Memory Capacity • 8x 240-pin DDR3 DIMM slots
• Supports up to 512GB DDR3 ECC Registered memory (RDIMM)
•Supports up to 64GB DDR3 ECC Unbuffered memory (UDIMM)
Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes

• 64GB, 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage

• 1.5 V and 1.35 V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset • Intel® C602 chipset
InfiniBand Support • InfiniBand or 10GbE option
IPMI • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Network Controllers

• Intel® I350 Dual port Gigabit Ethernet
• Intel® I/OAT 3 support for fast, scaleable, and reliable networking
• VMDq support for better performance of virtualization
Super I/O

• Nuvoton W83527
System BIOS
BIOS Type • 64Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features








 • Plug and Play (PnP)
• PCI 2.2
• ACPI up to 3.0
• USB Keyboard support
Dimension and Weight
Height • 11.32" (288 mm)
Width • 1.67" (42.4 mm)
Depth • 20.5" (520mm)
Gross Weight • 8.6 lbs (3.9 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• KVM button
LEDs

• Power LED
• UID / KVM LED
• Network Activity LED
• Fault LED
Connector

• SUV (Serial/USB/Video) & KVM Connector
Storage
SATA-DOM

• 1x SATA-DOM
Input / Output
KVM

• 1 Front Connector for Supermicro KVM
Operating Environment / Compliance
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)*
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)

Electromagnetic Compatibility (EMC)
United States /
Canada		 • FCC- Emissions (US) Verification
Europe
 • EN55022 - Emissions
• EN55024 - Immunity
• EN61000-3-2 - Harmonics
• EN61000-3-3 - Voltage Flicker
• CE - EMC Directive 89/336/EEC
Safety Compliance
United States /
Canada

• UL60950-1 - CSA/CUL 60950-1
Europe

• EN60950-1, CE - Low Voltage Directive 73/23/EEE
Germany

• TUV
