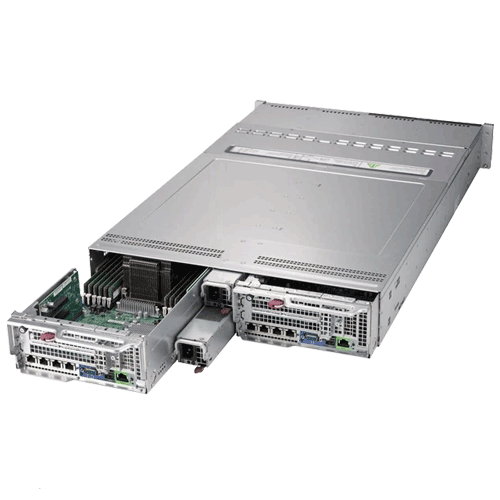

  • Supermicro BigTwin SuperServer SYS-6029BT-DNC0R - Angle
  • Supermicro BigTwin SuperServer SYS-6029BT-DNC0R - Node

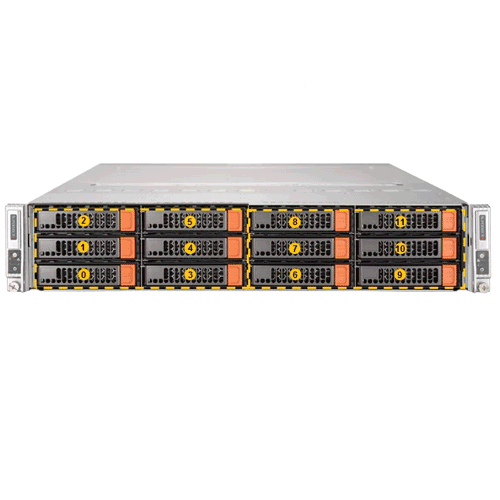

  • Supermicro BigTwin SuperServer SYS-6029BT-DNC0R - Front

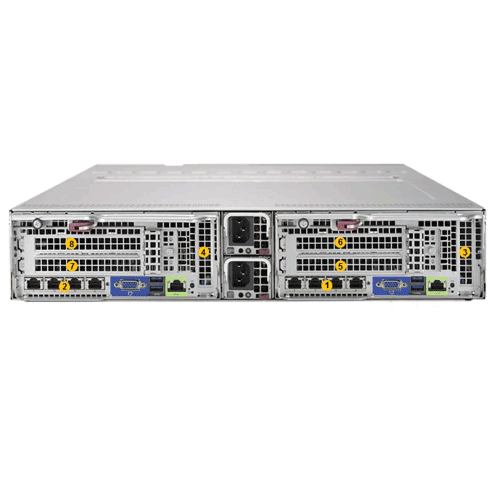

  • Supermicro BigTwin SuperServer SYS-6029BT-DNC0R - Rear

Supermicro BigTwin SuperServer SYS-6029BT-DNC0R (Complete System)

Call for price.
SKU:SYS-6029BT-DNC0R

Quick Overview:

Key Features:
• Two hot-pluggable systems (nodes) in a 2U form factor
• Intel® Xeon® Scalable Processors
• Up to 3TB of memory
• 6 SAS3 or 3 NVMe + 3 SAS3 Hot-swap 3.5" drive bays
• SAS3 support via Broadcom 3008; IT mode
• 4 Heavy duty 8cm PWM fans with air shroud
• 2200W Redundant Power Supplies Titanium Level (96%)

Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 2 DIMMs, 1 HDD/NVMe and 1 SIOM card per node). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro BigTwin SuperServer SYS-6029BT-DNC0R (Complete System Only)

Product SKU
SYS-6029BT-DNC0R • SuperServer 6029BT-DNC0R (Black)
Motherboard
  • Super X11DPT-B
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-205W*
Cores • Up to 28 Cores with Intel® HT Technology
Notes * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Will Jaya Technical Support for additional information about specialized system optimization.
System Memory
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SAS • SAS3 (12Gbps) via Broadcom 3008; IT mode
Network • Must bundle with at least one SIOM network card
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video

• ASPEED AST2500 BMC
Input/Output (per node)
LAN • 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
Video • 1 VGA port
DOM • 1 SuperDOM (Disk on Module) port
Others • M.2 and SATA DOM for boot drive only
System BIOS
BIOS Type

• AMI 32Mb SPI Flash ROM
Management
Software

• Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SSM, SPM, SUM
• SuperDoctor® 5
• Watch Dog
Power Configuration

• ACPI / APM Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
FAN • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature






 • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 2U Rackmount
Model • CSE-827BHD+-R2K22BP
Dimension and Weight
Height • 3.47" (88mm)
Width • 17.6" (447mm)
Depth • 30.11" (765mm)
Gross Weight • 114.66 lbs (52.01 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• UID button
LEDs

• Power status LED
• HDD activity LED
• Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)
PCI-Express

• 2 PCI-E 3.0 x8 slots
• 1 PCI-E 3.0 x16 slot
• 1 SIOM card support (must bundle with network card)
Drive Bays/Storage (per node)
Hot-swap

• 6 SAS3 or 3 NVMe + 3 SAS3 Hot-swap 3.5" drive bays
M.2

• 2 Internal M.2 NVMe/SATA slots
System Cooling
Fans

• 4 Heavy duty 8cm PWM fans with air shroud
Power Supply
  2200W Redundant Power Supplies with PMBus
Total Output Power • 1200W/1800W/1980W/2090/2200W
Dimension
(W x H x L)
 • 45 x 40 x 480 mm
Input • 1200W: 100-127Vac / 50-60Hz
• 1800W: 200-220Vac / 50-60Hz
• 1980W: 220-230Vac / 50-60Hz
• 2090W: 230-240Vac / 50-60Hz
• 2090W: 180-220Vac (for UL/cUL only)
• 2200W: 220-240Vac (for UL/cUL only)
• 2090W: 230-240Vdc (for CCC only)
+12V • Max: 100A / Min: 0A (100-127Vac)
• Max: 150A / Min: 0A (200-220Vac)
• Max: 165A / Min: 0A (220-230Vac)
• Max: 174.17A / Min: 0A (230-240Vac)
• Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
• Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
• Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb • Max: 2.1A / Min: 0A
Output Type • Gold Finger
Certification • Titanium Level
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
