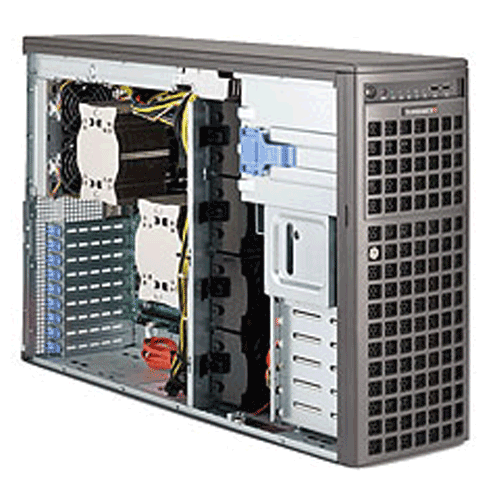

Supermicro 4U Rackmountable Tower SuperWorkstation SYS-7047AX-72RF

Call for price.

SKU:SYS-7047AX-72RF

Quick Overview:

Key Features:
• Supports Hyper-Speed
• Dual socket R (LGA 2011) supports Intel® Xeon® processor
• Up to 1TB ECC DDR3; 16x DIMM slots
• 8x 3.5" Hot-swap SAS/SATA HDD Bays; SAS2 support
via Broadcom 2208
• 2x Exhaust Fans and 4x Internal Fans
• 1280W Redundant High-efficiency Digital Power Supplies
w/ PMBus Platinum Level (95%)

Description

Details

Supermicro SuperWorkstation SYS-7047AX-72RF

Product SKU
SuperWorkstation	• SYS-7047AX-72RF (Black)

Motherboard
	• Super X9DAX-7F

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 150W TDP) • Dual Socket R (LGA 2011)
Cache	• Up to 20MB
System Bus	• QPI up to 8 GT/s
Note	† BIOS version 3.0 or above is required

System Memory
Memory Capacity	• 16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM)
Memory Type	• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 Chipset
SATA	• SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1
SAS	• SAS2 from Broadcom 2208 • RAID 0,1,5,6,10,50,60 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC
Network Controllers	• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Audio	• RealTek ALC889 7.1 High Definition Audio with S/PDIF header
Graphics	• Matrox G200eW

Input/Output
SATA	• 2x SATA 3.0 ports (6Gbps) • 8x SATA 2.0 ports (3Gbps)
SAS	• 8x SAS2 ports (6Gbps)
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 (2 rear) • 6x USB 2.0 (2 front + 4 rear)
Audio	• Line-in / Line-out / Microphone Ports
Video	• 1x VGA port
Serial Port/Header	• 2x Fast UART 16550 ports
IEEE 1394a	• 2x Headers

Expansion Slots
PCI-Express	• 2 PCI-E 3.0 x16 slots • 3 PCI-E 3.0 x8 slots • 1 UIO PCI-E 3.0 x8 (for SMC UIO) or • 1 PCI-E 2.0 x4 (in x8) slot

System BIOS
BIOS Type	• BIOS Type ##128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Chassis
Form Factor	• 4U Rackmountable / Tower • Optional Rackmount Kit
Model	• CSE-747TG-R1K28B-SQ

Dimension and Weight
Height	• 18.2" (462mm)
Width	• 7.0" (178mm)
Depth	• 26.5" (673mm)
Gross Weight	• 71 lbs (32.2 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED
Ports	• 2x front USB 2.0 Ports

Drive Bays
Hot-swap	• 2x Exhaust Fans and 4x Internal Fans
Peripheral Bay(s) [90o Rotatable]	• 2x Optional Active heatsink with optimal fan speed control (SNK-P2050AP4)

SAS/SATA Backplane
	• SAS / SATA Hard Drive Backplane w/AMI MG9072

System Cooling
Fans	• 2x Exhaust Fans and 4x Internal Fans
Heatsink	• 2x Optional Active heatsink with optimal fan speed control (SNK-P2050AP4)

Power Supply
	1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input	• 1000W Output @ 100-140V, 8-12A, 50-60Hz • 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output	• 1000W: +12V/83A; +5Vsb/4A • 1280W: +12V/106.7A, +5Vsb/4A
Certification	• Platinum Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. • 6-Phase-switching voltage regulator
FAN	• Total of three fan headers supporting up to 8 fans • Three 4-pin fan headers • 3x fans with tachometer status monitoring • Support 3-pin fans (w/o speed control) • Low noise fan speed control (4-pin fan only)
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI
Other Features	• Chassis intrusion detection • Chassis intrusion detection ##Chassis intrusion header

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
