Details
Product SKU
| |
---|---|
SSG-6048R-E1CR24H | • SuperServer 6048R-E1CR24H (Black) |

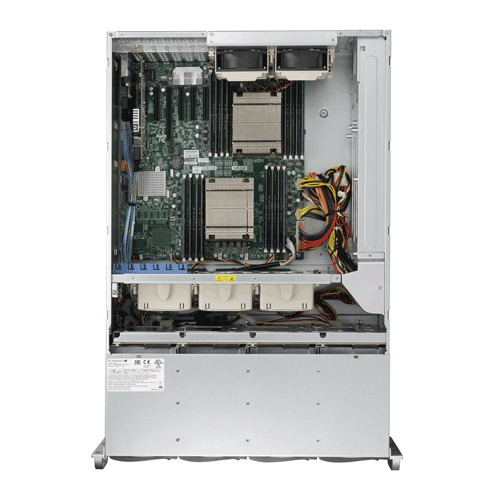

Motherboard
| |
---|---|
• Super X10DRH-iT |
Processor/Cache
|
|
---|---|
CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011) |
Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
System Bus | • QPI up to 9.6 GT/s |
† BIOS version 2.0 or above is required | |
Note | Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization |
System Memory
| |
---|---|
Memory Capacity | • 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512 ECC RDIMM |
Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
DIMM Sizes | • RDIMM: 32GB, 16GB, 8GB, 4GB |
Memory Voltage | • 1.2 V |
Error Detection |
• Corrects single-bit errors |
On-Board Devices
| Chipset | • Intel® C612 chipset |
---|---|
SAS | • SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID 0,1,5,6,10,50,60 |
SATA | • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
Network Controllers | • Intel® X540 Dual Port 10GbE |
Graphics |
• ASPEED AST2400 BMC |

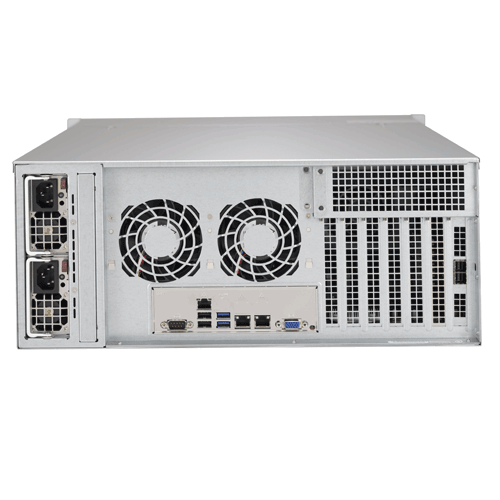

Input/Output
| LAN | • 2 RJ45 10GBase-T LAN ports • 1 RJ45 Dedicated IPMI LAN port |
USB | • 2 USB 3.0 ports (rear) • 2 USB 2.0 ports (rear) • 1 Type A |
VGA | • 1 VGA port |
---|---|
Serial Port/Header |
• 1 Fast UART 16550 port / 1 Header |

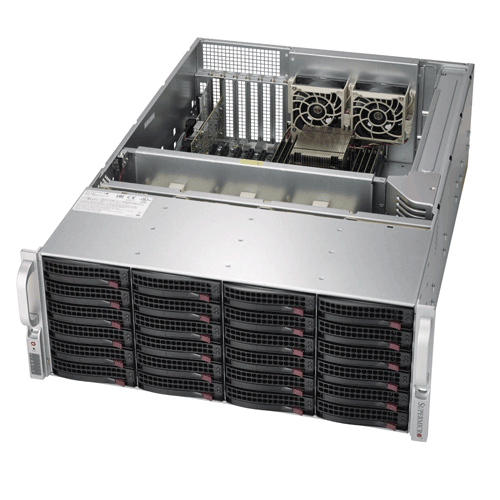

Chassis
| |
---|---|
Form Factor | • 4U Rackmount |
Model | • CSE-846BE1C-R920B |
Dimension and Weight
| |
---|---|
Width | • 17.2" (437mm) |
Height | • 7" (178mm) |
Depth | • 26.5" (673mm) |
Gross Weight | • 55 lbs (24.9 kg) |
Available Colors | • Black |

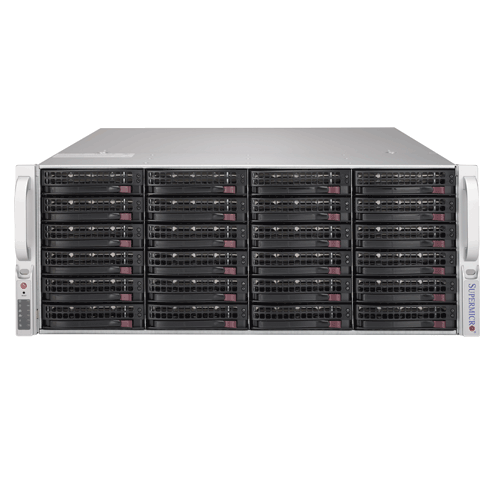

Front Panel
| |
---|---|
Buttons |
• Power On/Off button |
LEDs | •
Power status LED • Hard drive activity LED • 2 Network activity LEDs • System Overheat LED • Power fail LED |
Expansion Slots
| |
---|---|
PCI-Express |
• 1 PCI-E 3.0 x16 slot |
Drive Bays
| |
---|---|
Hot-swap |
• 24x 3.5" Hot-swap SAS3/SATA3 drive bays |
Optional | • 2x 2.5" Hot-swap HDD bays (rear) |
Backplane
| |
---|---|
• SAS3/SATA3 single expander per backplane |
System Cooling
| |
---|---|
Fans |
• 2x 80mm hot-swap rear exhaust cooling fans |
Power Supply
| |
---|---|
920W Redundant High-Efficiency Power Supplies w/ Power Distributor, PMBus 1.2, I2C, and PFC | |
AC Input | • 100-240 V, 50-60 Hz, 11-4.5 Amp |
DC Output |
• +5V standby: 4A • +12V: 75A |
With Power Distributor |
• +5V: 45A • +3.3V: 24A • -12V: 0.6A |
Certification | • Platinum Certified |
System BIOS
| |
---|---|
BIOS Type |
• ##128Mb SPI Flash EEPROM with AMI BIOS |
BIOS Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment
| |
---|---|
RoHS |
• RoHS Compliant |
Environmental Spec. | • Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
