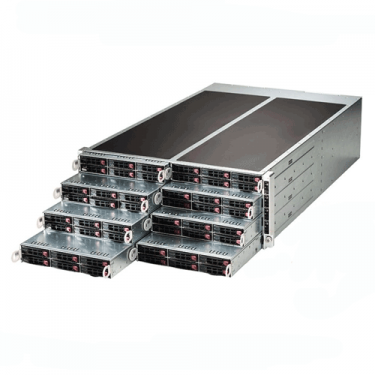

Supermicro 4U Rackmount SuperServer SYS-F618R2-RT+ Angle

More Views

Supermicro 4U Rackmount SuperServer SYS-F618R2-RT+

Description

Details

Supermicro SuperServer SYS-F618R2-RT+

Product SKU
SYS-F618R2-RT+	• SuperServer F618R2-RT+ (Black)

Motherboard
	• Super X10DRFR

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011)
Cores/Cache	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011) Cores / Cache Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
	† BIOS version 2.0 or above is required
Note	Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIM Sizes	• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Intel® i350-AM2 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics	• ASPEED AST2400 BMC

Input/Output (per node)
Serial ATA	• 10x SATA3 (6Gbps) ports
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports
VGA	• 1x VGA port

Management
Software	• SuperDoctor® 5 • SuperDoctor® 5 Watch Dog • NMI • IPMI 2.0 • SUM and SSM
Power Configuration	• ACPI / APM Power Management • Power-on mode for AC power recovery

Chassis
Form Factor	• 4U Rackmount
Model	• CSE-F418BC-R1K62BP

Dimension and Weight
Width	• 7" (178mm)
Height	• 17.2" (437mm)
Depth	• 26" (660mm)
Gross Weight	• 85 lbs (38.56 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • UID button
LEDs	• Power status LED • Hard drive activity LED • 2x Network activity LEDs • Information LED (UID, Fan failure, Overheat)

Expansion Slots (per node)
PCI-Express	• 1x PCI-E 3.0 x16 Low-profile • Express 1x PCI-E 3.0 x16 Low-profile 1x PCI-E 3.0 x8 (Micro LP) • MicroLP Adapter Matrix (Networking options)

Drive Bays (per node)
Hot-swap	• 6x 2.5" Hot-swap SATA3 HDD trays

Backplane
	• 1x SAS/SATA backplane

System Cooling (per node)
Fans	• 3x 4cm 14k RPM middle fans

Power Supply
	1620W high-efficiency redundant power supply w/ PMBus
AC Input	• 1000W Output @ 100-120V, 12-10A, 50-60Hz • 1200W Output @ 120-140V, 12-10A, 50-60Hz • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output	• 1000W: +12V/84A; +5Vsb/4A • 1200W: +12V/100A; +5Vsb/4A • 1620W: +12V/150A; +5Vsb/4A
Certificaiton	• Platinum Certified

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
