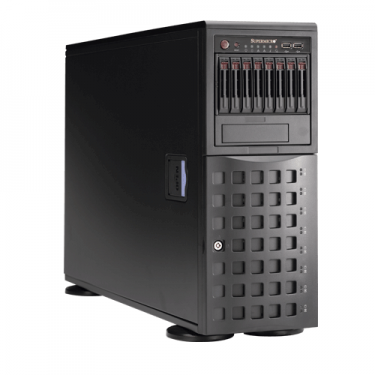

Supermicro 4U Rackmount SuperServer SYS-7048R-C1RT4+

Call for price.

SKU:SYS-7048R-C1RT4+

Quick Overview:

Key Features:
• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor
• Up to 3TB† ECC 3DS LRDIMM; 24x DIMM
• Quad LAN w/ Intel® X540 10GBase-T
• I/O ports: 2x SuperDOM, 1x VGA, 2x COM,
2x USB 3.0, 4x USB 2.0
• 8x 3.5" Hot-swap SATA3 HDD Bays; 8x 2.5" Hot-swap
SAS3 drives in mobile rack; 1x 5.25" drive bay
• 1000W Redundant Power Supplies Titanium Level (96%)

Description

Details

Supermicro SuperServer SYS-7048R-C1RT4+

Product SKU
SYS-7048R-C1RT4+	• SuperServer 7048R-C1RT4+ (Black)

Motherboard
	• Super X10DRC-T4+

Processor/Cache
CPU	• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) • Dual Socket R3 (LGA 2011)
Cores/Cache	• Up to 22 Cores† / Up to 55MB† Cache
System Bus	• QPI up to 9.6 GT/s
	† BIOS version 2.0 or above is required
Notes	Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity	• 24x 288-pin DDR4 DIMM slots • Up to 3TB† ECC 3DS LRDIMM, 768 ECC RDIMM
Memory Type	• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	• RDIMM: 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors

On-Board Devices
Chipset	• Intel® C612 chipset
SATA	• SATA3 (6Gbps); RAID 0, 1, 5, 10
SAS	• Broadcom 3108 SAS3 (12Gbps) controller; HW RAID 0, 1, 5, 6, 10, 50, 60
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Intel® X540 Quad Port 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
Video	• ASPEED AST2400 BMC

Input/Output
SATA	• 10x SATA3 (6Gbps) ports
SAS	• 8x SAS3 (12Gbps) ports • SuperCap option support
LAN	• 4x RJ45 10GBase-T LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports (rear) • 4x USB 2.0 ports (2 rear, 2 front) • 1x USB Type A
Video	• 1x VGA port
Serial Port/Header	• 1x COM/Serial
DOM	• 2x SuperDOM (Disk on Module) ports

Expansion Slots
PCI-Express	• 2x PCI-E 3.0 x16 (Full-height, Full-length) • 3x PCI-E 3.0 x8 (Full-height, Full-length) • 1x PCI-E 2.0 x4 (in x8)

System BIOS
BIOS Type	• 128Mb SPI Flash EEPROM with UEFI BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Chassis
Form Factor	• 4U Rackmountable / Tower • Optional Rackmount Kit
Model	• CSE-745TQ-R1K03B

Dimension and Weight
Height	• 17.2" (437mm)
Width	• 7" (178mm)
Depth	• 25.5" (648mm)
Gross Weight	• 74.5 lbs (33.8 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LEDX • Power Fail LED
Ports	• 2x USB Ports

Drive Bays
Hot-swap	• 8x 3.5" Hot-swap SATA3 drive trays • 8x 2.5" Hot-swap SAS3 drives in mobile rack
Peripheral Bay	• 1x 5.25" drive bay (optional devices)

SAS/SATA Backplane
	• SAS via backplane (BPN-SAS3-I28A) in Mobile rack • SATA via chassis HDD Backplane CSE-SAS-743TQ-O-P

System Cooling
Fans	• 3x 8cm Hot-swap redundant PWM Cooling Fans • 2x 8cm Hot-swap Rear Exhaust PWM Fans & air shroud

Power Supply (76mm Width)
	1000W Redundant Power Supplies with PMBus
Total Output Power	• 800W/1000W
Dimension (W x H x L)	• 76 x 40 x 336 mm
Input	• 100-127Vac / 12-9A / 50-60Hz • 200-240Vac / 7.2-6A / 50-60Hz • 200-240Vdc / 7.2-6A (for CCC only)
+12V	• Max: 66.7A / Min. 0A (100-127Vac) • Max: 83A / Min. 0A (200-240Vac) • Max: 83A / Min. 0A (200-240Vdc)
5Vsb	• Max: 4A / Min: 0A
Output Type	• 19 Pairs Gold Finger Connector
Certification	• Titanium Level

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages
FAN	• Total of five fan headers supporting up to 5 fans • 5x fans with tachometer status monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • CPU thermal trip support ##Thermal Control for 5x fan connectors • Thermal Monitor 2 (TM2) support • PECI
LED	• System info. LED: UID indicator, fan fail/System Overheat • Suspend static indicator LED • UID/Remote LED
Other Features	• Chassis intrusion detection • Chassis intrusion header

Operating Environment
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
