Details
Product SKU
| |
---|---|

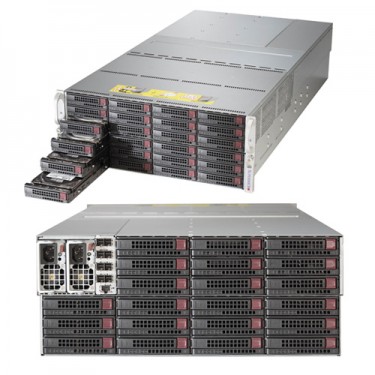

CSE-847DE2C-R2K04JBOD | • SuperChassis 847DE2C-R2K04JBOD |
Form Factor
| |
---|---|
• 4U Double-Density SAS3 JBOD storage chassis |
Dimensions
| |
---|---|
Height | • 7" (178 mm) |
Width | • 17.2" (437 mm) |
Depth | • 35" (889 mm) |
Gross Weight | • 118 lbs (53.52 kg) |
Available Color | • Black |
Drive Bays
| • 90 x 3.5" hot-swap SAS/SATA drive bay with SES3 • 90x 3.5" HDDs in 45x Hot-swap drive bays (2x HDD per bay) SAS or enterprise SATA HDD only recommended |
---|
Backplane
| • 48-port SC847D SAS3 12Gbps front expander board (cascade type configuration) • 48-port 4U SC847D SAS2/SAS3 system/JBOD front midplane, support up to 48x 3.5-inch SAS2/SAS3/SATA3 HDD • 42-port 4U SC847D SAS2/SAS3 JBOD rear midplane, support up to 42x 3.5-inch SAS2/SAS3/SATA3 HDD |
---|
Front Panel
| Buttons | • Power On/Off button • System Reset Button • Unit Identification (UID) button |
LEDs
|
• 1 Network Activity LEDs |
---|
System Cooling
| |
---|---|
Fans | • 7 x 92mm hot-swap fan(s) |
System Monitoring
| |
---|---|
• IPMI |
Operating Environment (System)
| |
---|---|
Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
Power Supply
| |
---|---|
• 1U 2000W Titanium Redundant Power Supply W/PMbus |
|
Power Efficiency | • 96% |
Total Output Power and Input |
• 1000W with Input 100 - 127Vac |
AC Input Frequency |
• 50-60Hz |
Dimensions (L x W x H) |
• 336 x 76 x 40 mm |
Output Type | • Backplanes (gold finger) |
+12V | • Max: 83.3A (100Vac - 127Vac) |
+5Vsb | • Max: 1A / Min: 0A |
Power Distributor | • PDB-PT847-B3824 |
Certification | • Titanium Certified |
Regulatory (Power Supply)
| |
---|---|
Power Supply Safety / EMC |
• BSMI |
