Details
Product SKU
| |
---|---|

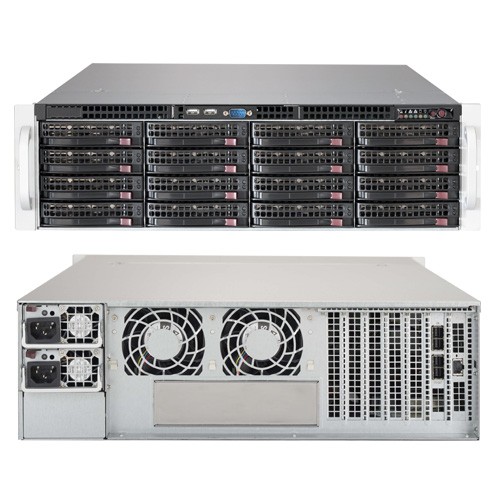

CSE-836BE1C-R1K03JBOD | • SuperChassis 836BE1C-R1K03JBOD |
Form Factor
| |
---|---|
• 3U JBOD storage chassis |
Dimensions
| |
---|---|
Height | • 5.2" (132 mm) |
Width | • 17.2" (437 mm) |
Depth | • 25.5" (647 mm) |
Gross Weight | • 80 lbs (36.29 kg) |
Available Color | • Black |
Drive Bays
| • 16 x 3.5" hot-swap HDD bays for JBOD solution |
---|
Qualified SAS Controllers
| • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller |
---|
Backplane
| • 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD |
---|
Front Panel
| Buttons | • Power On/Off button • System Reset Button • Unit Identification (UID) button |
LEDs |
• 1 Network Activity LEDs |
---|
System Cooling
| |
---|---|
Fans | • 3 x 8cm hot-swap redundant PWM cooling fan(s) • 2 x 8cm hot-swap exhaust fan(s) & air shroud |
System Monitoring
| |
---|---|
• IPMI |
Operating Environment (System)
| |
---|---|
Operating Temperature Range |
• 5°C - 35°C (41°F - 95°F) |
Non-Operating Temperature Range |
• -40°C - 70°C (-40°F - 158°F) |
Operating Relative Humidity Range |
• 8% - 90% (non-condensing) |
Non-Operating Relative Humidity Range |
• 5% - 95% (non-condensing) |
Power Supply
| |
---|---|
• 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus |
|
Power Efficiency | • 96% |
Total Output Power and Input |
• 800W with Input 100 - 127Vac |
AC Input Frequency |
• 50-60Hz |
Dimensions (L x W x H) |
• 336 x 76 x 40 mm |
Output Type | • Backplanes (gold finger) |
+12V | • Max: 66.7A (100Vac - 127Vac) |
+5Vsb | • Max: 4A / Min: 0A |
Power Distributor | • PDB-PT826-8824 |
Certification | • Titanium Certified |
Regulatory (Power Supply)
| |
---|---|
Power Supply Safety / EMC |
• BSMI |
