Details

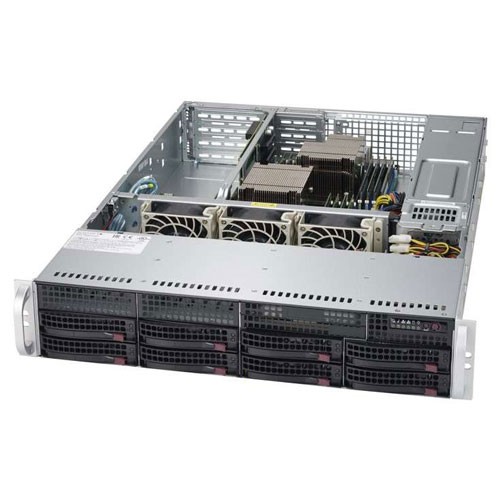

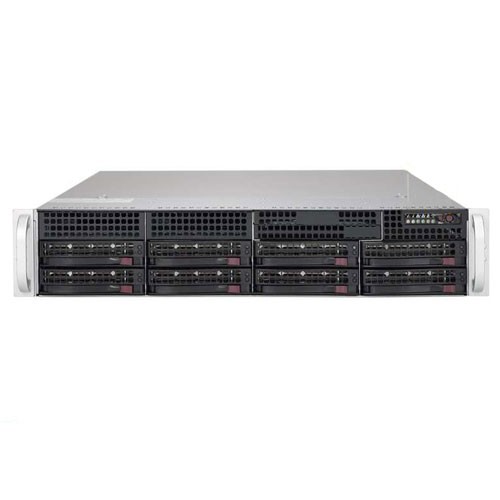

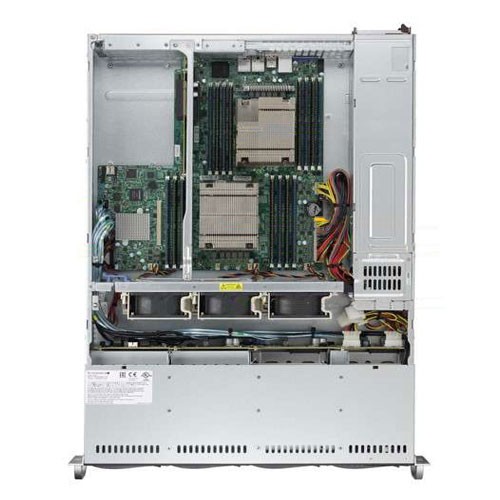

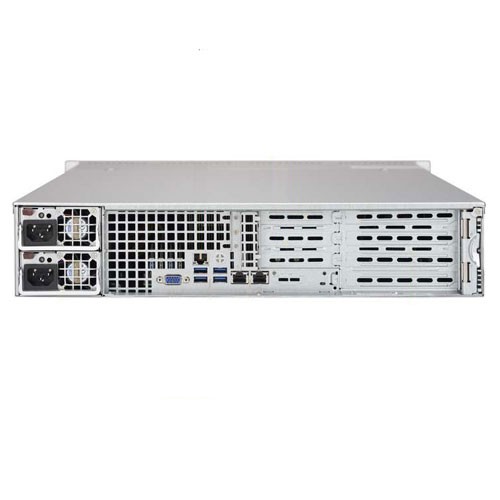

X10DRW-i Server Motherboard and CSE-825TQ-R740WB 2U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-6028R-WTR | • SuperServer 6028R-WTR (Black) |
Motherboard |
|
|---|---|
| Super X10DRW-i | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) * |
| Cores/Cache | • Up to 22 Cores† / Up to 55MB† Cache |
| System Bus | • QPI up to 9.6 GT/s |
| Note | • † BIOS version 2.0 or above is required |
* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
|
System Memory |
|
|---|---|
| Memory Capacity |
• 16x 288-pin DDR4 DIMM slots • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type | • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes |
• RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB • LRDIMM: 64GB, 32GB • 3DS LRDIMM: 128GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C612 chipset |
| SATA | • SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Connectivity | • Intel® i350 Dual Port Gigabit Ethernet Controller |
| Graphics | • ASPEED AST2400 BMC |
Input/Output |
|
|---|---|
| SAS/SATA | • Customizable storage |
| LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 6x USB 3.0 ports (4 rear + 2 via header) |
| Video | • 1x VGA port |
| Serial Port/Header | • 1x Fast UART 16550 port / 1 Header |
| DOM | • 2x SuperDOM (Disk on Module) ports
|
Chassis |
|
|---|---|
| Form Factor | • 2U Rackmount |
| Model | • CSE-825TQ-R740WB |
Dimension and Weight |
|
|---|---|
| Height | • 3.5" (89mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.5" (648mm) |
| Gross Weight | • 62 lbs (28.1 kg) |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button • UID button |
| LED | • Power status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED |
Expansion Slot |
|
|---|---|
| PCI-Express | • 4x PCI-E 3.0 x8 slots (2x Full-height Full-length, 2x Full-height Half-length) • 2x PCI-E 3.0 slots (Low-profile) • UIO AOC Compatibility Matrix |
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
|
Drive Bays |
|
|---|---|
| Hot-Swaps | • 8x 3.5" Hot-swap SAS / SATA HDD trays (ready for PCI-E storage controller card) |
Backplane |
|
|---|---|
| • 1x 2U SAS backplane w/ Enclosure Management (SAS support requires optional SAS controller) | |
Peripheral Drives |
|
|---|---|
| DVD-ROM | • Slim DVD-ROM drive (optional) |
System Cooling |
|
|---|---|
| Fans | • 3x 80mm 7,000 RPM 4-pin PWM fans |
Power Supply |
|
|---|---|
| 740W (1+1) Redundant high-efficiency power supply with PMBus | |
| AC Input | • 100-240 V, 50-60 Hz, 9-3.5 Amp |
| DC Output | • 4 Amp @ +5V standby • 61.7 Amp @ +12V |
| Certification | • Platinum Certified |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • BIOS resuce hot keys • USB Keyboard support • SMBIOS 2.3 • UEFI |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
