Details

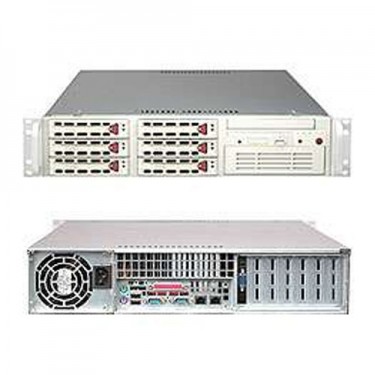

Super X6DH3-G2 mother board and SC823T-550LP Chassis.
Product SKU |
|
---|---|
SYS-6024H-32 | • SuperServer 6024H-32 (Beige) |
SYS-6024H-32B | • SuperServer 6024H-32B (Black) |
Motherboard |
|
---|---|
Super X6DH3-G2 |
Processor/Cache |
|
---|---|
CPU | • Dual 604-pin FC-mPGA4 Sockets |
System Bus | • 800 MHz system bus |
OS Software | • Supports 64-bit Operating Systems • Supports 32-bit Operating Systems |
System Memory |
|
---|---|
Memory Capacity |
• Eight 240-pin DIMM sockets • Supports up to 16 GB DDR2 400MHz memory • Dual channel memory bus • Memory must be populated in pairs • Single-rank modules are recommended for 6+ DIMM support |
Memory Type | • DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Sizes | • 2GB |
Memory Voltage | • 1.8V only |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 Single Device Data Correction (SDDC) |
On-Board Devices |
|
---|---|
Chipset | • Intel® E7520 chipset • MCH + 6300ESB + PXH/V + 82541PI |
SAS | • Adaptec AIC9410: Adaptec 8-port SAS Controller • RAID 0, 1, 10, JBOD support |
SATA | • 6300ESB 2-port SATA Controller |
SAS ZCR | • RAID 0, 1, 5, 10, and JBOD support |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
Network Controllers | • Dual Intel® 82541PI Single-Port Gigabit Controller |
Graphics | • ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
Super I/O | • Winbond 83627HF chip |
Input/Output |
|
---|---|
Serial ATA / SAS | • Two SAS connectors support up to 8 SAS or SATA drives • Two SATA connectors support 2 SATA drives |
IDE | • Dual EIDE channels support up to four UDMA IDE devices • Supports ATA/100 |
Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support |
LAN | • 2x RJ45 LAN port |
USB | • 2x USB rear ports • 2x USB internal headers • USB 2.0 Compliant / 1.1 Compliant |
VGA | • 1x VGA Port |
Keyboard / Mouse | • PS/2 keyboard and mouse ports |
Serial Port | • 1 Fast UART 16550 serial ports
|
Chassis |
|
---|---|
Form Factor | • 2U Rackmount |
Model | • SC823T-550LP |
Dimension and Weight |
|
---|---|
Height | • 3.5" (89mm) |
Width | • 16.8" (426mm) |
Depth | • 25.6" (650mm) |
Weight | • 51 lbs (23.1kg) |
Available Color | • Beige,Black |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset button |
LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED |
Ports | • 2x USB Ports (optional) |
Expansion Slot |
|
---|---|
PCI-Express | • 2 (x8) PCI-e slots |
PCI-X | • 1x 64-bit 133MHz PCI-X (3.3V) slot • 2x 64-bit 100MHz PCI-X (3.3V) slots |
PCI | • 1x PCI slot • (Low-profile Add-on Cards Only) |
Drive Bays |
|
---|---|
Hot-swap | • 6x 3.5"SATA Hot-swap drive trays |
Peripheral Bay(s) | • 1x 5.25" full-height peripheral bay |
Peripheral Drives |
|
---|---|
Floppy | • 3.5" 1.44MB Floppy Drive |
CD-Rom | • TEAC Slim 24x CD-ROM drive |
Backplane |
|
---|---|
• 1x 2U SAS Backplane (without SESII) |
System Cooling |
|
---|---|
Fans | • 4x 80mm 6300 RPM fans Cooling redundancy with fan shroud |
Power Supply |
|
---|---|
550W power supply with PFC [ 24-pin, (8-pin, 4-pin)=12V ] | |
AC Voltage | • 100 - 240V, 47-63Hz, 9/3.5 Amp |
DC Output | • +5V & +3.3V : Max = 50A |
+5V | • 35.0 Amp |
+5V standby | • 2.0 Amp |
-5V | • 0.8 Amp |
+12V | • 42.0 Amp |
-12V | • 1.0 Amp |
+3.3V | • 30.0 Amp |
System BIOS |
|
---|---|
Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
Bios Features | • Plug and Play (PnP) • SMBIOS 2.3 • DMI 2.1 • ACPI 1.0 • Fan Speed Control |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores, CPU0, CPU1, +3.3V, +5V, ±12V |
FAN | • Total of four 4-pin fan headers and four 3-pin fan headers • 8x fans with tachometer status monitoring • Low noise fan speed control |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Monitor 2 (TM2) support |
Other Features | • Chassis intrusion detection
|
