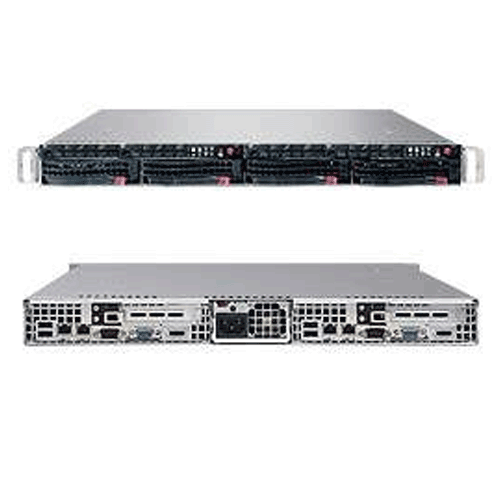

Supermicro SYS-5015TB-10GB 1U Rackmount with Intel® X48 chipset, 2x 3.5" SATA Hot-swap drive bays, using Super X7SBT-10G + Super X7SBT-10G and CSE-808LT-780B
Rackmount Chassis
Product SKU |
|
---|---|
SYS-5015TB-10GB | • SuperServer 5015TB-10GB (Black) |
Motherboard |
|
---|---|
Super X7SBT-10G + Super X7SBT-10G |
Processor/Cache |
|
---|---|
CPU | • Single LGA775 ZIF Socket |
System Bus | • 1600 / 1333 / 1066 / 800 MHz system bus |
System Memory (per node) |
|
---|---|
Memory Capacity |
• Four 240-pin DIMM sockets • Supports up to 8 GB of unbuffered, non-ECC DDR3 1333/1066/800MHz memory (Dual Channel) or up to 4 GB Non-ECC 1600MHz XMP DDR3 memory |
Memory Type | • DDR3 1333/1066/800MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs or Non-ECC 1600MHz XMP DDR3 memory |
DIMM Sizes | • 256 MB, 512 MB, 1 GB, 2 GB |
Memory Voltage | • Dynamic (1.5V to 1.9V) |
On-Board Devices (per node) |
|
---|---|
Chipset | • Intel X48 chipset |
Serial ATA | • Intel® ICH9R SATA controller built-in (3 Gbps) • RAID 0, 1, 5, 10 (Windows) • RAID 0, 1, 10 (Linux) |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN & optional KVM-over-LAN support • SIMSO Slot - Supermicro Intelligement Management • (Optional: AOC-SIMSO-HTC, AOC-SIMSO+) • NOTE: AOC-SIMSO+ must use Dedicated LAN for KVM-over-LAN function |
Network Controllers | • Intel® 82598EB 10 Gigabit Ethernet Controller with CX4 interface • Intel® 82573V & 82573L Gigabit Ethernet Controllers • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
VGA | • On-board XGI Volari Z9S (32MB) graphics |
Super I/O | • Winbond 83627DHG chip |
Clock Generator | • IDT CV152 |
Input/Output (per node) |
|
---|---|
Serial ATA | • Four Serial ATA ports (3 Gbps performance) • Four SATA hard drives supported |
LAN | • 2x RJ45 LAN ports |
USB | • Up to 8x USB 2.0 / 1.1 compliant ports • 2 rear ports + 2 internal headers + 2 Type A ports |
VGA | • 1x VGA port |
Serial Port / Header | • 1x Fast UART 16550 serial port |
System Bios (per node) |
|
---|---|
Bios Type | • 16Mb Flash EEPROM with Phoenix BIOS |
Bios Features |
• Plug and Play (PnP)
|
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • CSE-808LT-780B |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 27.75" (705mm) |
Weight | • 40 lbs (18.1kg) |
Available Color | • Black |
Front Panel (per node) |
|
---|---|
Buttons | • Power On/Off button |
LEDs | • Power Status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED |
Expansion Slot (per node) |
|
---|---|
PCI-Express | • 1 (x16) PCI-e 2.0 slot (Low Profile) |
Drive Bays (per node) |
|
---|---|
Hot-swap | • 2x 3.5" SATA Hot-swap drive bays |
SATA Backplane (per node) |
|
---|---|
• 1U SATA Backplane |
System Cooling |
|
---|---|
Fans | • 6x Cooling Fans |
Power Supply |
|
---|---|
780W AC to DC power supply w/ PFC | |
AC Input | • 100-240V, 60-50Hz, 9.5-3.5Amp |
+5V stand by | • 4 Amp |
+12V | • 65 Amp @ 180-240Vac • 58 Amp @ 100-140Vac |
Management |
|
---|---|
Software | • SuperDoctor® III • Watch Dog • NMI |
Power Configuration | • ACPI / ACPM Power Management • Main Switch Override Mechanism • Keyboard Wakeup from Soft-Off • CPU Fan auto-off in sleep mode • Power-on mode control for AC power loss recovery |
PC Health Monitoring (per node) |
|
---|---|
CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages. • CPU Core 5-Phase-switching voltage regulator with auto-sense from 0.3750V-1.6000V |
FAN | • Total of three 4-pin fan headers • 3x fans with tachometer monitoring • Status monitor with firmware / software speed control • Status monitor for on/off control • Low noise fan speed control |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x Fan Connectors • PSU I2C temperature sensing logic • Thermal Monitor (TM2) Support • PECI |
LED | • CPU / System Overheat LED • Suspend-state indicator LED |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant 5/6, Server Exemption |
Environmental Spec. | • Operating Temperature:
10°C to 40°C (50°F to 104°F) |
