Details

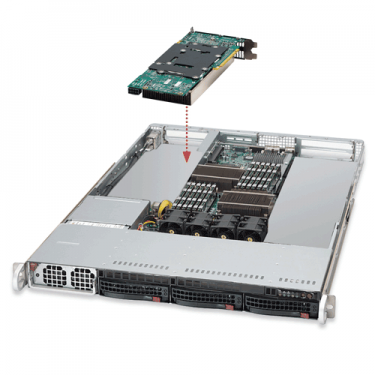

Supermicro SYS-6016T-GTF 1U Rackmount with 1400W Gold-level High-efficiency Power Supply, Intel® 5500 (Tylersburg) chipset support 3x 3.5" Hot-swap drive bays,using
Supermicro Super X8DTT-FServer Motherboard and CSE-818G-1400B 1U Rackmount Chassis
Product SKU |
|
---|---|
SYS-6016T-GTF | • SuperServer 6016T-GTF (Black) |
Motherboard |
|
---|---|
Super X8DTT-F |
Processor/Cache |
|
---|---|
CPU | • Dual 1366-pin LGA Sockets |
QPI | • up to 6.4 GT/s |
System Memory |
|
---|---|
Memory Capacity |
• 12x 240-pin DIMM slots • Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory • Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory • Memory Mirroring supported |
Memory Type | • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
DIMM Sizes | • 1GB, 2GB, 4GB , 8GB , 16GB |
Memory Voltage | • 1.5 V / 1.35V |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
On-Board Devices |
|
---|---|
Chipset | • Intel® 5500 (Tylersburg) chipset |
SATA | • Intel ICH10R SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support (Windows) • RAID 0, 1, 10 support (Linux) |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
Network Controllers | • Intel® 82576 Dual-Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • Intel® I/OAT 3 support for fast, scaleable, and reliable networking • VMDq support for better performance of virtualization • 1x Realtek RTL8201N PHY (dedicated IPMI) |
Graphics | • Matrox G200eW 8 MB DDR2 |
Super I/O | • Winbond W83527HG chip |
Clock Generator | • 932S421 chip |
Input/Output |
|
---|---|
Serial ATA | • Six Serial ATA ports • Six SATA hard drives supported |
LAN | • 2x RJ45 LAN ports • 1x RJ45 Dedicated IPMI LAN port |
USB | • 2 rear + 1 header (2 Ports) |
VGA | • 1x VGA Port |
Serial Port | • 1 Fast UART 16550 serial port |
System Bios |
|
---|---|
Bios Type | • 32Mb SPI Flash EEPROM with AMI® BIOS |
Bios Features | • Plug and Play (PnP)
|
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • CSE-818G-1400B |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 17.2" (437mm) |
Depth | • 28.2" (716mm) |
Weight | • 38 lbs (17.2 kg) |
Available Color | • Black |
Front Panel |
|
---|---|
Buttons | • Power On/Off button |
LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED |
Expansion Slots |
|
---|---|
PCI-Express | • 1 (x16) PCI-E (FHFL) |
Drive Bays |
|
---|---|
Hot-Swap | • 3x 3.5" Hot-swap drive bays |
Backplane |
|
---|---|
• SAS/SATA HDD Backplane (SAS support requires optional SAS controller) |
System Cooling |
|
---|---|
Fans | • 4x 4cm heavy-duty counter-rotating PWM fans with optimal fan speed control |
Power Supply |
|
---|---|
1400W high-efficiency power supply with PMBus | |
AC Input | • 1200W: 100 - 140V, 50 - 60Hz, 10.5 - 14.7 Amp • 1400W: 180 - 240V, 50 - 60Hz, 7.2 - 9.5 Amp |
DC Output +5V standby | • 4 Amp |
DC Output +12V | • 100 Amp @ 100-140V • 117 Amp @ 180-240V |
With Power Distributor |
• +5V: 14 Amp |
Certification | • Gold Certified |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. • CPU Core 6-Phase-switching voltage regulator |
FAN | • Total of four 4-pin PWM fans • 4x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 4x Fan Connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI |
LED | • Power Fail / Overheat LED • Suspend-state Indicator LED • UID LED |
Other Features | • SDDC Support |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. | • Operating Temperature:
5°C to 35°C (41°F to 95°F) |
