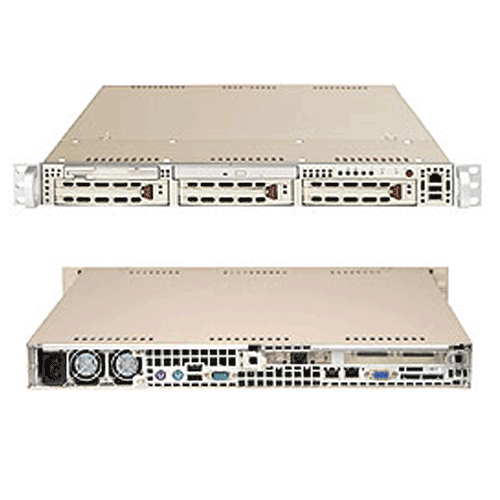

Supermicro SYS-6012P-6 / SYS-6012P-6B 1U Rackmount with 400W Power Supply,Intel® E7500 chipset, 3 x 3.5" hot-swap Ultra320/160 SCSI Drive Bays w/ SAF-TE, using Supermicro
Super P4DPR-6GM+
Motherboard and SC812S-400 Rackmount Chassis
Product SKU |
|
---|---|
SYS-6012P-6 | • SuperServer 6012P-6 (Beige) |
SYS-6012P-6B | • SuperServer 6012P-6B (Black) |
Motherboard |
|
---|---|
Super P4DPR-6GM+ |
Processor/Cache |
|
---|---|
CPU | • Dual mPGA603 ZIF Sockets |
System Bus | • 400MHz system bus |
System Memory |
|
---|---|
Memory Capacity |
• Four 184-pin DIMM 25° sockets • Supports up to 8 GB DDR200 memory • Dual channel memory bus • Memory must be populated in pairs |
Memory Type | • DDR266/200 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
On-Board Devices |
|
---|---|
Chipset | • Intel® E7500 chipset |
SCSI | • Adaptec AIC-7899W Controller • Dual-Channel Ultra160 SCSI |
RAID | • Support for Zero-Channel RAID w/ Adaptec 2005S ZCR Card (Card NOT included) |
IPMI | • Support for Intelligent Platform Management Interface v.1.5 (Optional) |
Network Controllers | • 1x Intel® 82544 Gigabit Ethernet • 1x Intel® 82550 10/100 Ethernet • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
Graphics | • ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
Expansion Slots |
|
---|---|
• 1x full-height, full-length 64-bit 133/100MHz PCI-X expansion slot (Riser card required) w/ VXB (Virtual Extended Bus) slot • 1x low-profile 64-bit 66MHz PCI-X expansion slot (Riser card required) |
Input/Output |
|
---|---|
IDE | • Dual EIDE channels support up to four UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
USB | • Up to 5 USB ports |
Serial Ports | • 2 Fast UART 16550 serial ports |
Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support |
Keyboard / Mouse | • PS/2 keyboard and mouse ports |
System Bios |
|
---|---|
Bios Type | • 4Mb Flash EEPROM with Phoenix® BIOS |
Bios Features | • Plug and Play (PnP)
|
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • SC812S-400 |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 16.8" (426mm) |
Depth | • 25.6" (650mm) |
Weight | • 35 lbs (15.9 kg) |
Available Color | • Beige,Black |
Front Panel |
|
---|---|
Buttons | • Power On/Off button |
LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED |
Ports | • 2x USB Ports (2.0 ready) • 1x RJ45 COM Port |
Drive Bays |
|
---|---|
Hot-swap | • 3 x 3.5" hot-swap Ultra320/160 SCSI Drive Bays w/ SAF-TE |
SCSI Backplane |
|
---|---|
• 1x SCA812 1U SCSI Backplane w/ SAF-TE |
System Cooling |
|
---|---|
Fans | • 2x 10cm blower fans |
Power Supply |
|
---|---|
400W AC power supply with PFC | |
AC Voltage | • 100 - 240V, 50/60Hz, 8 Amp |
DC Output | • 5V + 3.3V ≤ 200W |
+5V | • 30.0 amp |
+5V stand by | • 2.0 Amp |
+12V | • 26 Amp |
-12V | • 10 Amp |
+3.3V | • 30 Amp |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5, ±12V, 3.3V Standby |
FAN | • Total of seven 3-pin fan headers |
Temperature | • Monitoring for CPU, chassis, environment • CPU thermal trip support |
LED | • CPU Overheat LED • System Overheat LED • Suspend-state indicator LED |
Other Features | • Chassis intrusion detection |
