SuperServer SYS-5017P-TLN4F

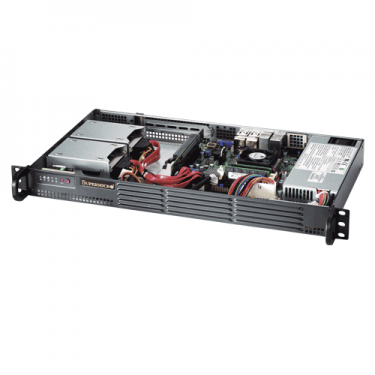

Supermicro 5017P-TLN4F 1U Rackmount SuperServer Barebone
Product SKU |
|
|---|---|
| SYS-5017P-TLN4F | • SuperServer 5017P-TLN4F (Black) |
Motherboard |
|
|---|---|
| Super X9SPV-LN4F-3QE | |
Processor/Cache |
|
|---|---|
| CPU | • Embedded 3rd Gen. Intel® Core i7-3612QE Mobile ECC processor (up to 3.1GHz, 6M Cache) |
System Memory |
|
|---|---|
| Memory Capacity |
• 2x 204-pin DDR3 SODIMM slots • Supports up to 16 GB DDR3 ECC memory |
| Memory Type | • 1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 8GB, 4GB, 2GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® QM77 Chipset |
| SATA | • SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
| Network Connectivity | • Intel® 82574L Gigabit Ethernet controllers 4x Gigabit LAN ports |
| Graphics | • Intel Integrated Graphics HD 4000 or Matrox G200eW to VGA via BIOS setup |
Input/Output |
|
|---|---|
| SATA | • 2x SATA 3.0 ports (6Gbps) |
| LAN |
• 4x RJ45 LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 4x USB 3.0 ports (via header) • 6x USB 2.0 ports (4 rear, 2 via header) |
| VGA | • 1x VGA port |
| Serial Port/Header | • 2 COM ports (1 rear, 1 header) |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-504-203B |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 9.8" (249mm) |
| Gross Weight | • 12 lbs (5.44 kg) |
| Available Colors | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power LED • Hard drive activity LED • 4x Network activity LEDs • System Overheat LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 1x PCI-E 3.0 x16 slot** |
Drive Bays |
|
|---|---|
| HDD | • 2x 3.5" or 4x 2.5" internal SATA2 hard drive bays (optional) * |
Power Supply |
|
|---|---|
| 200W Low Noise AC-DC power supply with PFC | |
| AC Voltage | • 100 - 240V, 50-60Hz, 2.6 Amp Max |
| +5V | • 8.0 Amp (max.) |
| +5V standby | • 2.0 Amp (max.) |
| +12V | • 16 Amp (max.) |
| -12V | • 0.5 Amp (max.) |
| +3.3V | • 8.0 Amp (max.) |
| Certification | • Gold Certified |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
