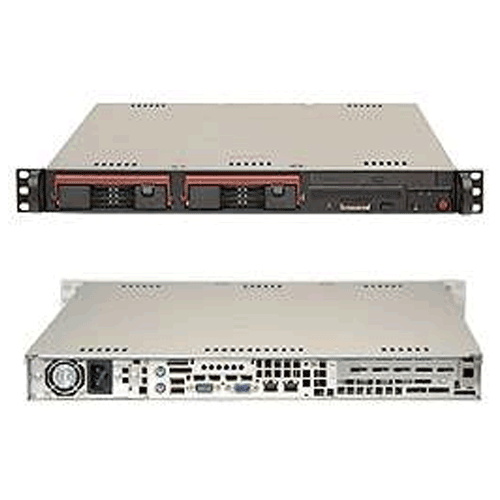

Supermicro SYS-5015B-T / SYS-5015B-TB 1U Rackmount with Intel® 3210 chipset, 2x 3.5"SATA Hot-swap drive bays, using Super X7SBi and SC811TQ-260Rackmount Chassis
Product SKU |
|
---|---|
SYS-5015B-TB | • SuperServer 5015B-TB (Black) |
SYS-5015B-T | • SuperServer 5015B-T (Beige) |
Motherboard |
|
---|---|
Super X7SBi |
Processor/Cache |
|
---|---|
CPU | • Single LGA775 ZIF Socket |
System Bus | • 1333 / 1066 / 800 MHz system bus |
System Memory |
|
---|---|
Memory Capacity |
• Four 240-pin DIMM sockets • Supports up to 8 GB of memory (Dual Channel) |
Memory Type | • DDR2 800/667 MHz unbuffered, ECC SDRAM, 240-pin gold-plated DIMMs |
DIMM Sizes | • 256 MB, 512 MB, 1 GB, 2GB, 4GB |
Memory Voltage | • 1.8V only |
On-Board Devices |
|
---|---|
Chipset | • Intel 3210 chipset |
Serial ATA | • Intel® ICH9R SATA2 (3 Gbps) controller built-in • RAID 0, 1, 5, 10 support (Windows Only) • RAID 0, 1, 10 support (Linux) |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 NOTE: AOC-SIMSO+ must use Dedicated LAN for KVM-over-LAN function |
Network Controllers | • 2x Single-port Gigabit PCI-Express Ethernet Controllers • Intel® 82573V + Intel® 82573L • Supports 10BASE-T, 100BASE-T, 1000BASE-T, RJ45 output |
VGA | • On-board ATI ES1000 (32MB) graphics |
Super I/O | • Winbond 83627DHG chip |
Clock Generator | • CK505 |
Expansion Slots |
|
---|---|
PCI-Express | • 1 Universal (x8) PCI-e slot OR 1 64-bit PCI-X 133 Slot |
Input/Output |
|
---|---|
Serial ATA | • Six Serial ATA ports (3 Gbps performance) • Two SATA hard drives supported • External SATA supported |
IDE | • One EIDE channel supports up to two UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
LAN | • 2x RJ45 LAN ports |
USB | • Up to 8x USB 2.0 / 1.1 compliant ports • 2 rear ports • 4 internal headers + 2 on-board |
VGA | • 1x VGA port |
Keyboard / Mouse | • PS/2 keyboard and mouse ports |
Serial Port / Header | • 1x Fast UART 16550 serial port |
Parallel Port | • 1x ECP / EEP Parallel Port |
System Bios |
|
---|---|
Bios Type | • 8MB Flash EEPROM with Phoenix BIOS® |
Bios Features |
• Plug and Play (PnP) |
Chassis |
|
---|---|
Form Factor | • 1U Rackmount |
Model | • SC811TQ-260 |
Dimension and Weight |
|
---|---|
Height | • 1.7" (43mm) |
Width | • 16.8" (426.7mm) |
Depth | • 22.6" (574mm) |
Weight | • 34 lbs (15.4kg) |
Available Color | • Beige,Black |
Front Panel |
|
---|---|
Buttons | • Power On/Off button |
LEDs | • Power Status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED |
Ports | • none |
Drive Bays |
|
---|---|
Hot-swap | • 2x 3.5"SATA Hot-swap drive bays |
Peripheral Drives |
|
---|---|
CD-ROM | • TEAC Slim 24x CD-ROM drive |
SATA Backplane |
|
---|---|
• 1x 1U Serial ATA backplane |
System Cooling |
|
---|---|
Fans | • 2x 10cm 4200 RPM blower fans |
Power Supply |
|
---|---|
Thermal control 260W AC power supply with PFC [ 24-pin, 4-pin=12V, (2) 4-pin ] | |
AC Voltage | • 100 - 240V, 60-50Hz, 4 Amp Max |
DC Output | • 5V + 3.3V ≤ 140W |
+5V | • 25 Amp |
+5V standby | • 2.0 Amp |
+12V | • 18.0 Amp |
-12V | • 1.0 Amp |
+3.3V | • 15 Amp |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores ( +1.8V, +3.3V, +5, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset) • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.3750V-1.6000V • Adjustable CPU clock frequency ratio |
FAN | • Total of six 4-pin fan headers • 6x fans with tachometer monitoring • Status monitor with firmware / software speed control • Status monitor for on/off control • Support 3-pin fans (without speed control) • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors |
Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Monitor (TM2) Support • PECI |
LED | • CPU / System Overheat LED • +5V Standby alert LED |
Other Features | • Chassis intrusion detection • Chassis intrusion header |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant 5/6 |
Environmental Spec. | • Operating Temperature:
10°C to 40°C (50°F to 104°F)
|
